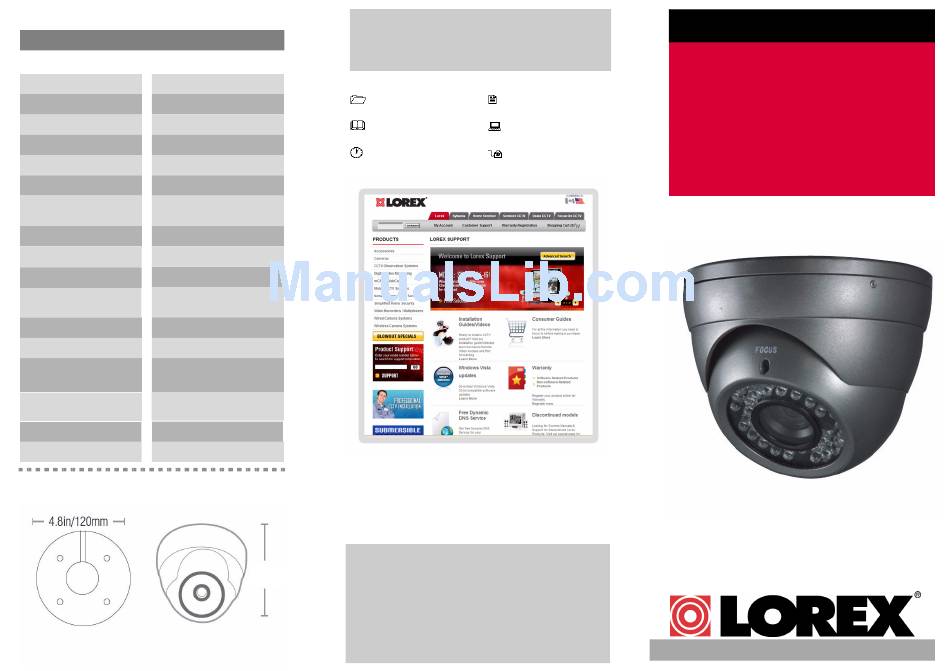

Lorex VQ1636HRB Quick Start Manual

Camera Specifications
Specfications:
Image Sensor 1/4" AIS
Video Format / Pixels NTSC: 656 (H) x 492 (V)
Horizontal Resolution 480 TVL
Internal; 2:1 Interlace
Sync. & Scan. Systems
S/N Ratio > 48dB
Iris & Shutter Speed AES; 1/60 ~ 1/50,000 sec.
Minimum Illumination 0.5 LUX @ F1.2 (IR Off)
0 LUX (IR LEDs ON)
IR Range Up to 82 ft (25 m); 36 LEDs
Video Output Comp. 1.0 Vpp @ 75ohm
4~9 mm F1.6/ Varifocal
Lens / Lens Mount
30~65 Degrees
FOV (diagonal)
Termination Video: BNC Female
Power Requirement 12V DC ±10%
Power Consumption 300mA max
Operating Temp. 14°F ~ 122°F
(-10°C ~ 50°C)
Dimensions DIA: 4.8" (120 mm)
Weight 1.55 lbs /703 g
Dimensions
It's all on the Web!
Product Information
User Manuals
Quick Start Guides
VISIT:
www.lorexcctv.com
Lorex Technologies Inc.
3.5in/
Copyright © 2008 Lorex Technologies Inc.
90mm
As our products are subject to continuous
improvement, Lorex reserves the right to
modify product design, specifications and
prices, without notice and without incurring
any obligation. E&OE
Specification Sheets
Software Upgrades
Firmware Upgrades
PROFESSIONAL
VARIFOCAL
SURVEILLANCE DOME
CAMERA
Day/Night, Weatherproof, Vandal
Resistant, Advanced Image Sensor
MODEL: VQ1636HRB

QUICK START GUIDE

English Version 1.0
