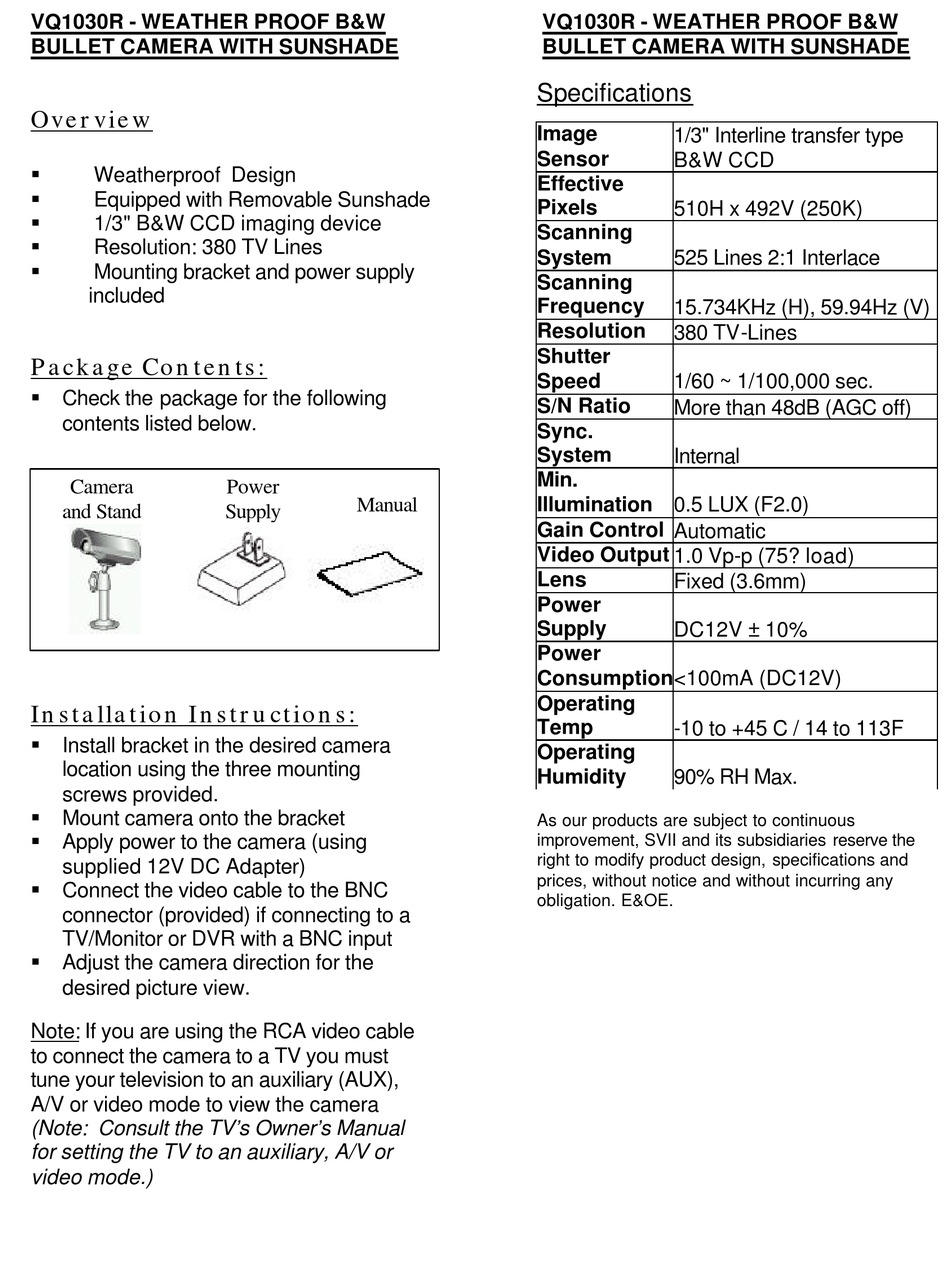

Lorex VQ1030R Installation Instructions

VQ1030R - WEATHER PROOF B&W
BULLET CAMERA WITH SUNSHADE
Overview
§
Weatherproof Design
§
Equipped with Removable Sunshade
§
1/3" B&W CCD imaging device
§
Resolution: 380 TV Lines
§
Mounting bracket and power supply
included

Package Contents:

§ Check the package for the following
contents listed below.
Camera
and Stand

Installation Instructions:

§ Install bracket in the desired camera
location using the three mounting
screws provided.
§ Mount camera onto the bracket
§ Apply power to the camera (using
supplied 12V DC Adapter)
§ Connect the video cable to the BNC
connector (provided) if connecting to a
TV/Monitor or DVR with a BNC input
§ Adjust the camera direction for the
desired picture view.
Note: If you are using the RCA video cable
to connect the camera to a TV you must
tune your television to an auxiliary (AUX),
A/V or video mode to view the camera
(Note: Consult the TV's Owner's Manual
for setting the TV to an auxiliary, A/V or
video mode.)
Power
Manual
Supply
VQ1030R - WEATHER PROOF B&W
BULLET CAMERA WITH SUNSHADE

Specifications

1/3" Interline transfer type
Sensor
B&W CCD
Effective
Pixels
510H x 492V (250K)
Scanning
System 525 Lines 2:1 Interlace
Scanning
Frequency
15.734KHz (H), 59.94Hz (V)
Resolution
380 TV-Lines
Shutter
Speed 1/60 ~ 1/100,000 sec.
S/N Ratio
More than 48dB (AGC off)
Sync.
System
Internal
Min.
Illumination 0.5 LUX (F2.0)
Gain Control Automatic
Video Output 1.0 Vp-p (75? load)
Lens
Fixed (3.6mm)
Power
Supply
DC12V ± 10%
Power
Consumption<100mA (DC12V)
Operating
Temp
-10 to +45 C / 14 to 113F
Operating
Humidity 90% RH Max.
As our products are subject to continuous
improvement, SVII and its subsidiaries reserve the
right to modify product design, specifications and
prices, without notice and without incurring any
obligation. E&OE.
