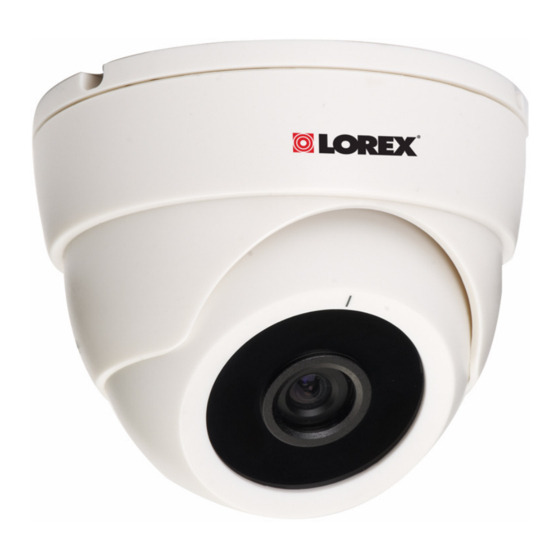

Lorex VANTAGE VQ1138H Series Quick Start Manual

Cable Extension Options
Extend the cable run for your camera up to 300ft or more
depending on the cable type used. See table below:
Max. # of
Max. Cable
Option Cable Type
Extensions
Run Distance
1 180ft / 55m
Regular BNC (sup-
plied with cam-
era)
2 Lorex 'RG59' or 300ft / 92m
'Coax' or ' Coax-
ial' BNC (sold
separately)
3 Lorex Universal 300ft / 92m
Cable
(sold separately)
Notes:
1. For optimal performance, consider using option 2 or 3. Preference for using
the same cable type for the entire distance.
2. Cable run recommendation based on typical camera power consumption
(up to 500mA). For specialty cameras with higher current consumption,
maximum cable run may be reduced. Consider providing power to the
camera at the camera side rather then at the end of the extension cable.
3. Indicators that your cable run may be too long:
• Video is permanently Black & White (even during day time)
• Video is distorted
Troubleshooting
Problem Solution
No Picture/Signal • Ensure your TV is on the correct input channel.
Common terms of an input channel: INPUT,AV
CHANNEL, LINE1, LINE2, AUX.
• If your camera is connected to a VCR/DVR,
ensure it is properly connected to your TV/
Monitor.
• Ensure connections are properly connected.
• Ensure the camera power supply is plugged
in.
Picture is too bright • Ensure your camera isn't pointed directly at a
source of light (e.g sun or spot light).
• Move your camera to a different location.
Picture is too dark • If using during the day, the camera may not
be getting enough light. Adjust position of
camera as needed. Check the brightness and
contrast settings of the device your camera
connects to (TV/Monitor/DVR).
Picture is not clear • Check the camera lens for dirt, dust,
spiderwebs. Clean the lens with a soft, clean
cloth.
• Make sure that the cable run is within the
limitations specified in the section ' Cable
Extension Options'
BNC connection does • Use a BNC to RCA adapter at the end of the
not connect to my TV extension cable.
Camera Specifications
Image Sensor
Video Format / Pixels
Horizontal Resolution
3
Minimum Illumination
5
Field of View (diagonal)
Lens / Lens Mount
3
Video Output
Environmental Rating
Termination
Operating Temperature
Power Requirement
Power Consumption
IR / Night Vision Range
Weight
*Not for outdoor use.
**This camera does not have IR LEDs. However, this camera supports low light viewing
with the help of external lighting.
Product Information
User Manuals
Quick Start Guides
Lorex Technologies Inc.
Copyright © 2011 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product design,
specifications and prices, without notice and without incurring any obligation. E&OE
High Resolution 1/4" Sensor
NTSC:656(H)×492(V)
480 TVL
0.5 LUX
70 Degrees
3.6 mm F2.0 / Fixed
Comp. 1.0 Vpp @ 75ohm
Indoor only*
Video: BNC Female
Power: Barrel Female
14°F ~ 122°F
(-10°C ~ 50°C)
12V DC ±10%
75 mA
N/A**
0.44lbs. / 0.2 kg
IT'S ALL ON THE WEB!
www.lorextechnology.com
Specification Sheets
Software Upgrades
Firmware Upgrades
SECURITY CAMERA
QUICK START GUIDE
English Version 1.0
VQ1138H Series
