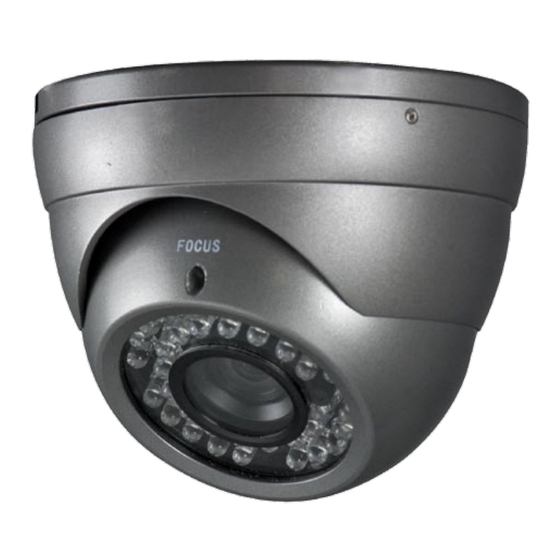

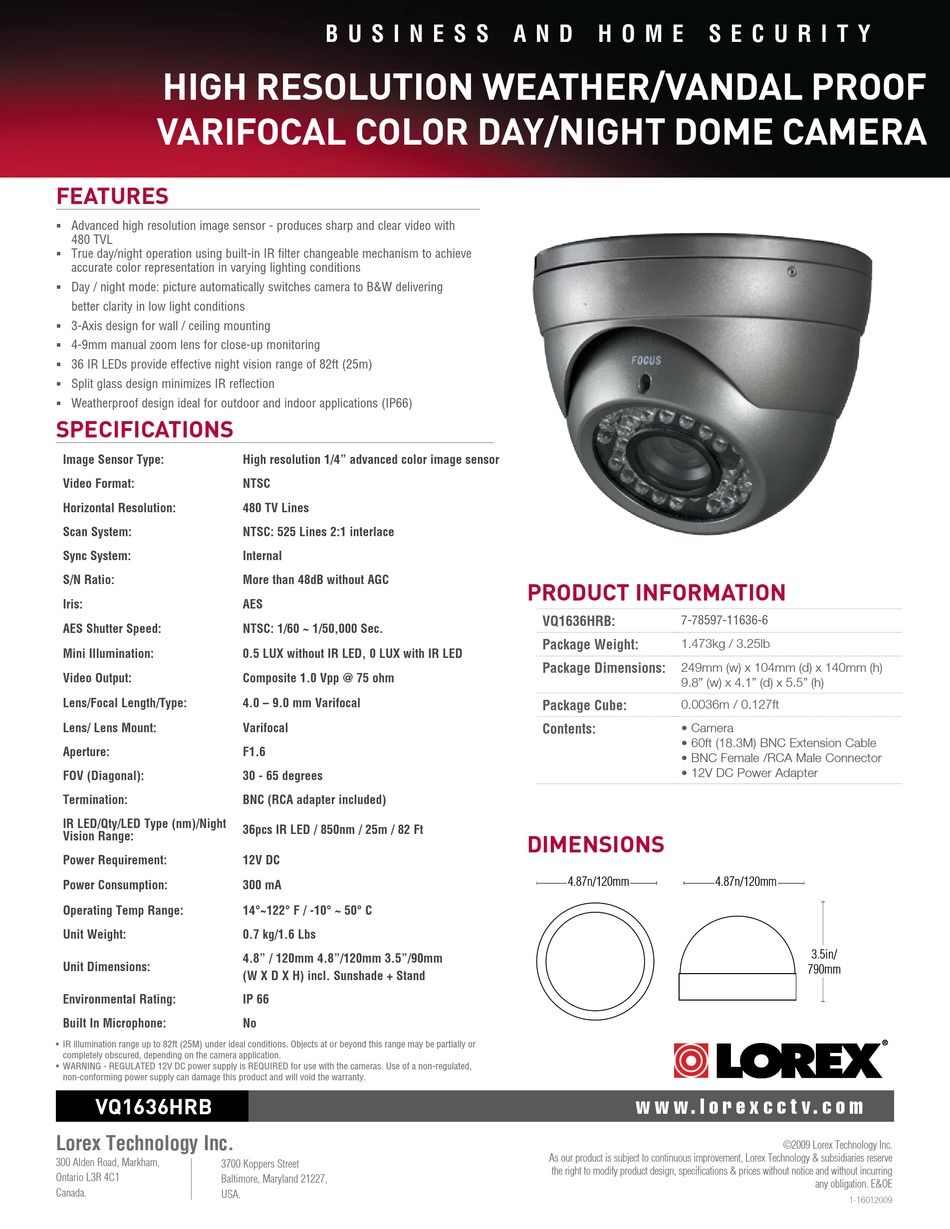

Lorex VQ1636HRB Specifications

HigH Resolution WeatHeR/vandal pRoof
vaRifoCal ColoR day/nigHt dome CameRa
featuRes
Advanced high resolution image sensor - produces sharp and clear video with
ß
480 TVL
True day/night operation using built-in IR filter changeable mechanism to achieve
ß
accurate color representation in varying lighting conditions
Day / night mode: picture automatically switches camera to B&W delivering
ß
better clarity in low light conditions
3-Axis design for wall / ceiling mounting
ß
4-9mm manual zoom lens for close-up monitoring
ß
36 IR LEDs provide effective night vision range of 82ft (25m)
ß
Split glass design minimizes IR reflection
ß
Weatherproof design ideal for outdoor and indoor applications (IP66)
ß

speCifiCations

Image Sensor Type:
Video Format:
Horizontal Resolution:
Scan System:
Sync System:
S/N Ratio:
Iris:
AES Shutter Speed:
Mini Illumination:
Video Output:
Lens/Focal Length/Type:
Lens/ Lens Mount:
Aperture:
FOV (Diagonal):
Termination:
IR LED/Qty/LED Type (nm)/Night
Vision Range:
Power Requirement:
Power Consumption:
Operating Temp Range:
Unit Weight:
Unit Dimensions:
Environmental Rating:
Built In Microphone:
• IR illumination range up to 82ft (25M) under ideal conditions. Objects at or beyond this range may be partially or
completely obscured, depending on the camera application.
• WARNING - REGULATED 12V DC power supply is REQUIRED for use with the cameras. Use of a non-regulated,
non-conforming power supply can damage this product and will void the warranty.
vQ1636HRB
Lorex Technology Inc.
300 Alden Road, Markham,
3700 Koppers Street
Ontario L3R 4C1
Baltimore, Maryland 21227,
Canada.
USA.
B U S I N E S S A N D
High resolution 1/4" advanced color image sensor
NTSC
480 TV Lines
NTSC: 525 Lines 2:1 interlace
Internal
More than 48dB without AGC
AES
NTSC: 1/60 ~ 1/50,000 Sec.
0.5 LUX without IR LED, 0 LUX with IR LED
Composite 1.0 Vpp @ 75 ohm
4.0 – 9.0 mm Varifocal
Varifocal
F1.6
30 - 65 degrees
BNC (RCA adapter included)
36pcs IR LED / 850nm / 25m / 82 Ft
12V DC
300 mA
14°~122° F / -10° ~ 50° C
0.7 kg/1.6 Lbs
4.8" / 120mm 4.8"/120mm 3.5"/90mm
(W X D X H) incl. Sunshade + Stand
IP 66
No
H O M E S E C U R I T Y

pRoduCt infoRmation

VQ1636HRB: 7-78597-11636-6
Package Weight: 1.473kg / 3.25lb
Package Dimensions:
249mm (w) x 104mm (d) x 140mm (h)
9.8" (w) x 4.1" (d) x 5.5" (h)
Package Cube:
0.0036m / 0.127ft
Contents: • Camera
• 60ft (18.3M) BNC Extension Cable
• BNC Female /RCA Male Connector
• 12V DC Power Adapter
dimensions
4.87n/120mm
w w w . l o r e x c c t v . c o m
As our product is subject to continuous improvement, Lorex Technology & subsidiaries reserve
the right to modify product design, specifications & prices without notice and without incurring
4.87n/120mm
3.5in/
790mm
©2009 Lorex Technology Inc.
any obligation. E&OE
1-16012009
