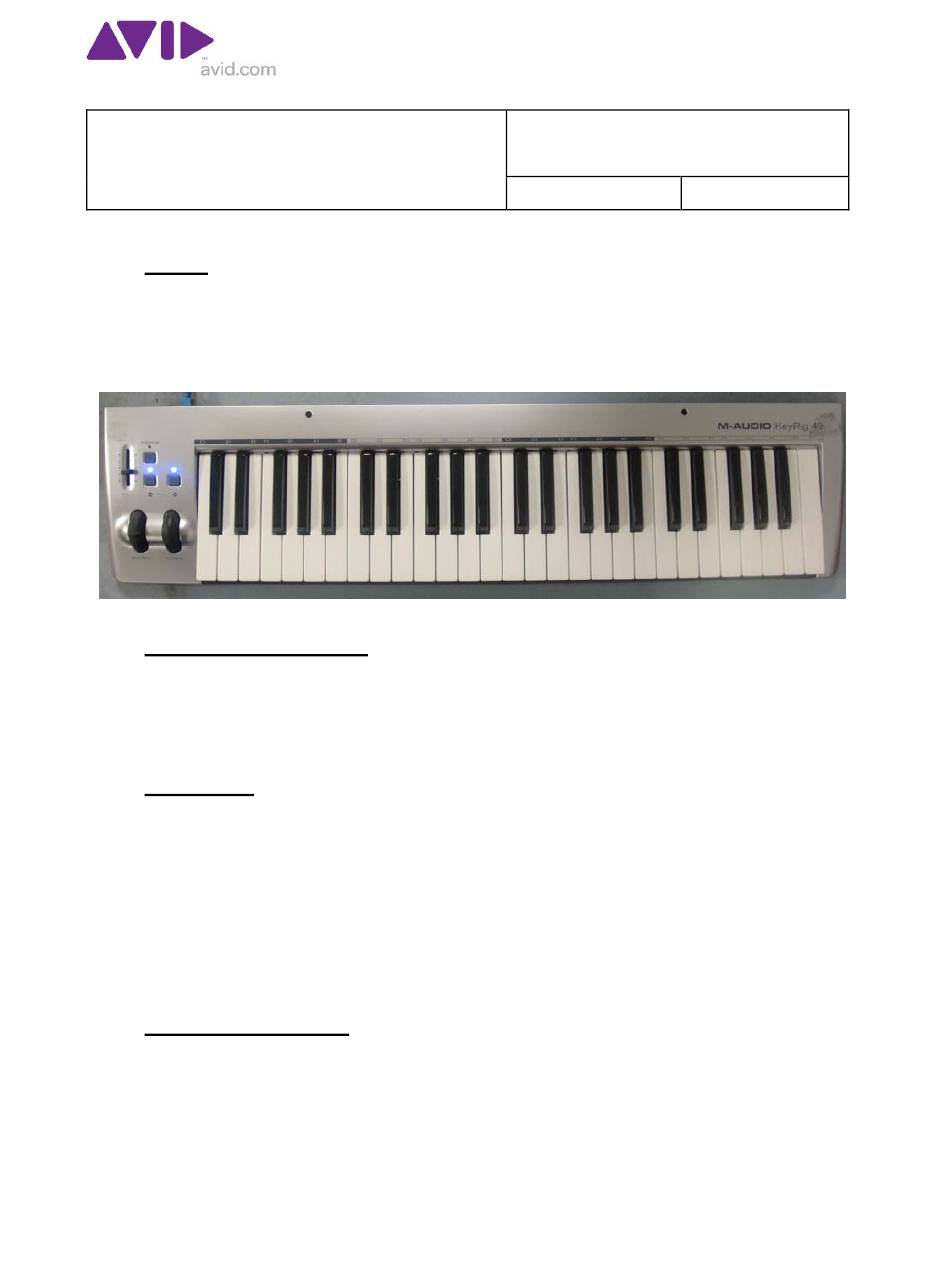

Avid Technology KeyRig 49 Procedure

Title

KeyRig 49 Testing Procedure

1.0 Scope

This procedure defines the method required to test:

• 9900-52239-10 KeyRig 49 – No Power

• 8250-10009-31 KeyRig 49 – No Power - ROHS

2.1 M-Audio Dealer Check in sheet

2.2 M-Audio Scrap log

2.3 M-Audio RTV Log

3.1 Software (Midi OX)

3.2 Midi cable x2

3.3 Oxygen 8v2

3.4 MIDISPORT 2x2

3.5 SP-2 sustain pedal

4.1 The KeyRig 49 needs to be in the "like new" state: all buttons

released, in the up position, all knobs turned to the left, and the

product turned OFF.

4.2 The KeyRig 49 is OFF.

UNCONTROLLED DOCUMENT when printed or copied

Form: 0150-30027-01 Rev C

Procedure P/N

Revision:

Date Printed: 3/16/2010

PROCEDURE

1069-65019-00

Page 1 of 4

Table of Contents

Do you have a question about the KeyRig 49 and is the answer not in the manual?

Page 1 3.4 MIDISPORT 2x2 3.5 SP-2 sustain pedal 4.0 Process Description 4.1 The KeyRig 49 needs to be in the “like new” state: all buttons released, in the up position, all knobs turned to the left, and the product turned OFF.
Page 2 4.4 Connect the KeyRig to the computer with a USB cable. 4.5 Press and hold the 2 Octave buttons on the front left of the KeyRig while powering on the unit to reset the KeyRig 49. The 2 blue lights above the Octave buttons should come on.
Page 3 1069-65019-00 Page 3 of 4 Revision: 4.8 In MIDI Devices – in the MIDI Inputs field, select 1) KeyRig 49 In. 4.9 In the MIDI Outputs field, select 2) Microsoft GS Wavetable SW Synth. 4.10 In the Port Mapping field, it should display Microsoft GS Wavetable SW Synth.
Page 4 PROCEDURE Title Procedure P/N KeyRig 49 Testing Procedure 1069-65019-00 Page 4 of 4 Revision: UNCONTROLLED DOCUMENT when printed or copied Date Printed: 3/16/2010 Form: 0150-30027-01 Rev C...
