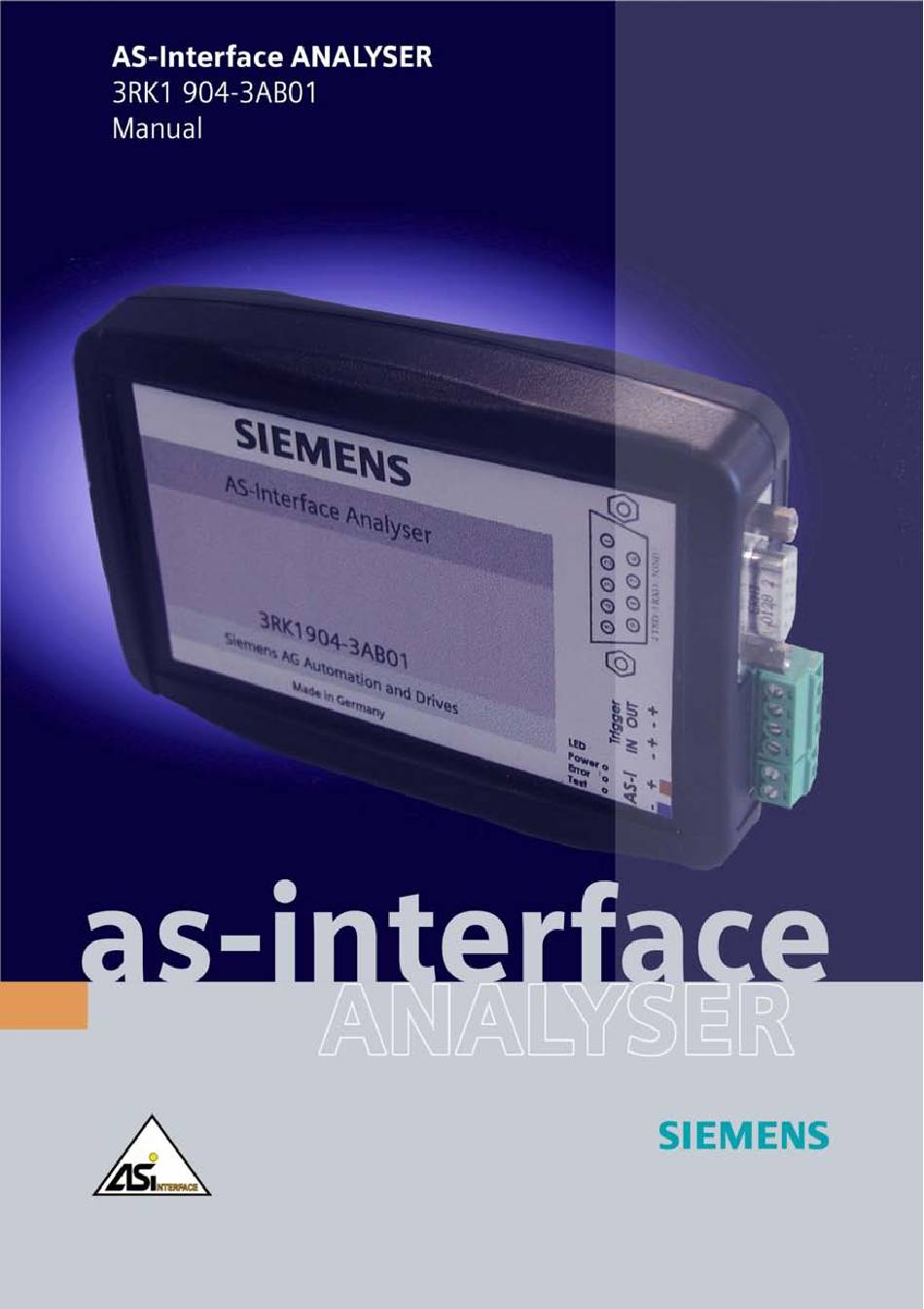

Siemens as-interface ANALYSER 3RK1 904-3AB01 Manual
  1. Manuals
  2. Brands
  3. Siemens Manuals
  4. Measuring Instruments
  5. as-interface ANALYSER 3RK1 904-3AB01
  6. Manual

Siemens as-interface ANALYSER 3RK1 904-3AB01 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Siemens as-interface ANALYSER 3RK1 904-3AB01

Summary of Contents for Siemens as-interface ANALYSER 3RK1 904-3AB01

  • Page 2: Table Of Contents

    Internal Trigger ....................28 5.7.4.2 External Trigger ....................30 Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 3 We Are Interested in Your Opinion! ..........46 Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 4: The Symbols Used

    This symbol draws the user's attention to important information. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 5: Safety

    The operator is responsible for the observance of local safety stan- dards. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 6: The As-Interface Analyser

    "errors". Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 7 AS-Interface knowledge can use the analyser. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 8: Quick Start

    Analyser is put back by pushing the "Clear all" button. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 9: Index Card: Overview With Hold Time

    With the call of the "Safety Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 10 Monitor" an evaluation of the data telegrams of the safety related slaves is started. For details see chapter 5.7.9. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 11: Functions Of The Analyser

    The user has to consider this evaluating the results. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 12 Simplified block diagram of the hardware. It shows the 3 pathways of the analyser control. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 13: Installation

    The analyser begins to store data directly after being attached to the Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 14: Overview

    "Clear All" button. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 15: Overview With Hold Time

    The "Advanced Statistics" shows quantitatively, how frequently repetitions of the data calls were necessary. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 16: Consecutive Errors

    (slave 19 in fig. 5). So the analyser makes a new im- Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 17 With the mouse pointer the distribution on 6 classes can be made visible: Slave 10 is failed once completly. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 18: Configuration

    2.0. Older masters do not call ID1 and ID2. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 19: Online Statistics Without Notebook

    Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 20: Logging Of The Online Statistics

    The data from the analyser are protected (fig. 7). Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 21 Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 22: Offline Statistics

    I1, I2, I3 and the output data O0, O1, O2, O3. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 23 In fig.8 the values for the slaves for 4A and 4B are 1 and/or 0. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 24: Analog I/O Data

    Output module Sl. 10: Channel 0 7,121 V Channel 1 -0,051 V Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 25: Safety Data

    • whether you want to use different trigger options (trigger mask), Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 26 It is missing in the existing network. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 27: Contents Of A Trace

    PC can be aborted in this win- progress. dow at any time. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 28: Trace With Trigger

    (that corresponds to a logical OR- conjunction within these ranges). Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 29 • You can get the current list of the slaves over the button "Get Slave List" if you have already made a statistics measurement. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 30: External Trigger

    If an internal and an external trigger condition are adjusted, then the trigger Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 31: Trigger Output

    Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 32: Trace View Filter

    Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 33 ID codes nor the data calls to the decisive safety slaves. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 34: Storage And Offline Working On Traces

    Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 35: Valuation Of Errors

    (beside many green slaves) for hours in a net which is, nevertheless, not "notice- able" in a different way. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 36: More Critical Networks

    That applies also to the relevant times Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 37 (see text). Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 38: Using The Analyser

    So the actual state of the net is precisely documented. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 39: Error Diagnostics In The Network

    Due to the functional principle of the analyser it cannot identify the Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 40: Error By Bad Contact

    6 only. In the trace lines like 6509f, 6515ff and 6523f shown in fig. 17 Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 41: Errors By Excess Length Or By High-Capacity Slaves

    Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 42: Control Of Corrective Measures

    The analyser becomes here a tester of any communication situation in a heavily loaded or unloaded net or device. Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 43: Technical Data

    Software: AS-Interface Analyser Hardware: AS-Interface Analyser D-sub-transmission cord Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 44: Index

    Storage of traces 34 Facility description 20 Failure class 16 Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
  • Page 45 Trigger 13 Voltage 16 Trigger level 28 Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...

  • Page 46: We Are Interested In Your Opinion

    +49 911 895 59 07 eMail: technical-assistance@siemens.com Internet: http://www.siemens.com/lowvoltage/technical-assistance Subject to reasonable modifications due to technical advances. Printed in Germany SIEMENS AG · Low-Voltage Controls · Phone +49 911 895 59 00 · Fax +49 911 895 59 07 · Internet: http://www.siemens.com/lowvoltage/technical-assistance...
