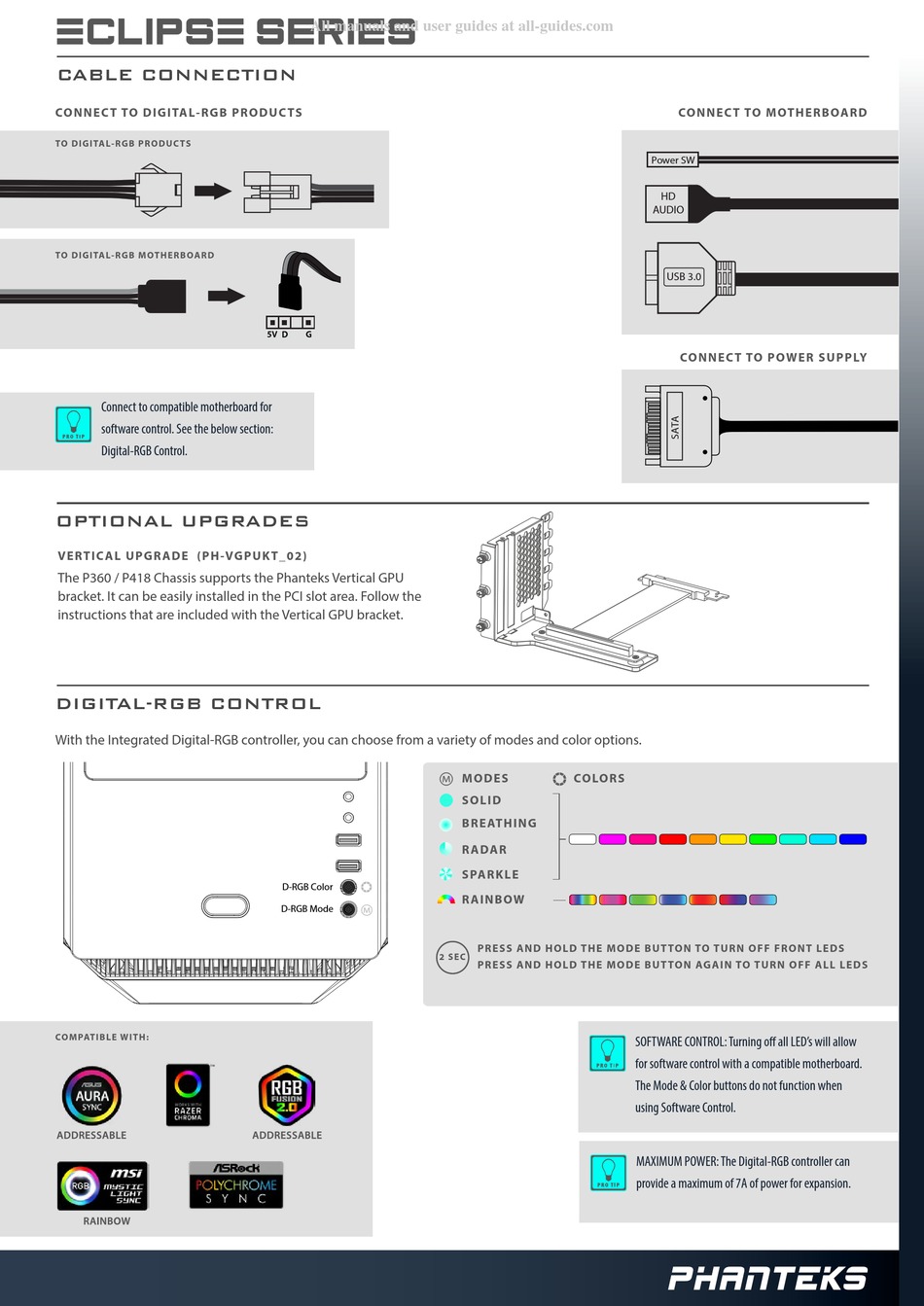

Phanteks Eclipse Series Installation Manual page 4

ECLIPSE series
CABLE CONNECTION
CO N NEC T TO DIG ITAL- RG B P RODUC TS
TO D I GI TAL-RG B P RO D U C TS
TO D I GI TAL-RG B M OT HE RB OA RD
Connect to compatible motherboard for
software control. See the below section:
Digital-RGB Control.
OPTIONAL UPGRADES
VE R TIC A L UPGR A DE ( P H -VGPUK T_02)
The P360 / P418 Chassis supports the Phanteks Vertical GPU
bracket. It can be easily installed in the PCI slot area. Follow the
instructions that are included with the Vertical GPU bracket.
DIGITAL-RGB CONTROL
With the Integrated Digital-RGB controller, you can choose from a variety of modes and color options.
CO M PAT IBL E W IT H :
All manuals and user guides at all-guides.com
D-RGB Color
D-RGB Mode
2 SEC
MO DE S COLOR S
SOLID
BREAT H IN G
R ADAR
SPARKLE
R AIN BOW
P RE S S A ND H OL D T H E M OD E B U T TON TO T U RN O FF F RO NT L E D S
P RE S S A ND H OL D T H E M OD E B U T TON AG AI N TO T U RN O F F A L L L ED S
SOFTWARE CONTROL: Turning off all LED's will allow
for software control with a compatible motherboard.
The Mode & Color buttons do not function when
using Software Control.
CONNE C T TO M OTH E RBOA RD
Power SW
HD
AUDIO
USB 3.0
CON NE C T TO POW E R SUPPLY
MAXIMUM POWER: The Digital-RGB controller can
provide a maximum of 7A of power for expansion.
