- Page 1 Body Composition Analyzer USER MANUAL U310/B310 Please keep the instruction manual at hand all the time for future reference.
- Page 2 Reliable｜Precise｜Easy-to-use...
- Page 3 Explanation of Text/Symbols on Device Label/Packaging Text/Symbol Meaning Caution, consult accompanying documents before Separate collection for waste of electrical and electronic equipment, in accordance with Directive 2002/96/EC. Do not dispose of device with everyday waste Name and address of device manufacturer, and year/country of manufacture Carefully read user manual before installation and usage, and follow instructions for use.
- Page 4 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 5: Table Of Contents
Ⅲ. Assembly ..............11 A. Insert Batteries ............. 11 B. Using Adapter ............11 Ⅳ. Screen ..............12 A. LCD Indicator (U310) ..........12 B. LCD Indicator (B310) ..........13 Ⅴ. Conducting Measurement ..........14 Ⅵ. Measurement Results Explained .........18 Ⅶ. Measurement Guidelines ........... 21 Ⅷ. -
Page 7: Ⅰ. Safety Notes
Results should be used for reference only General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.Before beginning operation of the device, please read this user... - Page 8 Using Adapter Only the original adapter should be used with the device. Using an adapter other than the one provided by Charder may cause malfunction Do not touch the power supply with wet hands. Use only a correctly wired (100-240VAC) outlet, and do not use a ...
- Page 9 conducted by an authorized Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. The device has an expected service life of 5 years when correctly ...
- Page 10 Further information should be provided by local waste disposal authorities. Caution Usage of Results The U310/B310 is not a diagnostic device. BIA results are calculated based on impedance values validated with representative population studies and statistical analysis. As...
-
Page 11: Emc Guidance And Manufacturer's Declaration
EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Electromagnetic Emission test Compliance... - Page 12 Guidance and manufacturer’s declaration-electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. Immunity IEC 60601 test Compliance Electromagnetic test level level...
- Page 13 Recommended separation distance between portable and mobile RF communications equipment and the Device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
-
Page 14: Ⅱ. Device Description

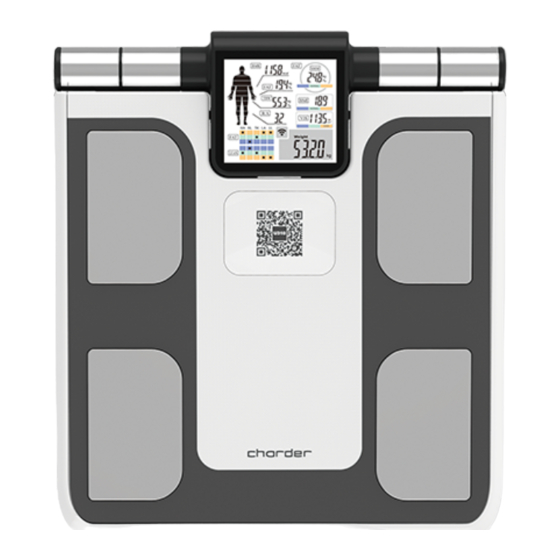

Ⅱ. Device Description LCD Screen Handles Electrodes Platform Adapter Port Non-adjustable feet Battery compartment cover... -
Page 15: Ⅲ. Assembly
Ⅲ. Assembly A. Insert Batteries Batteries should be inserted according to +/- marking Open battery compartment cover, and insert 4 AA 1.5V batteries. Place cover back in place. B. Using Adapter Insert adapter into port on the bottom of device: appears on LCD screen, please replace batteries or plug adapter into power outlet. -
Page 16: Ⅳ. Screen
Ⅳ. Screen A. LCD Indicator (U310) After measurement completion, results will be displayed on LCD screen briefly to indicate that measurement was successful. 1. BMR (Basal Metabolic Rate) 2. FAT 3. TBW (Total Body Water) 4. B.A (Body Age) 5. SMM (Skeletal Muscle Mass) 6. -
Page 17: Lcd Indicator (B310)
B. LCD Indicator (B310) After measurement completion, results will be displayed on LCD screen briefly to indicate that measurement was successful. 1. BMR (Basal Metabolic Rate) 2. SMM (Skeletal Muscle Mass) 3. TBW (Total Body Water) 4. B.A (Body Age) 5. -
Page 18: Ⅴ. Conducting Measurement
Ⅴ. Conducting Measurement The U310/B310 must be used with the Charder ProScan app. An iOS or Android device (with operational Bluetooth and Wi-Fi) is required to download the app and operate the product. Android Charder Proscan After installation of app, you must create an administrator profile as... - Page 19 A. Turn on Bluetooth and Location Bluetooth function must be turned on for device to connect to U310/B310. On some devices, Location must also be turned on for data transfer. B. Create user profile Press +Add new user and input the required user information (ID, Name, Birthday, Height, Gender) and press Save to create a new user profile, which can now be used to conduct measurement.
- Page 20 C. Conducting measurement 1. Select user account Select a user, and press icon below to enter measurement screen. 2. Pair with device Step onto platform to turn on product, and step off as it turns on and conducts auto-calibration. After calibration is complete, “0.00” will appear on LCD screen.
- Page 21 Step onto measurement platform’s foot electrodes with bare feet. Pick up hand electrodes and stand straight. Straighten arms, making sure they are not pressed against the side of the body. 4. Measurement Complete After measurement, LCD screen will briefly display results before sending data to Charder ProScan app.
-
Page 22: Ⅵ. Measurement Results Explained
Ⅵ. Measurement Results Explained 1. BMI (Body Mass Index) BMI is a commonly used index by the World Health Organization (WHO), utilizing height and weight to classify underweight, normal, over, and obesity in adults. Risk of obesity-related Category BMI (kg/m disease Under <... - Page 23 5. SMM (Skeletal Muscle Mass) Cardiac muscle, smooth muscle, and skeletal muscle are the three major muscle types found in the body. Skeletal muscle mass correlates with athletic performance, as it is under voluntary control and used to power movement. In addition, it can be developed actively through proper nutrition and training, thus making this value an important indicator for evaluation of fitness progression.
- Page 24 8. Body Age The app will compare your results with database to calculate your body age. 9. BMR (Basal Metabolic Rate) Basal Metabolic Rate is the minimum required energy to sustain the body's vital functions while at rest. These functions include breathing, blood circulation, regulation of body temperature, cell growth, brain function, and nerve function.
-
Page 25: Ⅶ. Measurement Guidelines
Ⅶ. Measurement Guidelines About Bioelectrical Impedance Measurement U310/B310 uses Bioelectrical Impedance Analysis (BIA) to calculate body composition. At its core, BIA operates by treating the human body as an electrical conductor within an alternating current circuit, from which the alternating current resistance and impedance is measured. - Page 26 3. Do not shower or bathe directly before measurement. Perspiration can result in a temporary change in body composition measurements, as the accuracy of BIA depends largely upon interpretation of measured impedance values, which are affected greatly by hydration levels. 4.
-
Page 27: Ⅷ. Settings
Ⅷ. Settings Press Settings at top right of home page to access App Settings, Manage Administrator Accounts, Find information, and Sign out. 1. Select App Settings to adjust the following: Unit switch (Metric / Imperial) Data format Language ... - Page 28 2. Select Manage Accounts to add/edit administrators. NOTE: currently selected account cannot be deleted 3. Website Link to Charder Medical website 4. Contact Us Contact Charder Medical via E-mail...
-
Page 29: Ⅸ. Troubleshooting
Ⅸ. Troubleshooting Before contacting your local Charder distributor for repair service, we recommend considering the following troubleshooting procedures: Self-inspection 1. Device will not power on If battery power is depleted, replace with new batteries If batteries are not used, check if the power adapter is plugged into ... - Page 30 Error Message Reason Action Low battery Replace batteries, or warning plug in adapter Voltage of battery is too low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Program Error Please restart device (unplug adapter and remove batteries).
-
Page 31: Ⅹ. Product Specifications
Ⅹ. Product Specifications A. Device Information Model Number U310/B310 Measurement Segmental Multi-frequency Bioelectrical Method Impedance Analysis Method 8 touch electrodes Frequency Type Dual Frequencies 5 kHz , 50 kHz Indicator 87.5*90mm LCD screen Capacity 200kg Graduation 0-100 kg / 0.05 kg ； 100-200 kg / 0.1 kg... -
Page 32: Measurement Results
B. Measurement Results Body Composition Analysis Weight, BMI (Body Mass Index), Visceral Fat Level (VIS/VFA), Percent Body Fat (PBF), Body Fat Mass (BFM), Skeletal Muscle Mass (SMM), Soft Lean Mass/Muscle Mass (SLM), Body Water (TBW), Body Age (BA), Basal Metabolic Rate (BMR), Bone Mineral Mass Segmental Muscle/Fat... - Page 33 Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized EU standards, following the provisions of the below stated directives: Electromagnetic Compatibility Directive 2014/30/EU Electromagnetic Compatibility Regulations 2016 RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863...
- Page 35 Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan CD-IN-00425 REV004 09/2022...
