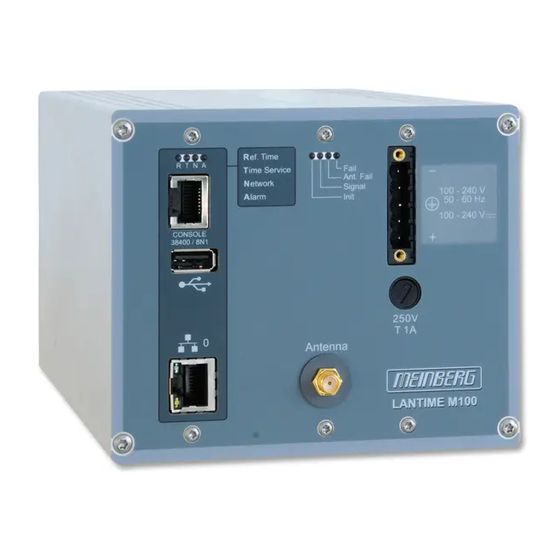

LANTIME M100: NTP Time Server with internal Reference Clock for DIN
Rail Installations
LANTIME M100 time servers can be installed to provide accurate time to small and medium sized computer
networks. This entry level time server synchronizes all systems either NTP- or SNTP-compatible utilizing a
built-in Meinberg radio clock as its primary reference time source. A stable and precise oscillator is capable of
bridging interferences or a temporary loss of reception. Its compact form factor offers an ideal solution to
network time synchronization needs in industrial and power generation/distribution networks.
Key Features
- Selectable Reference Sources:
Combined GPS/GLONASS/Galileo/BeiDou satellite receiver (L1 frequency band), can also be used for
mobile applications GNS-UC: GPS and Galileo Satellite Receiver with Up-Converter for Meinberg GPS
Antenna/Converter PZF: DCF77 correlation receiver for middle europe
- Synchronization of NTP and SNTP compatible clients
- Web-based status and configuration interface and console-based graphical configuration utility
- Supported net protocols: IPv4, IPv6, NTP, (S)NTP, DAYTIME, DHCP, HTTP, HTTPS, FTP, SFTP,
SSH, SCP, SYSLOG, SNMP, TIME, TELNET
- USB Port for installing firmware updates, locking frontpanel menu access and backup/restore of
configuration and log files
- Meinberg GPS Antenna/Converter Unit connected with up to 300m of standard coaxial cable RG58
rev 2022.1026.0953
GPS: Satellite receiver for the Global Positioning System GNS:
Page 1/4
Meinberg Radio Clocks
Lange Wand 9
31812 Bad Pyrmont, Germany
Phone: +49 (5281) 9309-0
Fax:
+49 (5281) 9309-30
https://www.meinbergglobal.com
info@meinberg.de
lantime-m100

Advertisement

loading
Need help?

Need help?

Do you have a question about the LANTIME M100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Meinberg LANTIME M100

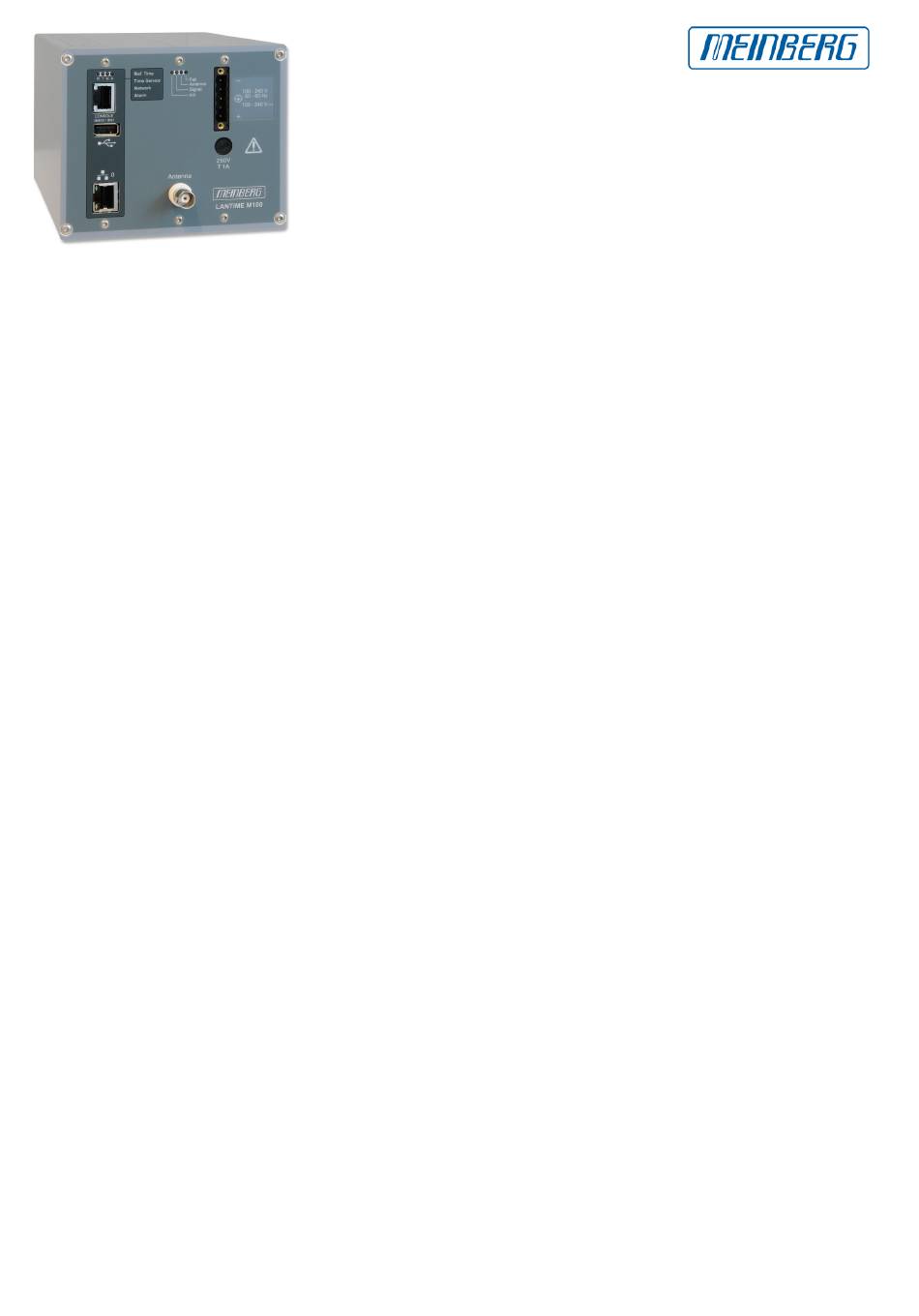

  • Page 1 LANTIME M100: NTP Time Server with internal Reference Clock for DIN Rail Installations LANTIME M100 time servers can be installed to provide accurate time to small and medium sized computer networks. This entry level time server synchronizes all systems either NTP- or SNTP-compatible utilizing a built-in Meinberg radio clock as its primary reference time source.
  • Page 2 Telnet or SSH. Initial configuration can be performed using the RS232 console port and a terminal program. The LANTIME M100/GPS is equipped with a high precision "TCXO" (oscillator option: up to "OCXO HQ"). Please check our oscillator options page for technical specifications. The oscillator determines the holdover characteristics (e.g. when the received signal is disturbed or jammed).
  • Page 3 0 ... 50 °C / 32 ... 122 °F Humidity Max. 85 % Contents of Shipment Included in delivery is a MEINBERG outdoor antenna incl. mounting kit, pre-assembled antenna cable, CAB-CONSOLE-RJ45 cable for initial setup and documentation on USB storage. Technical Support Meinberg offers free lifetime technical support via telephone or e-mail.
  • Page 4 WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
