TECHNICAL REFERENCE
LANTIME M100 GPS
Railmount NTP Server
5th April 2018
Meinberg Radio Clocks GmbH & Co. KG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANTIME M100 GPS and is the answer not in the manual?

Questions and answers

Summary of Contents for Meinberg LANTIME M100 GPS

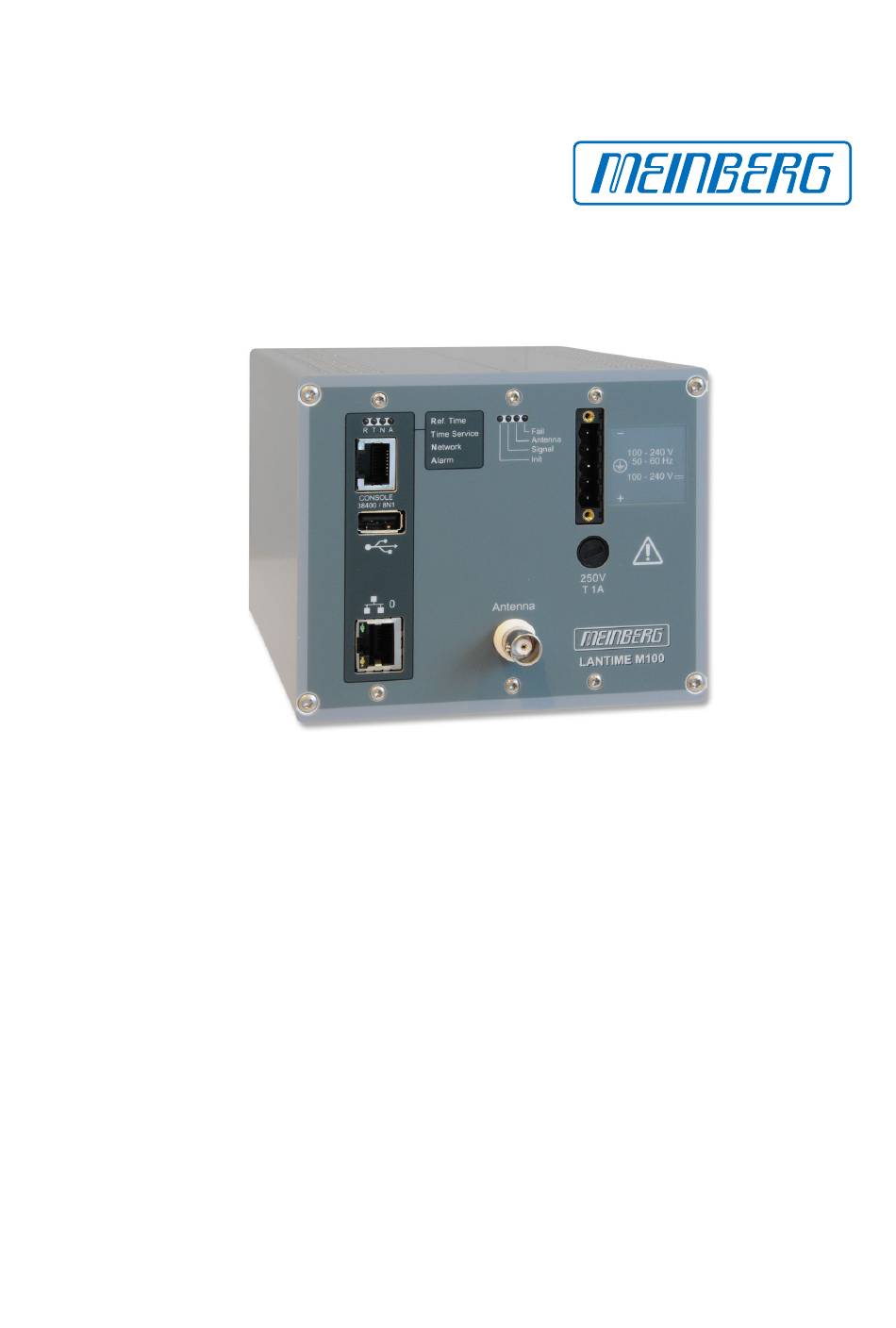

  • Page 1 TECHNICAL REFERENCE LANTIME M100 GPS Railmount NTP Server 5th April 2018 Meinberg Radio Clocks GmbH & Co. KG...
  • Page 3: Table Of Contents

    Antenna Short-Circuit ..........7 WEEE Compliance 8 Declaration of Conformity Date: 5th April 2018 LANTIME M100 GPS...
  • Page 4: Imprint

    1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com...
  • Page 5: Safety Instructions For Building-In Equipment

    • For safe operation the building-in equipment must be protected by max 16 A fuse in the power installation system. • Disconnection of the equipment from mains is done by pulling the mains plug. Date: 5th April 2018 LANTIME M100 GPS...
  • Page 6: Used Symbols

    This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. CE label This device follows the provisions of the directives 93/68/EEC LANTIME M100 GPS Date: 5th April 2018...
  • Page 7: Global Information Lantime M100/Gps

    After the network connection has been established the time server can also be configured and monitored remotely from a workstation via TELNET or FTP. An integrated web server enables access to the LANTIME by using an ordinary web browser. Date: 5th April 2018 LANTIME M100 GPS...
  • Page 8: Technical Specifications Lantime Chassis

    Consumption: Base configuration: 30 W (max. 50 W - depending on the integrated module options) Ambient Temperature: 0 ... 50 C Storage Temperature: -20 ... 70 Humidity: max. 85% (non-condensing) @ 30 C. LANTIME M100 GPS Date: 5th April 2018...

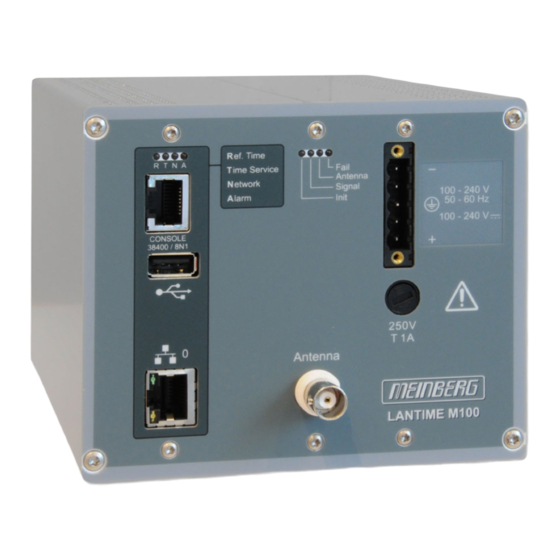

  • Page 9: M100 - Front Connectors

    "local clock" "Network" green: all monitored network interfaces are connected ("Link up") red: at least one of the monitored network interfaces is faulty "Alarm" off: no error red: general error Date: 5th April 2018 LANTIME M100 GPS...
  • Page 10: Power Connect

    1 Stopbit. The terminal emulation have to set to VT100. After connecting to the timeserver there will be displayed the login message (press RETURN for first connection: (default user: root; password: timeserver). LANTIME M100 GPS Date: 5th April 2018...
  • Page 11: Usb Port

    Power Requirements: 12V ... 18V, 100mA (via antenna cable) 5.6 10/100base-T Ethernet (IEEE 803.2) Link Speed: 10/100 MBit LAN x Connector Type: 8P8C (RJ45) Cable: CAT 5.0 Duplex Modes: Half/Full/Autonegotiaton 10 / 100M Date: 5th April 2018 LANTIME M100 GPS...
  • Page 12: Mounting The Gps Antenna

    RG213 10.5mm (1)This specifications are made for antenna/converter units produced after January, 2005 The values are typically ones; the exact ones are to find out from the data sheet of the used cable LANTIME M100 GPS Date: 5th April 2018...
  • Page 13: Antenna Assembly With Surge Voltage Protection

    N-Norm female Meinberg GPS N-Norm male N-Norm male female Ground lead to PE rail or BNC male female (Protective Earth) Cable ca. 1,5 mm Ø fastened at the surge protector Date: 5th April 2018 LANTIME M100 GPS...
  • Page 14: Antenna Short-Circuit

    In case of an antenna line short-circuit the following message appears in the display: If this message appears the clock has to be disconnected from the mains and the defect eliminated. After that the clock can be powered-up again. The antenna supply voltage must be 15V LANTIME M100 GPS Date: 5th April 2018...
  • Page 15: Weee Compliance

    Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. Date: 5th April 2018...
  • Page 16: Declaration Of Conformity

    8 Declaration of Conformity 8 Declaration of Conformity Konformitätserklärung Doc ID: LANTIME M100/GPS-2015-11-10 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product...
