Ingersoll-Rand ARO LM2250E-B3 Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING.
INCLUDE MANUALS: S-632 General Information Manual (pn 97999-624).
2" AIR MOTOR
50:1 RATIO
0 - 7500 P.S.I. RANGE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Use only genuine ARO® replacement parts to assure compat-
ible pressure rating and longest service life.
637332 pump rebuild kit. Includes the necessary soft parts for
normal service of the entire pump.
SPECIFICATIONS
Model Series
(refer to option chart)
Pump Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air Operated, Chop-
Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50:1
Air Motor Diameter . . . . . . . . . . . . . . . . . . . . . . 2" (5.08 cm)
Stroke (double acting) . . . . . . . . . . . . . . . . . . . 3" (7.62 cm)
Air Inlet (female) . . . . . . . . . . . . . . . . . . . Rp 1/4 (1/4 - 19 BSP Parallel)
Material Outlet (female) . . . . . . . . . . . . Rc 3/8 (3/8 - 19 BSP Taper)
Pump Construction . . . . . . . . . . . . . . . . . . . . . . Carbon Steel
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . . . see chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see chart
PUMP PERFORMANCE
Air Inlet Pressure Range . . . . . . . . . . . 0 - 150 p.s.i.g. (0 - 10.3 bar)
Fluid Pressure Range . . . . . . . . . . . . . . 0 - 7500 p.s.i.g. (0 - 517.2 bar)
Cycles / Minute Rec'd @ Working Flow . . . 80
Displacement In.3 Per Cycle . . . . . . . . . . . . . . 0.300
Volume / Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.17 oz. (4.91 ml)
Maximum Delivery / Minute . . . . . . . . . . . . . 9 lbs (4.1 kgs)
Noise Level @ 100 p.s.i. . . . . . . . . . . . . . . . . . . 85.0 db(A)
Accessories Available . . . . . . . . . . . . . . . . 61113 Wall Mount Bracket
The pump sound pressure level has been updated to an Equivalent Continuous
Sound Level (LAeq) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1
using four microphone locations.
GENERAL DESCRIPTION
Model LM2250E-XX-B3 series chop-check grease pump is intended
to be used primarily for grease delivery systems. It uses carbon
steel and other materials which make it compatible with most pe-
troleum based lubrication products.
NOTE: If this pump was purchased separately (not part of a system),
consult your sales representative for compatible dispensing acces-
sories which will best match the application. All accessories must
be able to withstand the maximum pressure developed by the
pump.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX (800) 892-6276
www.ingersollrandproducts.com
LM2250E-XX-B3
CHOP-CHECK GREASE PUMP
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . . . . . LM2250E-XX-B3
Check Grease Pump
66073-1 Air Line Connection Kit
© 2011 CCN 15292261
LM2250E-XX-B3
PUMP DATA
MODEL LM2250E-XX-B3
"A"
1-1/4"
(31.3 mm)
"B"
NOTE: Dimensions are shown in inches and (mm) and are supplied for reference only.
Model Number "A" (mm)
LM2250E-22-B3 27-3/4"
(704.2)
LM2250E-32-B3 40-1/2"
(1028.1)
LM2250E-42-B3 49"
(1244.0)
LM2250E-62-B3 30-1/2"
(774.1)
IMPORTANT
This is one of two documents which support the pump. Re-
placement copies of these forms are available upon request.
LM2250E-XX-B3 Model Operator's Manual (pn 97999-1343)
S-632 General Information - Air Operated Lubrication Piston
Pumps (pn 97999-624)
RELEASED: 6-18-08
REVISED: 8-1-11
(REV. 04)
Air Inlet (female)
Rp 1/4 (1/4 - 19 BSP parallel)
Material Outlet (female)
Rc 3/8 (3/8 - 19 BSP taper)
2 - 11-1/2 N.P.S.M.
5/16" (8 mm) thru hole

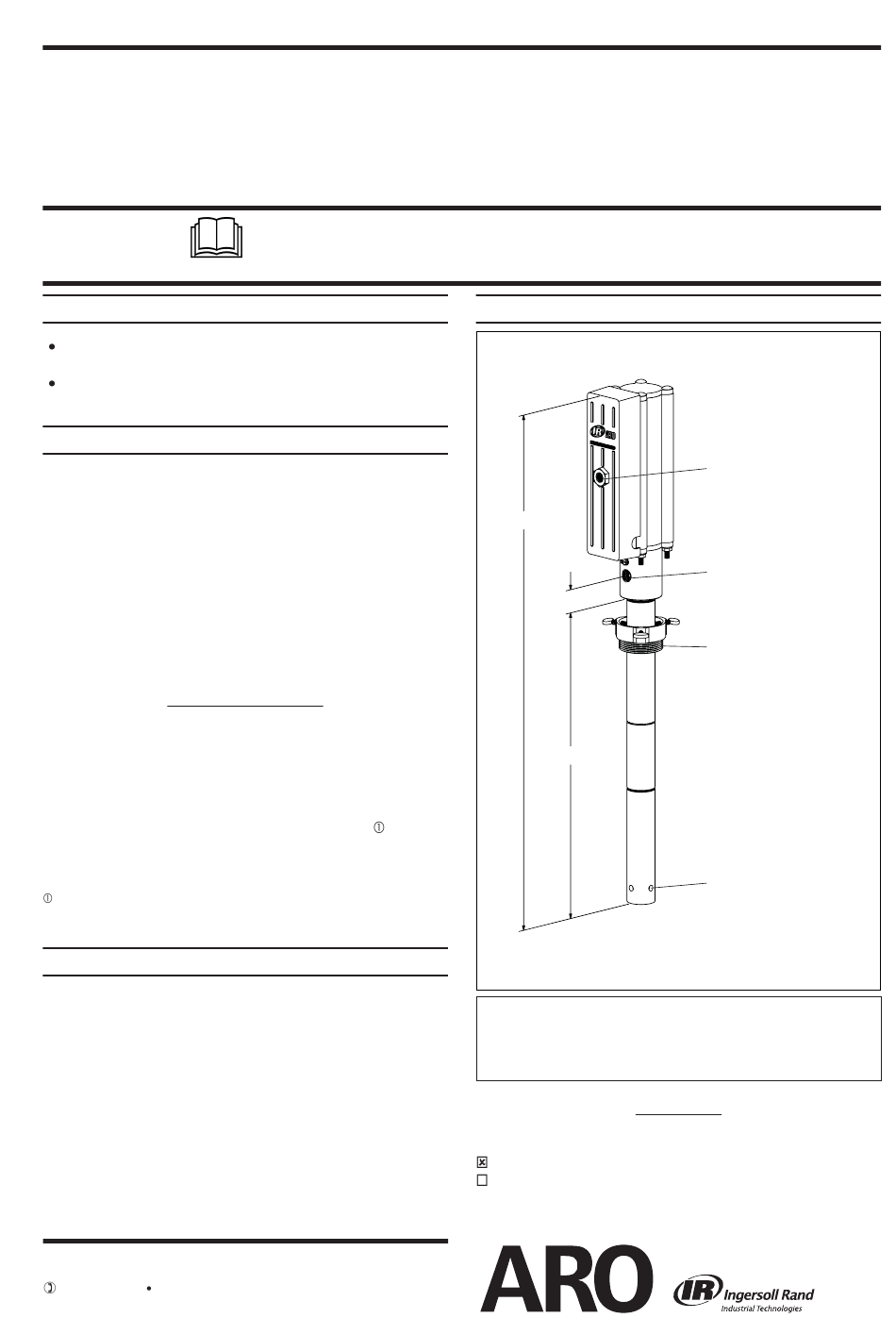

Figure 1
"B" (mm) Weight (kg)
16-9/16" 15 lbs
(420.6) (6.8)
29-5/16" 19 lbs
(744.5) (8.6)
37-13/16" 21.5 lbs
(960.4) (9.8)
19-5/16" 15.9 lbs
(490.5) (7.2)
