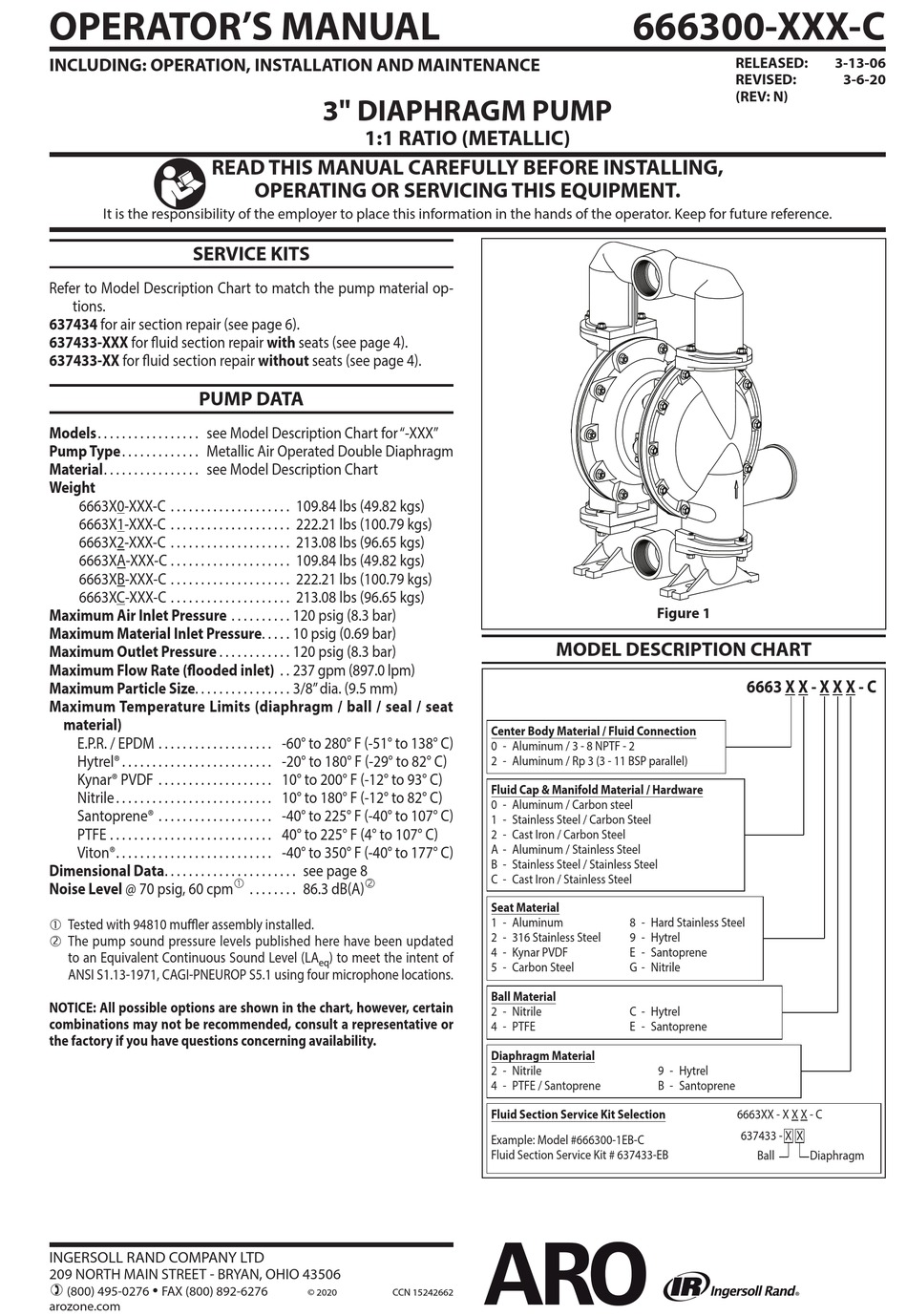

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material op-
tions.
637434 for air section repair (see page 6).
637433-XXX for fluid section repair with seats (see page 4).
637433-XX for fluid section repair without seats (see page 4).
PUMP DATA
Models . . . . . . . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . . . . see Model Description Chart
Weight
6663X0-XXX-C . . . . . . . . . . . . . . . . . . . . 109.84 lbs (49.82 kgs)
6663X1-XXX-C . . . . . . . . . . . . . . . . . . . . 222.21 lbs (100.79 kgs)
6663X2-XXX-C . . . . . . . . . . . . . . . . . . . . 213.08 lbs (96.65 kgs)
6663XA-XXX-C . . . . . . . . . . . . . . . . . . . . 109.84 lbs (49.82 kgs)
6663XB-XXX-C . . . . . . . . . . . . . . . . . . . . 222.21 lbs (100.79 kgs)
6663XC-XXX-C . . . . . . . . . . . . . . . . . . . . 213.08 lbs (96.65 kgs)
Maximum Air Inlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate (flooded inlet) . . 237 gpm (897.0 lpm)
Maximum Particle Size. . . . . . . . . . . . . . . . 3/8" dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal / seat
material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . . . . . . . -20° to 180° F (-29° to 82° C)
Kynar® PVDF . . . . . . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Nitrile . . . . . . . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Santoprene® . . . . . . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 psig, 60 cpm
Tested with 94810 muffler assembly installed.
The pump sound pressure levels published here have been updated
to an Equivalent Continuous Sound Level (LA
ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET - BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . . 86.3 dB(A)
) to meet the intent of
eq
© 2020
CCN 15242662
666300-XXX-C

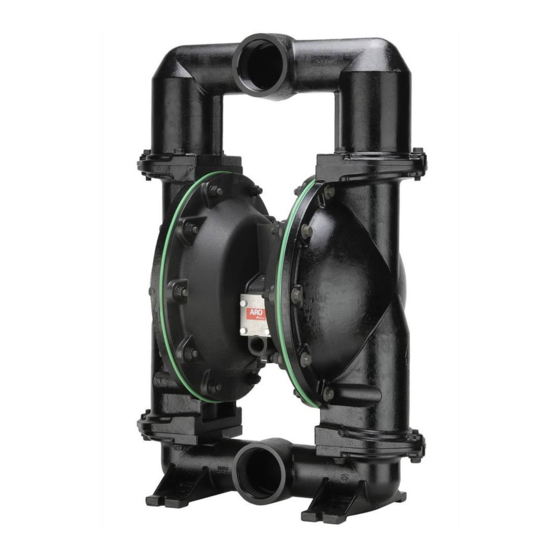

Figure 1
MODEL DESCRIPTION CHART
Center Body Material / Fluid Connection
0 - Aluminum / 3 - 8 NPTF - 2
2 - Aluminum / Rp 3 (3 - 11 BSP parallel)
Fluid Cap & Manifold Material / Hardware
0 - Aluminum / Carbon steel
1 - Stainless Steel / Carbon Steel
2 - Cast Iron / Carbon Steel
A - Aluminum / Stainless Steel
B - Stainless Steel / Stainless Steel
C - Cast Iron / Stainless Steel
Seat Material
1 - Aluminum
8 - Hard Stainless Steel
2 - 316 Stainless Steel
9 - Hytrel
4 - Kynar PVDF
E - Santoprene
5 - Carbon Steel
G - Nitrile
Ball Material
2 - Nitrile
C - Hytrel
4 - PTFE
E - Santoprene
Diaphragm Material
2 - Nitrile
9 - Hytrel
4 - PTFE / Santoprene
B - Santoprene
Fluid Section Service Kit Selection
Example: Model #666300-1EB-C
Fluid Section Service Kit # 637433-EB
RELEASED:
3-13-06
REVISED:
3-6-20
(REV: N)
6663 X X - X X X - C
6663XX - X X X - C
637433 - X X
Ball
Diaphragm
Advertisement
Table of Contents
Related Manuals for Ingersoll-Rand ARO 666300 C Series
Summary of Contents for Ingersoll-Rand ARO 666300 C Series
- Page 1 OPERATOR’S MANUAL 666300-XXX-C INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE RELEASED: 3-13-06 REVISED: 3-6-20 (REV: N) 3" DIAPHRAGM PUMP 1:1 RATIO (METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. SERVICE KITS Refer to Model Description Chart to match the pump material op- tions.
- Page 2 OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. jury or property damage. Do not attempt to return a pump EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS to the factory or service center that contains hazardous STATIC SPARK HAZARDOUS PRESSURE material.
- Page 3 Viton® and Hytrel® are registered trademarks of the DuPont Company y Kynar® is a registered trademark of Arkema Inc. y Loctite® is a registered trademark of Henkel Loctite Corporation y y Santoprene® is a registered trademark of Monsanto Company, licensed to Advanced Elastomer Systems, L.P. y ARO® is a registered trademark of Ingersoll-Rand Company y y 262™, 271™...
- Page 4 PARTS LIST / 6663XX-XXX-C FLUID SECTION Fluid Section Service Kits (637433-XXX OR 637433-XX) For Fluid Kits With Seats: 637433-XXX Fluid Section Service Kits include: Seats (see SEAT Option, refer to -XXX in chart below), Balls (see BALL Option, refer to -XXX in chart below), Diaphragms (see DIAPHRAGM Option, refer to -XXX in chart below), and items 2, 3, 19 and 196 (listed below) plus 93706-1 Key-Lube grease packet (page 6).
- Page 5 PARTS LIST / 6663XX-XXX-C FLUID SECTION COLOR CODE Diaphragm Ball Material Color Color Hytrel Cream Cream Nitrile Black Red (•) Santoprene Santoprene Green* N / A (backup) PTFE White White (-) Stripe (•) Dot * See item 8 in inset below. FOR THE AIR MO- TOR SECTION, SEE Torque Sequence...
- Page 6 PARTS LIST / 6663XX-XXX-C AIR MOTOR SECTION Indicates parts included in 637434 air section service kit. AIR MOTOR PARTS Item Description Qty Part No. Item Description Qty Part No. (size) (size) 101 Motor Body (1) 96427 116 Spacer (1) 96420 ...
- Page 7 PARTS LIST / 6663XX-XXX-C AIR MOTOR SECTION IMPORTANT BE CERTAIN TO ORIENT (115) SPACER LEGS AWAY FROM BLOCK- ING INTERNAL PORTS WHEN REASSEMBLING AIR SECTION. MAJOR VALVE See cross section detail, figure 4. PILOT VALVE MAJOR VALVE CROSS SECTION DETAIL 112 114 111 115 Figure 3...
- Page 8 TROUBLE SHOOTING Check for kinked (restrictive) outlet material hose. Product discharged from exhaust outlet. Check for diaphragm rupture. Check for kinked (restrictive) or collapsed inlet material hose. Check tightness of (14) diaphragm screw. Check for pump cavitation - suction pipe should be sized at least as large as the inlet thread diameter of the pump for proper flow if high viscosity fluids are being pumped.
