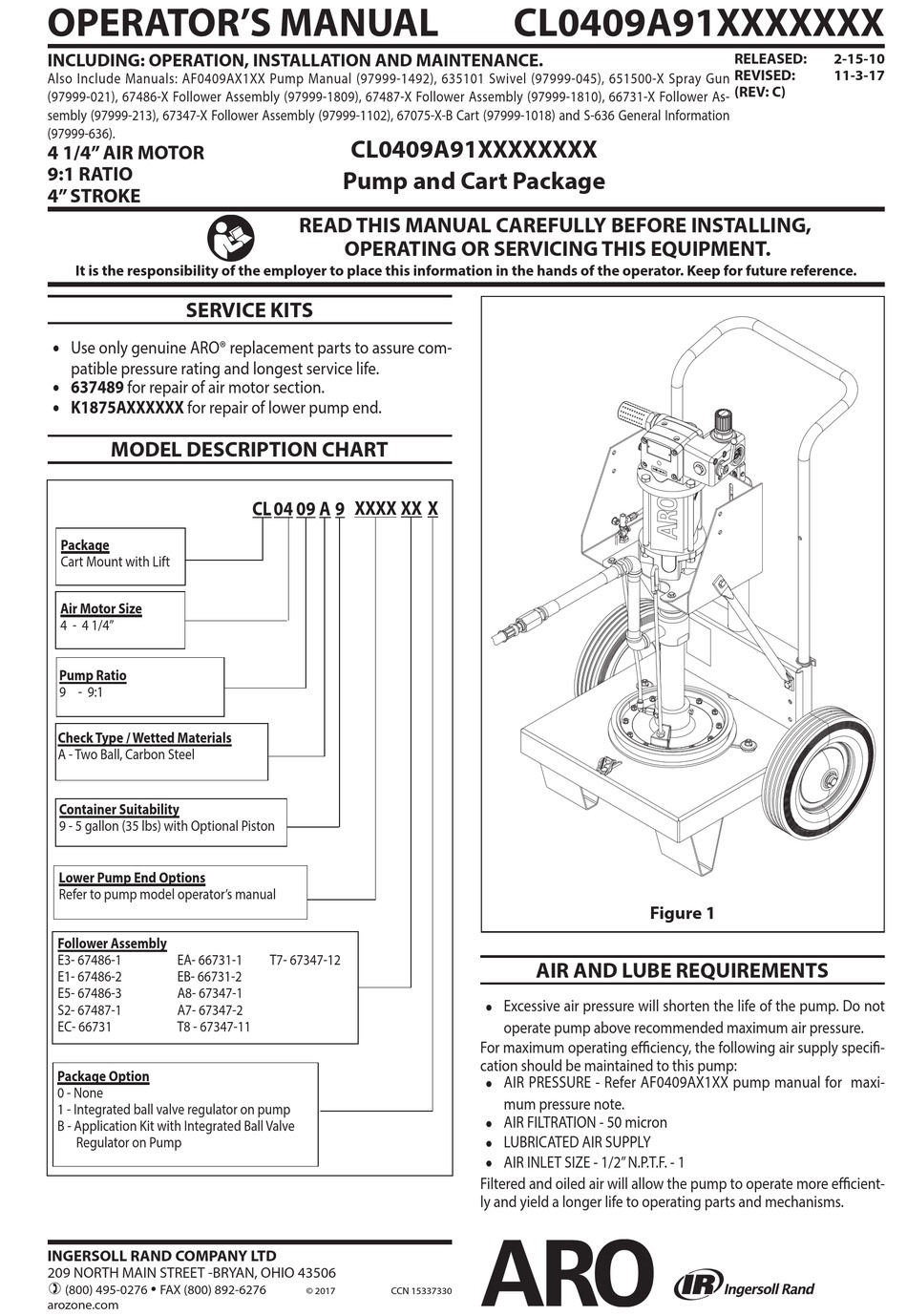

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE.
Also Include Manuals: AF0409AX1XX Pump Manual (97999-1492), 635101 Swivel (97999-045), 651500-X Spray Gun
(97999-021), 67486-X Follower Assembly (97999-1809), 67487-X Follower Assembly (97999-1810), 66731-X Follower As-
sembly (97999-213), 67347-X Follower Assembly (97999-1102), 67075-X-B Cart (97999-1018) and S-636 General Information
(97999-636).
4 1/4" AIR MOTOR
9:1 RATIO
4" STROKE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

Use only genuine ARO® replacement parts to assure com-
y
patible pressure rating and longest service life.
637489 for repair of air motor section.
y
K1875AXXXXXX for repair of lower pump end.
y

MODEL DESCRIPTION CHART

Package
Cart Mount with Lift
Air Motor Size
4 - 4 1/4"
Pump Ratio
9 - 9:1
Check Type / Wetted Materials
A - Two Ball, Carbon Steel
Container Suitability
9 - 5 gallon (35 lbs) with Optional Piston
Lower Pump End Options
Refer to pump model operator's manual
Follower Assembly
E3- 67486-1 EA- 66731-1
E1- 67486-2 EB- 66731-2
E5- 67486-3 A8- 67347-1
S2- 67487-1 A7- 67347-2
EC- 66731 T8 - 67347-11
Package Option
0 - None
1 - Integrated ball valve regulator on pump
B - Application Kit with Integrated Ball Valve
Regulator on Pump
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET -BRYAN, OHIO 43506


(800) 495-0276 FAX (800) 892-6276
arozone.com
CL0409A91XXXXXXXX
Pump and Cart Package
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
CL 04 09 A 9 XXXX XX X
T7- 67347-12
© 2017 CCN 15337330
CL0409A91XXXXXXX
Figure 1

AIR AND LUBE REQUIREMENTS

Excessive air pressure will shorten the life of the pump. Do not
y
operate pump above recommended maximum air pressure.
For maximum operating efficiency, the following air supply specifi-
cation should be maintained to this pump:
AIR PRESSURE - Refer AF0409AX1XX pump manual for maxi-
y
mum pressure note.
AIR FILTRATION - 50 micron
y
LUBRICATED AIR SUPPLY
y
AIR INLET SIZE - 1/2" N.P.T.F. - 1
y
Filtered and oiled air will allow the pump to operate more efficient-
ly and yield a longer life to operating parts and mechanisms.
RELEASED: 2-15-10
REVISED: 11-3-17
(REV: C)
