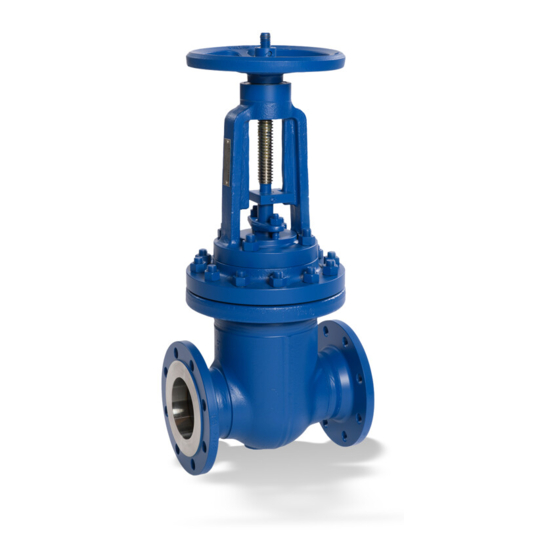

STAAL 40 AKD/AKDS, STAAL 100 AKD/AKDS,
AKG-A/AKGS-A, ZTS,
STAAL 40 AKK/AKKS, STAAL 100 AKK/AKKS,
AKR/AKRS, ZRS, VTS, UGS
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAAL 40 AKD and is the answer not in the manual?

Questions and answers

Related Manuals for KSB STAAL 40 AKD

Summary of Contents for KSB STAAL 40 AKD

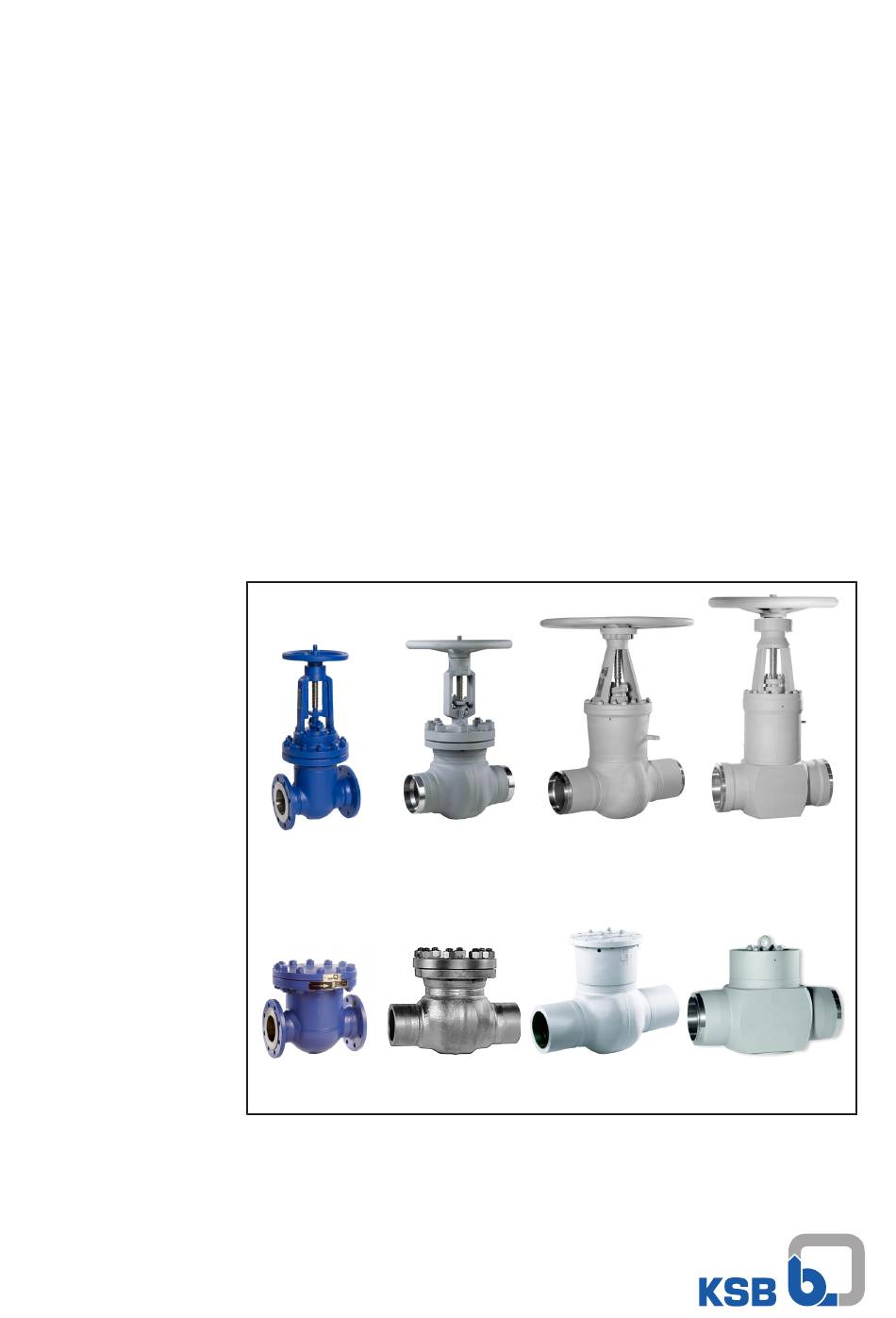

  • Page 1 STAAL 40 AKD/AKDS, STAAL 100 AKD/AKDS, AKG-A/AKGS-A, ZTS, STAAL 40 AKK/AKKS, STAAL 100 AKK/AKKS, AKR/AKRS, ZRS, VTS, UGS Operating Manual...
  • Page 2 All rights reserved. The contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without the manufacturer's express written consent. Subject to technical modification without prior notice. © KSB SE & Co. KGaA, Frankenthal 13/09/2022...

  • Page 3: Table Of Contents

    Contents Contents Glossary .............................. 5 General.............................. 6 Principles ................................ 6 Target group.............................. 6 Other applicable documents.......................... 6 Symbols ................................ 6 Key to safety symbols/markings........................ 6 Safety .............................. 8 General................................ 8 Intended use .............................. 8 2.2.1 Prevention of foreseeable misuse....................... 9 Personnel qualification and training....................... 9 Consequences and risks caused by non-compliance with this manual ............ 9 Safety awareness .............................. 9 Safety information for the operator/user ....................... 9 Safety information for maintenance, inspection and installation .............. 10...
  • Page 4 Contents Welding into the pipeline.......................... 31 Valves with actuator............................ 31 Insulation ................................ 32 Body pressure relief valve .......................... 34 Commissioning/Start-up/Shutdown.................... 39 Commissioning/Start-up .......................... 39 6.1.1 Prerequisites for commissioning/start-up .................. 39 6.1.2 Valve actuation .......................... 41 6.1.3 Information on the mechanical components................... 42 Operating limits.............................. 43 6.2.1 Pressure/temperature ratings for STAAL 40 AKD/AKDS .............. 43 6.2.2 Pressure/temperature ratings for STAAL 100 AKD/AKDS .............. 43 6.2.3...

  • Page 5: Glossary

    Glossary Glossary Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres Regulations 2016 The product regulations Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres Regulations 2016 lay down rules to be met by equipment and protective systems intended for use in potentially explosive atmospheres in the United Kingdom (except Northern Ireland).

  • Page 6: General

    The operating manual describes the proper and safe use of this equipment in all phases of operation. In the event of damage, immediately contact your nearest KSB sales organisation responsible to maintain the right to claim under warranty. 1.2 Target group This operating manual is aimed at the target group of trained and qualified specialist technical personnel.
  • Page 7 1 General Symbol Description CAUTION CAUTION This signal word indicates a hazard which, if not avoided, could result in damage to the machine and its functions. General hazard In conjunction with one of the signal words this symbol indicates a hazard which will or could result in death or serious injury.

  • Page 8: Safety

    2 Safety 2 Safety All the information contained in this section refers to hazardous situations. DANGER In addition to the present general safety information the action-related safety information given in the other sections must be observed. 2.1 General ▪ This operating manual contains general installation, operating and maintenance instructions that must be observed to ensure safe operation of the system and prevent personal injury and damage to property.

  • Page 9: Prevention Of Foreseeable Misuse

    2 Safety 2.2.1 Prevention of foreseeable misuse ▪ Never exceed the permissible application and operating limits specified in the data sheet or product literature regarding temperature, etc. ▪ Observe all safety information and instructions in this manual. 2.3 Personnel qualification and training ▪...

  • Page 10: Safety Information For Maintenance, Inspection And Installation

    2 Safety 2.7 Safety information for maintenance, inspection and installation ▪ Modifications or alterations of the valve require the manufacturer's prior consent. ▪ Use only original spare parts or parts/components authorised by the manufacturer. The use of other parts/components can invalidate any liability of the manufacturer for resulting damage.

  • Page 11: Transport/Storage/Disposal

    1. On transfer of goods, check each packaging unit for damage. 2. In the event of in-transit damage, assess the exact damage, document it and notify KSB or the supplying dealer and the insurer about the damage in writing immediately.

  • Page 12: Storage/Preservation

    3 Transport/Storage/Disposal Fig. 1: Transporting the valve 3.3 Storage/preservation If commissioning is to take place some time after delivery, we recommend that the following measures be taken for storing the valve: CAUTION Incorrect storage Damage due to dirt, corrosion, humidity and/or frost! ▷...

  • Page 13: Return To Supplier

    Indicate any safety measures and decontamination measures taken. NOTE If required, a blank certificate of decontamination can be downloaded from the following web site: www.ksb.com/certificate_of_decontamination 3.5 Disposal WARNING Fluids handled, consumables and supplies which are hot or pose a health hazard Hazard to persons and the environment! ▷...

  • Page 14: Valve Description

    4.1.1 Product information as per Regulation No. 1907/2006 (REACH) For information as per chemicals Regulation (EC) No. 1907/2006 (REACH), see https:// www.ksb.com/ksb-en/About-KSB/Corporate-responsibility/reach/ 4.1.2 Product information as per Pressure Equipment Directive 2014/68/EU (PED) The valves satisfy the safety requirements of Annex I of the European Pressure Equipment Directive 2014/68/EU (PED) for fluids in Groups 1 and 2.

  • Page 15: Gate Valves To Din/En With Bolted Bonnet

    4 Valve Description Class PN Fluids in Groups 1 and 2 80 100 125 150 ≥200 ≤25 ≥ ≥ ≥40 Fig. 2: CE marking Class PN ≤25 80 100 125 150 ≥ ≥ ≥40 Fig. 3: UKCA marking Fluid groups In accordance with the current regulations or directives for pressure equipment, Group 1 comprises: all fluids posing physical or health hazards, e.g.
  • Page 16 4 Valve Description Variants ▪ Stem protecting tube ▪ Stem protecting tube with position indicator (≥ DN 250) ▪ Stem protecting tube with position switch (≥ DN 250) ▪ Position switch(es) mounted on yoke (≤ DN 200) ▪ Bypass ▪ Drain branch ▪ Barrier water connection ▪...

  • Page 17: Staal 100 Akd/Akds

    4 Valve Description 4.3.2 STAAL 100 AKD/AKDS 4.3.2.1 General description ▪ Gate valve with bolted bonnet Valve for preventing backflow in industrial plants, power stations, process engineering and shipbuilding. 4.3.2.2 Design details Design Fig. 5: STAAL 100 AKD/ AKDS ▪ Body of forged or welded steel construction ▪...

  • Page 18: Gate Valves To Din/En In Pressure Seal Design

    4 Valve Description 4.4 Gate valves to DIN/EN in pressure seal design 4.4.1 AKG-A/AKGS-A 4.4.1.1 General description ▪ Gate valve with pressure seal bonnet Valve for preventing backflow in industrial plants, power stations, process engineering and shipbuilding. 4.4.1.2 Design details Design Fig. 6: AKG-A/AKGS-A ▪...
  • Page 19 4 Valve Description For fitting a body pressure relief valve, (ð Section 4.5.1, Page 21) (see type series booklet 7300.1) a connection branch 131.2 with connection dimensions Ø 22 mm / 14.1 mm (or 12.3 mm) is welded to body 100. The connection branch is supplied closed. Body pressure relief valves, if ordered, are supplied unassembled, i.e. attached loosely to the gate valve.

  • Page 20: Zts

    4 Valve Description 4.4.2 ZTS 4.4.2.1 General description ▪ Gate valve with pressure seal bonnet Valve for preventing backflow in industrial plants, power stations, process engineering and shipbuilding. 4.4.2.2 Design details Design Fig. 8: ZTS ▪ Body made of forged steel ▪...

  • Page 21: Body Pressure Relief Valve

    4 Valve Description Wedge/disc holder 367 is screwed onto stem 200. A retainer prevents wedge discs 360 from twisting in wedge/disc holder 367. To prevent twisting of the obturator components, the wedge/disc holder is guided in the body by lateral guide ribs 752. The valve is equipped with a pressure seal bonnet.
  • Page 22 4 Valve Description ▪ The blow-off pressure is set via the threaded insert. ▪ Stellited seat ▪ Lead-sealed screw prevents unauthorised manipulation of set blow-off pressure. Variants ▪ Bursting disc (UGSV and UGSVA) ▪ Blocking device ▪ With lockable shut-off valve 4.5.1.3 Heating up of trapped liquids The problem of trapped liquids heating up primarily concerns gate valves.
  • Page 23 4 Valve Description Spring-loaded body The body pressure relief valve with pre-fitted bursting disc basically consists of two pressure relief valve with assemblies: bursting disc (UGSV) ▪ Bursting disc with fastening elements ▪ Downstream spring-loaded body pressure relief valve Bursting disc 550.2 is clamped between pipe union 731 and sleeve 520 and sealed by means of intermediate ring 500.

  • Page 24: Swing Check Valves With Bolted Cover

    4 Valve Description 4.6 Swing check valves with bolted cover 4.6.1 STAAL 40 AKK/AKKS 4.6.1.1 General description ▪ Swing check valve with bolted cover Valve for preventing backflow in industrial plants, power stations, process engineering and shipbuilding. 4.6.1.2 Design details Design Fig. 11: STAAL 40 AKK/AKKS ▪...

  • Page 25: Staal 100 Akk/Akks

    4 Valve Description 4.6.2 STAAL 100 AKK/AKKS 4.6.2.1 General description ▪ Swing check valve with bolted cover Valve for preventing backflow in industrial plants, power stations, process engineering and shipbuilding. 4.6.2.2 Design details Design Fig. 12: STAAL 100 AKK/ AKKS ▪ Body of forged or welded steel construction ▪...

  • Page 26: Swing Check Valves With Pressure Seal Cover

    4 Valve Description 4.7 Swing check valves with pressure seal cover 4.7.1 AKR/AKRS 4.7.1.1 General description ▪ Swing check valve with pressure seal cover Valve for preventing backflow in industrial plants, power stations, process engineering and shipbuilding. 4.7.1.2 Design details Design Fig. 13: AKR/AKRS ▪...

  • Page 27: Line Blind Valve

    4 Valve Description Variants ▪ Flanged ends ▪ Minimum flow nozzle ▪ Other butt weld end versions ▪ Inspections to technical codes such as TRD/TRB/AD2000 – German Steam Boiler / Pressure Vessel Regulations – or to customer specification 4.7.2.3 Function Design The swing check valve is equipped with a pressure seal cover.

  • Page 28: Scope Of Supply

    4 Valve Description 4.8.1.3 Function The line blind valve consists of body 100, bonnet 139 and blind plate 368 which shuts off fluid flow in body 100. The seating faces of body 100 and blind plate 368 are hard-faced. Blind plate 368 rests against plate 198 in the body seat via fully threaded stud 563 and nut 920.2.

  • Page 29: Installation At Site

    5 Installation at Site 5 Installation at Site 5.1 General information/Safety regulations The operator ensures that maintenance, inspection and installation are performed by authorised, qualified specialist personnel who are thoroughly familiar with the manual. The consultant, construction company or operator are responsible for positioning and installing the valves.

  • Page 30: Installation Position And Location

    5 Installation at Site NOTE Only use fasteners (e.g. to DIN EN 1515-4) and flange gaskets (e.g. to DIN EN 1514) made of materials approved for the respective valve size. Always use all flange bolt holes provided when connecting the valve to the piping. Refer to the type series booklet for details on flange connections.

  • Page 31: Welding Into The Pipeline

    5 Installation at Site When installing the line blind valve without the shut-off elements (normal operating condition), make sure bonnet 139 is fitted so that the pointer is oriented in flow direction. This indicates that the fluid passage is open. Installation location The valve must not be fitted downstream of tees and level or three-dimensional double bends.

  • Page 32: Insulation

    5 Installation at Site CAUTION Change of limit switch points Impairment of the functional reliability! Damage to the actuator! ▷ Never change the pre-set limit switch points. Mounted actuators are factory-set and ready for operation. DANGER Unqualified personnel performing work on valves with actuator Danger of death from electric shock! ▷...
  • Page 33 5 Installation at Site CAUTION Condensation forming in air-conditioning systems, cooling systems and refrigerating systems Ice forming! Actuating element blockage! Damage due to corrosion! ▷ Insulate the valve to prevent diffusion. CAUTION Outdoor installation Damage due to corrosion! ▷ Provide weather-proof protection to protect the valve against moisture. For any insulation fitted on the valve observe the following: ▪...

  • Page 34: Body Pressure Relief Valve

    5 Installation at Site 5.6 Body pressure relief valve DANGER Valve blowing off downwards or upwards High-pressure hazard! Leakage of hot and/or toxic fluids! Risk of burns! ▷ UGS and UGSV blow off downwards. ▷ UGSVA blows off upwards. ▷ Suitable measures must be taken to mark the hazardous area. ▷...
  • Page 35 Pipe, not included in KSB’s scope of supply Pipe union All KSB gate valves with pressure seal bonnet are factory-supplied with a closed connection branch 131.2 with connection dimensions Ø 22 mm / Ø 14.1 mm (or 12.3 mm), suitable for a pipe of Ø 21.3 mm × 3.6 mm (or 4.5 mm).
  • Page 36 5 Installation at Site Fig. 19: Position of connection branch 131.2 ① Type ZTS ② Type AKG-A, AKGS-A On gate valves for PN ≥ 63 with bodies made of P 250 GH (1.0460) the connection branch and pipe union 731 are also made of P 250 GH (1.0460). The gate valve body is also available in the higher quality material 13 CrMo 4-5 (1.7335).
  • Page 37 5 Installation at Site CAUTION Tripping of body pressure relief valve during commissioning Damage to the seating faces due to foreign particles! ▷ Lock the body pressure relief valve in the closed position: The valve disc can be pressed into the closed position via the rod by means of cover 160 fitted to screw-type body 734, thus ensuring tight closure.
  • Page 38 5 Installation at Site Part No. Description Material Material number X 39 CrMo 17-1 1.4122 Pipe union P 250 GH 1.0460 13 CrMo 4-5 1.7335 10 CrMo 9-10/ 1.7380 11 CrMo 9-10 1.7383 X 10 CrMoVNb 9-1 1.4903 Screw-type body 9 SMn28 k Bolt Hexagon head bolt Hexagon nut Disc spring Inconel 718 Spring-loaded body The body pressure relief valve with bursting disc is supplied fully assembled, i.e.

  • Page 39: Commissioning/Start-Up/Shutdown

    6 Commissioning/Start-up/Shutdown 6 Commissioning/Start-up/Shutdown 6.1 Commissioning/Start-up 6.1.1 Prerequisites for commissioning/start-up Before commissioning/start-up of the valve, ensure that the following requirements are met: ▪ The material, pressure data and temperature data of the valve are compatible with the operating conditions of the piping. ▪...
  • Page 40 6 Commissioning/Start-up/Shutdown CAUTION Aggressive flushing liquids and pickling agents Damage to the valve! ▷ Ensure that cleaning procedure and duration match the valve body materials and seal materials when performing flushing and pickling. ▷ Responsibility for the compatibility of the pickling media used and the pickling procedure itself lies with the pickling company.

  • Page 41: Valve Actuation

    6 Commissioning/Start-up/Shutdown Electric actuators are factory-set ready for operation and wired as follows: ▪ Valve CLOSED: travel-dependent ▪ Valve OPEN: travel-dependent The wiring diagrams are located in the terminal boxes. For pneumatic or hydraulic actuators, the control pressures specified in the order confirmation must be observed.

  • Page 42: Information On The Mechanical Components

    6 Commissioning/Start-up/Shutdown CAUTION Excessively long idle periods Damage to the valve! ▷ Check the function by opening and closing the valve at least once or twice a year. CAUTION Use of levers Damage to the valve as a result of excessive forces! ▷...

  • Page 43: Operating Limits

    6 Commissioning/Start-up/Shutdown 6.1.3.4 Uncontrolled movements In the following cases, the valve disc's position may change in an uncontrolled manner due to the system's pressure with resultant effects on the plant: ▪ Control failure ▪ Signal error ▪ Power supply failure during operation ▪...

  • Page 44: Pressure/Temperature Ratings For Zts

    6 Commissioning/Start-up/Shutdown Material [°C] Designation Number 160 13 CrMo 4-5 1.7335 160,0 160,0 160,0 160,0 160,0 160,0 152,3 144,0 134,8 128,3 121,8 115,3 108,8 104,3 88,3 71,6 59,4 46,4 37,3 Table 9: Unmachined butt weld ends, type AKGS-A Permissible operating pressures [bar] PN Material [°C] Designation Number...

  • Page 45: Pressure/Temperature Ratings For Staal 40 Akk/Akks

    6 Commissioning/Start-up/Shutdown Material Subseries [°C] 10 CrMo 9-10 268 248 232 217 213 202 187 177 173 167 162 136 119 104 91 1.7380/ 408 377 354 331 323 308 284 269 262 254 246 207 181 158 138 119 104 89 11 CrMo 9-10 539 498 467 437 427 407 376 355 345 335 325 275 239 210 183 158 138 117 103 - 1.7383...

  • Page 46: Pressure/Temperature Ratings For Zrs

    6 Commissioning/Start-up/Shutdown Material [°C] Designation Number 13 CrMo 4-5 1.7335 160,0 160,0 160,0 160,0 160,0 160,0 152,3 144,0 134,8 128,3 121,8 115,3 108,8 104,3 88,3 71,6 59,4 46,4 37,3 Butt weld ends, machined, type AKRS Table 15: Permissible operating pressures [bar] Material [°C] Designation Number Up to...

  • Page 47: Pressure/Temperature Ratings For Vts

    6 Commissioning/Start-up/Shutdown 6.2.9 Pressure/temperature ratings for VTS Table 17: Permissible operating pressure [bar] 28)29) Material Subseries [°C] P 250 GH 212 202 181 161 141 126 105 85 1.0460 323 308 277 246 215 192 161 130 115 100 - 426 407 366 325 284 254 213 172 152 132 - 521 496 446 397 347 310 260 210 186 160 - 15NiCuMoNb5 429 407 394 380 367 356 341 327 314 242 -...

  • Page 48: Shutdown

    6 Commissioning/Start-up/Shutdown 6.3 Shutdown 6.3.1 Measures to be taken for shutdown During prolonged shutdown periods, ensure that the following conditions are met: 1. Drain fluids which change their physical condition due to changes in concentration, polymerisation, crystallisation, solidification, etc. from the piping. 2.
  • Page 49 6 Commissioning/Start-up/Shutdown CAUTION Incorrect installation position of bursting disc Damage to the valve! ▷ Observe the installation position. ▷ The concave curvature must face the pressure side. NOTE Bursting discs are safety elements and must be handled with utmost care. If the bursting disc needs replacing, the following steps must be observed: ü...

  • Page 50: Servicing/Maintenance

    NOTE All maintenance work, service work and installation work can be carried out by KSB Service or authorised workshops. For contact details refer to the enclosed "Addresses" booklet or visit "www.ksb.com/contact" on the Internet.

  • Page 51: Trouble-Shooting

    ▷ For any work performed in order to remedy faults on the valve observe the relevant information given in this operating manual and/or the product literature provided by the accessories manufacturers. If problems occur that are not described in the following table, consultation with the KSB service is required. Table 18: Trouble-shooting Problem Possible cause...

  • Page 52: Related Documents

    9 Related Documents 9 Related Documents 9.1 General assembly drawing with list of components for STAAL 40 AKD/ AKDS PN 10 - 40 PN 40 DN 50 - 200 DN 250 - 600 AKDS AKDS 1) PN 40, DN 700 - 800 1) PN 10/16, DN 900 AKDS Fig. 21: Sectional drawings;...
  • Page 53 9 Related Documents Part No. Description Material Material number Note Disc/wedge holder P 265 GH 1.0425 ≥ DN 250 Seat/disc Body X 20 CrMo 17 1 1.4115 17 % chrome steel interface Wedge discs X 8 CrTi 18 1.4502 Joint ring CrNi steel/graphite Gland follower P 250 GH/P 265 GH 1.0460 / 1.0425 Gland packing Pure graphite Threaded bush...
  • Page 54 9 Related Documents Part No. Description Temperature Material Material number Note Bolt/screw ≤ 530 21 CrMoV 5-7 1.7709 Hexagon nut ≤ 450 25 CrMo 4 1.7218 ≤ 530 25 CrMo 4 1.7218 Handwheel ≤ 530 Steel Non-rising 54 of 72...

  • Page 55: General Assembly Drawing With List Of Components For Staal 100 Akd/Akds

    9 Related Documents 9.2 General assembly drawing with list of components for STAAL 100 AKD/ AKDS DN 50/50 - 250/250 DN 300/300 - 600/600 AKDS AKDS Fig. 22: Sectional drawings of STAAL 100 AKD/AKDS Table 21: Parts list DN 50/50 - 250/250 Part No. Description Temperature Material Material number Note...
  • Page 56 9 Related Documents Part No. Description Temperature Material Material number Note [°C] Joint ring ≤ 530 1.4541/graphite Serrated gasket Gland follower P 250 GH 1.0460 Neck ring G-X70 CrMo 292 1.4136 461.1/.2 Gland packing Graphite Compression-moulded rings (with packing end rings) Threaded bush Cu Zn 35 Ni 2 2.0540 On axial needle bearing 902.1...

  • Page 57: General Assembly Drawing With List Of Components For Akg-A/Akgs-A

    9 Related Documents 9.3 General assembly drawing with list of components for AKG-A/AKGS-A AKG-A AKGS-A Fig. 23: Sectional drawings of AKG-A/AKGS-A Table 23: Parts list DN 65/80 - 300/250 Part No. Description Temperature Material Material number Note [°C] Body ≤ 450 P 250 GH 1.0460 Body die-forged and welded ≤...

  • Page 58: General Assembly Drawing With List Of Components For Zts

    9 Related Documents 9.4 General assembly drawing with list of components for ZTS DN 50/50 - 200/175 DN 50/50 - 200/175 461.2 461.1 461.2 461.2 461.1 461.1 131.2 131.2 131.1 Fig. 24: Sectional drawings; ZTS 1) With connection branch extensions 2) Without connection branch extensions Table 24: Parts list Part...
  • Page 59 9 Related Documents Part Description Materials for operating temperatures [°C] up to Threaded bush Copper base alloys Handwheel Steel 59 of 72...

  • Page 60: General Assembly Drawing With List Of Components For Ugs

    9 Related Documents 9.5 General assembly drawing with list of components for UGS 32-2 32-2 550.1 550. 550.2 550.2 UGS: without bursting disc, spring- UGSVA: with bursting disc, not UGSV: with bursting disc, spring- loaded spring-loaded, to be used in loaded combination with lockable globe valve only...

  • Page 61: General Assembly Drawing With List Of Components For Staal 40 Akk/Akks

    9 Related Documents 9.6 General assembly drawing with list of components for STAAL 40 AKK/ AKKS AKKS Fig. 26: Sectional drawings of STAAL 40 AKK/AKKS Table 26: Parts list Part No. Description Material Material number Note Body P 235 GH 1.0345 P 265 GH 1.0425 131.1 Connection branch P 235 GH 1.0305 Body cover...

  • Page 62: General Assembly Drawing With List Of Components For Staal 100 Akk/Akks

    9 Related Documents 9.7 General assembly drawing with list of components for STAAL 100 AKK/ AKKS DN 80/80 - 250/250 DN 300/300 - 400/400 AKKS Fig. 27: Sectional drawings of STAAL 100 AKK/AKKS Table 27: Parts list DN 80/80-250/250 Part No. Description Temperatur Material Material number Note e [°C]...
  • Page 63 9 Related Documents Table 28: Parts list DN 300/300 - 400/400 Part No. Description Temperatur Material Material number Note e [°C] Body ≤ 450 P 265 GH 1.0425 Body of welded steel construction ≤ 500 16 Mo 3 1.5415 ≤ 530 13 CrMo 4-5 1.7335 Flange ≤ 450 P 250 GH/ 1.0460/1.0425 P 265 GH...

  • Page 64: General Assembly Drawing With List Of Components For Akr/Akrs

    9 Related Documents 9.8 General assembly drawing with list of components for AKR/AKRS AKRS Fig. 28: Sectional drawings of AKR/AKRS Table 29: Parts list Part No. Description Temperatur Material Material number Note e [°C] Body ≤ 450 °C P 250 GH 1.0460 Body die-forged and welded ≤...

  • Page 65: General Assembly Drawing With List Of Components For Zrs

    9 Related Documents 9.9 General assembly drawing with list of components for ZRS DN 50/50 - 200/175 DN 200/200 - 500/450 Fig. 29: Sectional drawings of ZRS Table 30: Parts list Part No. Description Materials for operating temperatures [°C] up to Lower body section P 250 GH 15NiCuMoNb5 16 Mo 3...

  • Page 66: General Assembly Drawing With List Of Components For Vts

    9 Related Documents 9.10 General assembly drawing with list of components for VTS Fig. 30: VTS Table 31: Parts list Part No. Description Materials for operating temperatures [°C] up to Body P 250 GH 15NiCuMoNb5 16 Mo 3 13 CrMo 4-5 10 CrMo 9-10 X10CrMoVNb 9-1 Hard-faced with 1.0460 1.6368 1.5415 1.7335 1.7380/...

  • Page 67: Eu Declaration Of Conformity

    10 EU Declaration of Conformity 10 EU Declaration of Conformity 10.1 EU Declaration of Conformity for STAAL 40, STAAL 100, AKG-A/AKGS- A, AKR/AKRS, ZTS, ZRS, VTS, UGS Herewith we, KSB SE & Co. KGaA Bahnhofplatz 1 91257 Pegnitz Registered office: Frankenthal (Pfalz) Germany...

  • Page 68: Declaration Of Conformity

    11 UK Declaration of Conformity 11 UK Declaration of Conformity 11.1 UK Declaration of Conformity for STAAL 40, STAAL 100, AKG-A/AKGS-A, AKR/AKRS, ZTS, ZRS, VTS, Herewith we, KSB SE & Co. KGaA Bahnhofplatz 1 91257 Pegnitz Registered office: Frankenthal (Pfalz) Germany declare that the product: Gate valves STAAL 40 AKD/AKDS...

  • Page 69: Index

    ZTS 58 Design 15, 17, 18, 20, 21, 24, 25, 26, 27 Design details AKG-A/AKGS-A 18 AKR/AKRS 26 Operating limits 8 STAAL 100 AKD/AKDS 17 Other applicable documents 6 STAAL 100 AKK/AKKS 25 STAAL 40 AKD/AKDS 15 STAAL 40 AKK/AKKS 24 UGS 21 Pressure/temperature ratings VTS 27 AKG-A/AKGS-A 43 ZRS 26 AKR/AKRS 45 ZTS 20 STAAL 100 AKK/AKKS 45 STAAL 100 AKD/AKDS 43...
  • Page 72 KSB SE & Co. KGaA Johann-Klein-Straße 9 • 67227 Frankenthal (Germany) Tel. +49 6233 86-0 www.ksb.com...

This manual is also suitable for:

Staal 40 akdsStaal 100 akdStaal 100 akdsStaal 100 akg-aStaal 100 akgs-aStaal 100 zts ... Show all
