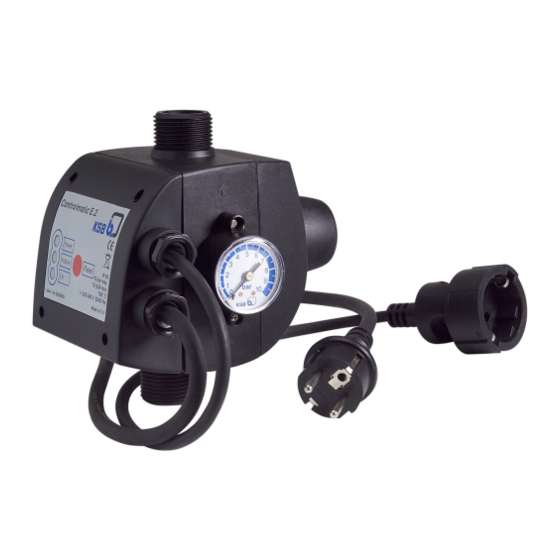

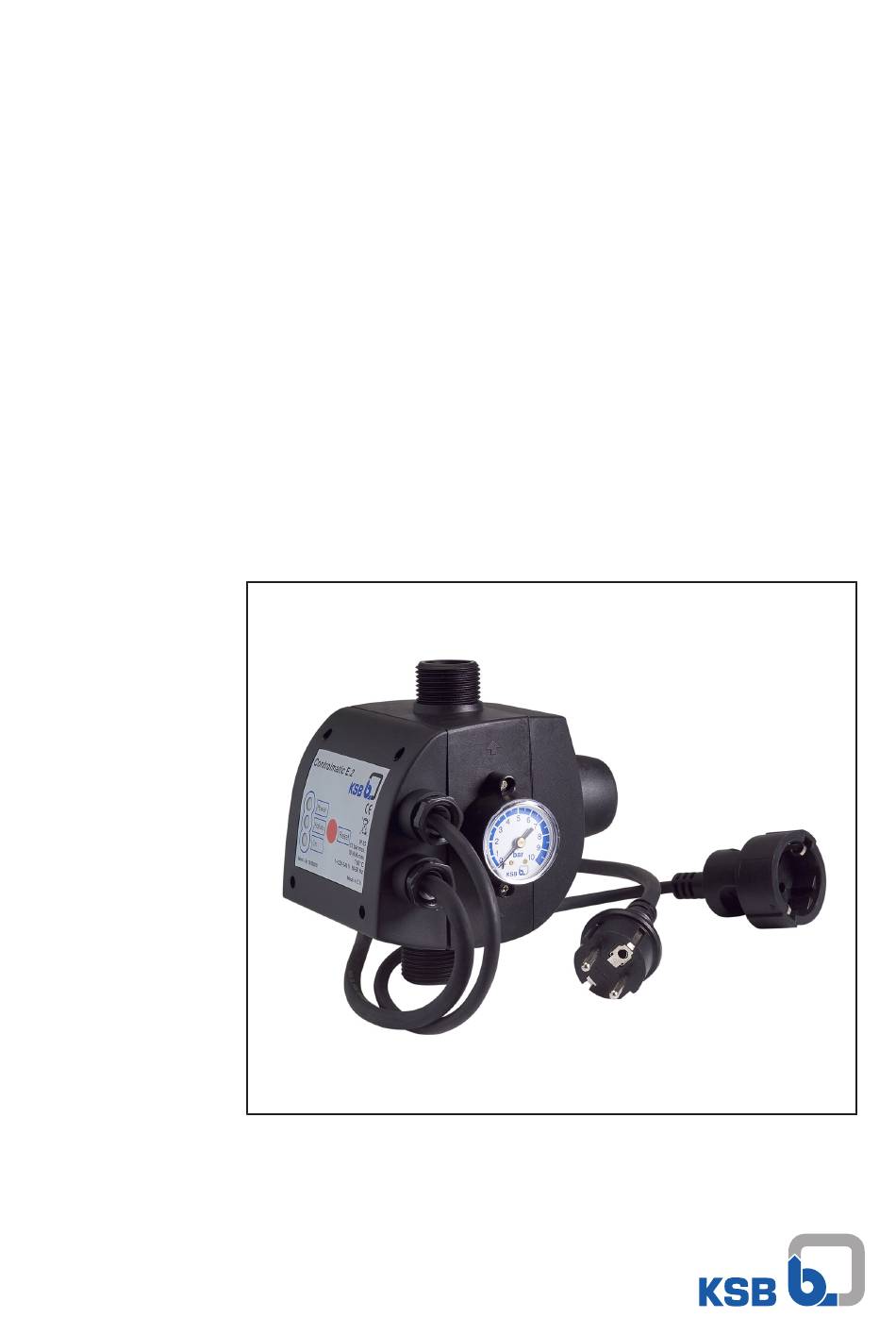

- Page 1 Automatic Control Unit Controlmatic E.2 Installation/Operating Manual...
- Page 2 All rights reserved. The contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without the manufacturer's express written consent. Subject to technical modification without prior notice. © KSB SE & Co. KGaA, Frankenthal 09/01/2018...
-
Page 3: Table Of Contents
Commissioning/Start-up .......................... 14 6.2.1 Commissioning ........................... 14 6.2.2 Setting the start-up pressure...................... 14 Shutdown/storage/preservation ........................ 15 Returning to service ............................ 15 Maintenance............................ 16 Trouble-shooting.......................... 17 Related Documents .......................... 19 Installation information .......................... 19 EU Declaration of Conformity ...................... 21 Index .............................. 22 Controlmatic E.2 3 of 24... -
Page 4: General
The serial number uniquely describes the system and is used as identification in all further business processes. In the event of damage, immediately contact your nearest KSB service centre to maintain the right to claim under warranty. 1.2 Target group This operating manual is aimed at the target group of trained and qualified specialist technical personnel. -
Page 5: Safety
The values specified in the technical product literature for the mains voltage, mains frequency, ambient temperature, and motor current must not be exceeded. The automatic control unit must only be operated in accordance with the instructions provided in the operating manual and other applicable documents (ð Section 1.3, Page 4) . Controlmatic E.2 5 of 24... -
Page 6: Personnel Qualification And Personnel Training
In addition to the safety information contained in this manual and the intended use, the following safety regulations shall be complied with: ▪ Accident prevention, health and safety regulations ▪ Explosion protection regulations ▪ Safety regulations for handling hazardous substances ▪ Applicable standards, directives and laws Controlmatic E.2 6 of 24... -
Page 7: Transport/Temporary Storage/Disposal
1. On transfer of goods, check each packaging unit for damage. 2. In the event of in-transit damage, assess the exact damage, document it and notify KSB or the supplying dealer (as applicable) and the insurer about the damage in writing immediately. -
Page 8: Disposal
3.4 Disposal NOTE Due to certain components it contains, the device is classified as special waste and meets RoHs 2011/65/EC requirements. Once decommissioned, the device must be properly disposed of in accordance with local regulations. Controlmatic E.2 8 of 24... -
Page 9: Description
Ident. Nr . 39300031 1~220-240 V 50/60Hz-10(6) A T.max:60ºC-IP 65 P. max: 10 bar Q. max: 10m ³/h KSB SE & Co. KGaA Johann-Klein-Straße 9 67227 Frankenthal Deutschland made in EU Fig. 1: Name plate (example) S serial number, 13 device version, Mat. -
Page 10: Configuration And Function
4 Description 4.5 Configuration and function Fig. 2: Design of Controlmatic E.2 Housing Green signal lamp - Ready for operation Pressure gauge Yellow signal lamp - Pump running Plug socket to IEC 60884-1 for Red signal lamp - connecting the pump Fault or lack of water Power cable with shockproof plug Function The pump can be connected via the socket (3) of the automatic control unit. -
Page 11: Technical Data
▪ Drinking water ▪ Service water ▪ Stormwater ▪ Fire-fighting water ▪ Cooling water 4.8 Displays and indicator lamps Power Failure Reset Fig. 3: Indicator lamps Ready for operation (green) Fault (red) Operation (yellow) Reset button Controlmatic E.2 11 of 24... -
Page 12: Installation At Site
Connect all piping without transmitting any stresses or strains. 5.4.1 Connecting the piping (dry installation) ▪ The automatic control unit can be connected directly to the pump discharge nozzle. ▪ Always mount the automatic control unit in the vertical position. Controlmatic E.2 12 of 24... -
Page 13: Connecting The Piping (Wet Installation)
Stresses/strains and leaks in the plastic piping! ▷ Use Teflon tape for sealing. 5.5 Electrical connection Connection to power supply is effected by means of a 230 V plug in accordance with VDE 0100. Site-supplied fusing: 16 A (max). Controlmatic E.2 13 of 24... -
Page 14: Commissioning/Start-Up/Shutdown
The automatic control unit is factory-set to 1.5 bar. This pressure setting cannot be changed. NOTE The head between the highest consumer and the pump must always be lower than the pressure set at the automatic control unit. Controlmatic E.2 14 of 24... -
Page 15: Shutdown/Storage/Preservation
▪ Leave the automatic control unit to dry and store in a dry, dark and frost-proof room. ▪ Special preservation measures are not required. 6.4 Returning to service For returning the equipment to service, observe the items on commissioning/start-up. Controlmatic E.2 15 of 24... -
Page 16: Maintenance
7 Maintenance 7 Maintenance Check the proper functioning of the automatic control unit once per year. Controlmatic E.2 16 of 24... -
Page 17: Trouble-Shooting
If problems occur that are not described in the following table, consultation with the KSB customer service is required. A Pump does not start B Pump delivers, pressure unstable... - Page 18 Power valve. flush it through to remove any Failure Reset solids. Call in customer service if necessary. Electronic components defective Call in customer service. Controlmatic E.2 18 of 24...
-
Page 19: Related Documents
9 Related Documents 9 Related Documents 9.1 Installation information 1~ 220 V / 240 V W01.000 ;bar Fig. 4: Horizontal pump, dry-installed W01.000;bar Fig. 5: Vertical pump, dry-installed Controlmatic E.2 19 of 24... - Page 20 9 Related Documents 1~ 220 V / 240 V W01.000 ;bar W01.000 ;bar Fig. 6: Wet installation Controlmatic E.2 20 of 24...
-
Page 21: Eu Declaration Of Conformity
10 EU Declaration of Conformity 10 EU Declaration of Conformity KSB SE & Co. KGaA Manufacturer: Johann-Klein-Straße 9 67227 Frankenthal (Germany) The manufacturer herewith declares that the product: Controlmatic E.2 Series code range: 2016w16 to 2018w52 ▪ is in conformity with the provisions of the following Directives as amended from time to time: –... -
Page 22: Index
Index Index Commissioning/start-up 14 Design 9 Designation 9 Disposal 8 Faults Causes and remedies 17 Name plate 9 Other applicable documents 4 Safety 5 Safety awareness 6 Storage 7 Transport 7 Controlmatic E.2 22 of 24... - Page 24 KSB SE & Co. KGaA Johann-Klein-Straße 9 • 67227 Frankenthal (Germany) Tel. +49 6233 86-0 www.ksb.com...
