Installation

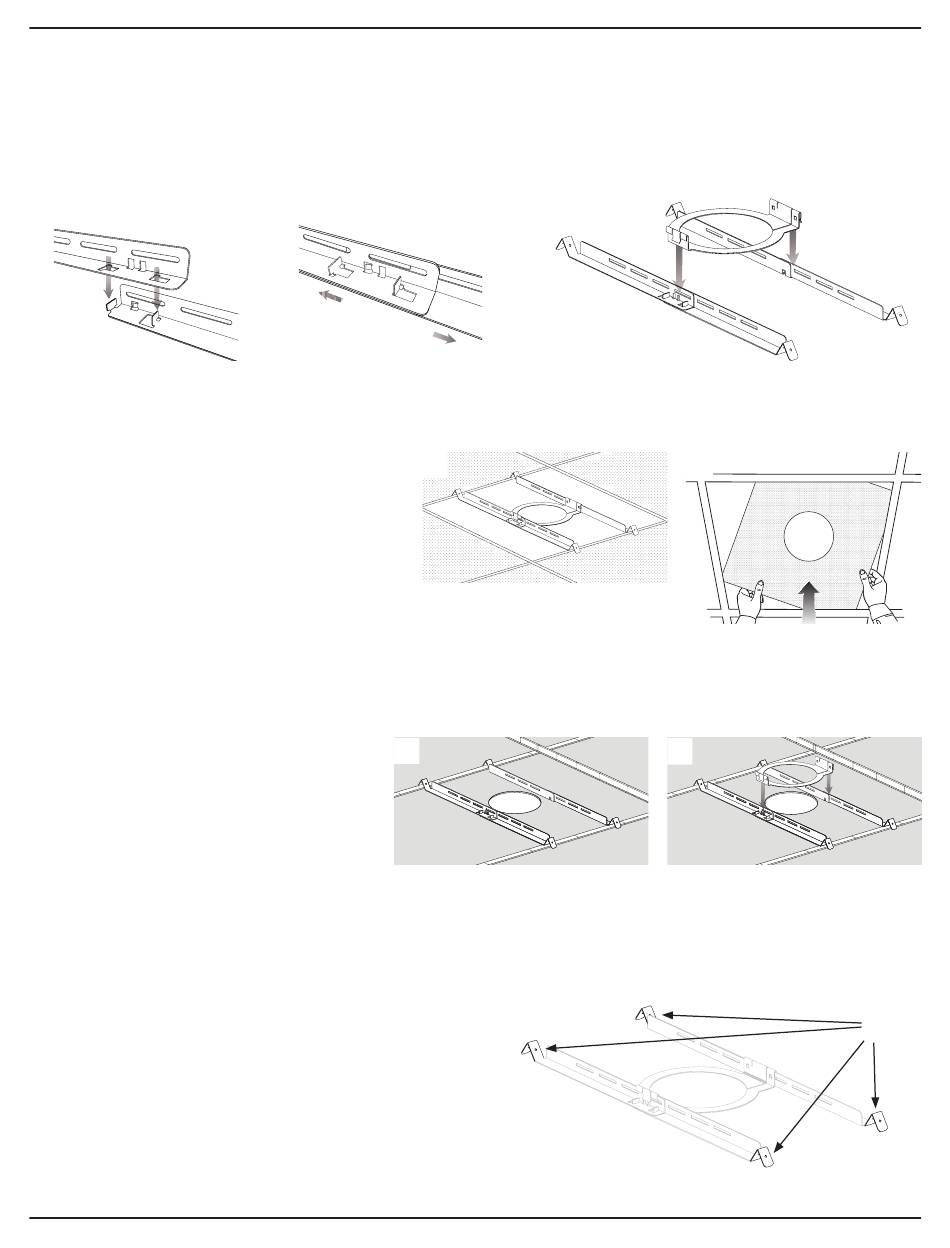

Assembling the Tile Bridge
1. Align the rails and insert the tabs into the slots.
2. Pull the rails outward to secure them together.
Note: If you are installing in a hard ceiling, assemble the tile bridge after inserting the assembled rails and ring through
the hole cutout
3. Align the rails parallel to each other and press the tile bridge ring down to secure the ring to the rails.
q
Preparing Acoustic Ceiling Tile
1. Remove the existing loudspeaker from the
ceiling. See the loudspeaker's installation guide
for more information.
2. Remove the ceiling tile.
3. Remove the existing tile bridge (if applicable).
4. Place the assembled tile bridge across the
ceiling grid. If necessary, adjust the tile bridge
so the rails rest on the ceiling grid.
5. Replace the tile in the ceiling.
Preparing Hard Ceiling (Existing Construction)
1. Remove the existing loudspeaker from the
ceiling. See the loudspeaker's installation
guide for more information.
2. Remove the existing tile bridge (if
applicable).
3. Insert the tile bridge rails and ring through
the hole and place the rails parallel to each
other across the ceiling grid or ceiling
furring.
4. Assemble the tile bridge.
Using a Safety Cable
Some regional construction codes require the use of a
secondary method of securing loudspeakers to support
structures to provide additional safety. Choose a mounting
position, method, and hardware consistent with local
building codes and regulations.
Bose recommends using (1) a safety wire as a secondary
securing mechanism. See the diagram for safety
attachment points.
Follow the manufacturer's instructions for any secondary
securing mechanism implemented.
