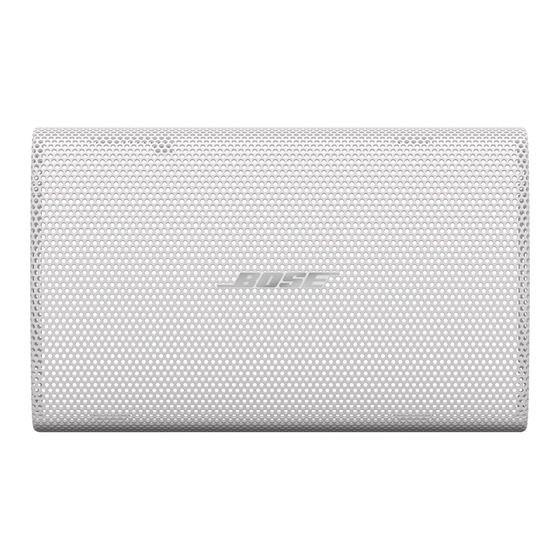

Bose Professional FreeSpace FS2SE Installation Manual

Surface-mount loudspeaker
Hide thumbs Also See for FreeSpace FS2SE:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2
Guía de instalación . . . . . . . . . . . . . . . . . . . . . 9
Notice d'installation . . . . . . . . . . . . . . . . . . . 16
Installationsanleitung . . . . . . . . . . . . . . . . . . 23
Guida all'installazione . . . . . . . . . . . . . . . . . . 30
Installatiehandleiding . . . . . . . . . . . . . . . . . . 37
FreeSpace FS2SE
Surface-mount Loudspeaker
Monteringsveiledning . . . . . . . . . . . . . . . . . . 44
Instrukcja montażu . . . . . . . . . . . . . . . . . . . . .51
安装指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
安裝指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
設置ガイド . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
79
‫دليل التركيب‬

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FreeSpace FS2SE and is the answer not in the manual?

Questions and answers

Related Manuals for Bose Professional FreeSpace FS2SE

Summary of Contents for Bose Professional FreeSpace FS2SE

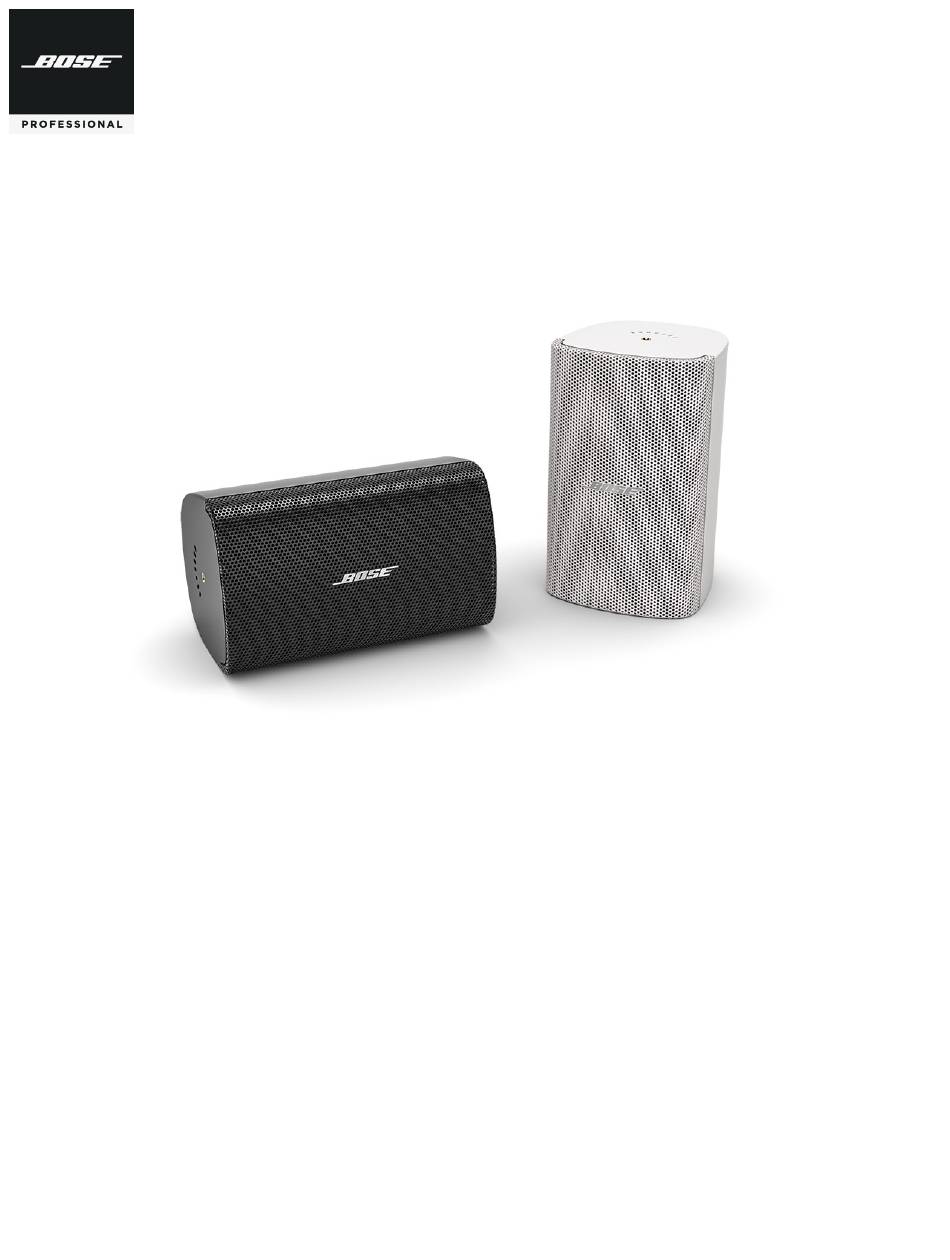

  • Page 1 FreeSpace FS2SE Surface-mount Loudspeaker Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2 Monteringsveiledning .

  • Page 2: Important Safety Instructions

    Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or This symbol means the product must not be discarded as household waste, and distributor near you, visit PRO.BOSE.COM.

  • Page 3: Product Dimensions

    Before installing the loudspeaker, review Important data sheet at PRO.BOSE.COM. For EN 54-24 specifications Safety Instructions on page 2. (including required external EQ), see the FreeSpace FS2SE EN 54- 24 certified ratings (AM857612 Rev. 00) at PRO.BOSE.COM. For fire and evacuation notification applications, environmental rated to IP33C per EN 54-24.

  • Page 4: Installation Options And Accessories

    Note: Flexible conduits and couplings must be UL Listed, suitable for the application, and installed in accordance with the local authorities having jurisdiction. 4 • English FreeSpace FS2SE • Installation Guide...

  • Page 5: Wiring The Loudspeaker

    Setup PRO.BOSE.COM Wiring the Loudspeaker Wire Gauge The FreeSpace FS2SE loudspeaker is designed to work with 18 AWG (0.8 mm ) to 14 AWG (2.1 mm ) size wire only. Connection Diagrams Expose six millimeters (1/4 inch) of bare wire to attach to the terminals.

  • Page 6: Installation

    Loudspeaker on page 5. Ceramic Terminal Attachment Point The FreeSpace FS2SE is compatible with an optional ceramic terminal accessory. See the diagram for the location of the ceramic terminal attachment point. For more information on the ceramic terminal, see the ceramic terminal installation guide at PRO.BOSE.COM.

  • Page 7: Installing The Loudspeaker

    Locate the extended grille tab on the inside of the grille. Attach the grille by sliding it into place. Be sure the extended grille tab attaches to the grille lock on the loudspeaker enclosure. 45° 30° 15° 0° 15° 30° 45° Installation Guide • FreeSpace FS2SE English • 7...

  • Page 8: Safety And Regulatory Compliance

    Adjusting the Logo The FreeSpace FS2SE comes with a pre-installed Bose logo for horizontal installations. The loudspeaker also comes with a separate logo for vertical installations. To remove the logo, peal it away from the loudspeaker grille. To apply the vertical logo, find the center of the grille and align the notches on the back of the logo with the grille perforation.
  • Page 9 ©2020 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM861342 Rev. 00 June 2020...

  • Page 10: Technical Data

    TECHNICAL DATA FreeSpace FS2SE surface-mount loudspeaker Product Overview FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation — all with remarkably consistent tonality.
  • Page 11 Aluminum Grille kit (2-pack), DesignMax DMSBRKT pan-and-tilt bracket (for indoors), Ceiling Mount Bracket S2, Ceramic Terminal and Thermal Fuse Kit (10-pack) PRODUCT CODES 841151-0310 FREESPACE FS2SE PAIR BLK 841151-0410 FREESPACE FS2SE PAIR WHT Footnotes (1) Frequency response and range measured on-axis in half-space environment with recommended EQ (2) Sensitivity measured on-axis in half-space environment averaged 100 Hz –...
  • Page 12 FreeSpace FS2SE surface-mount loudspeaker On-Axis Frequency Response Bose EQ Voicing Raw (HPF only) 1000 10000 20000 Frequency (Hz) Impedance 1000 10000 20000 Frequency (Hz) Beamwidth Horizontal Vertical 1000 10000 20000 Frequency (Hz) PRO.BOSE.COM OF 4...
  • Page 13 FreeSpace FS2SE surface-mount loudspeaker Dimensions For additional specifications and application information, please visit PRO.BOSE.COM. Specifications subject to change without notice. 07/2020 PRO.BOSE.COM OF 4...
  • Page 14 FreeSpace FS2SE Surface-mount Loudspeaker EN 54-24 Certified Ratings EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings EN 54-24 Certified Ratings Frequency Range 100 Hz to 10 kHz Sensitivity (1 W @ 4 m) 70.0 dB...
