FreeSpace FS2P

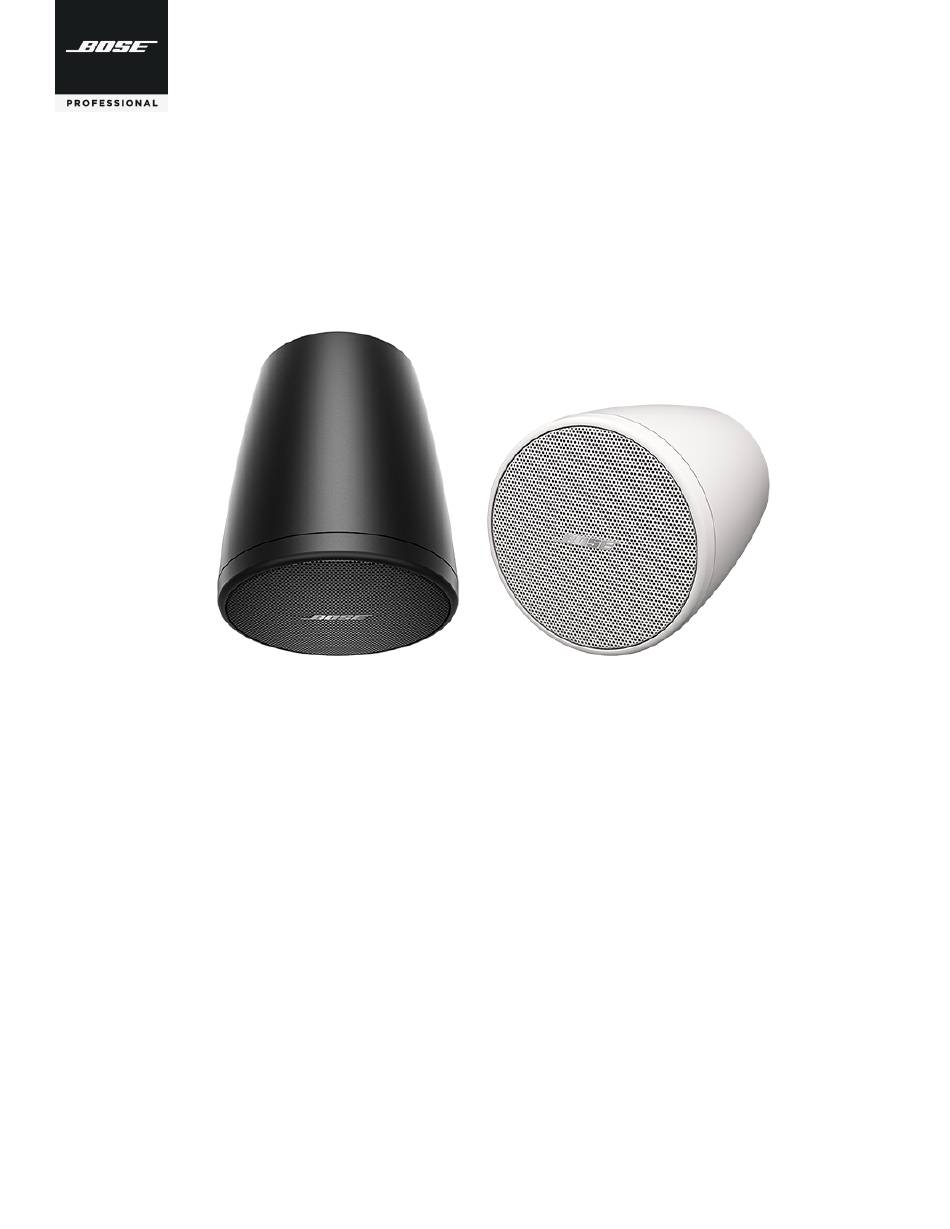

Pendant Loudspeaker
Monteringsveiledning . . . . . . . . . . . . . . . . . . 32
Instrukcja montażu . . . . . . . . . . . . . . . . . . . . 37
安装指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
安裝指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
設置ガイド . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
57
دليل التركيب
Advertisement
Related Manuals for Bose Professional FreeSpace FS2P
Summary of Contents for Bose Professional FreeSpace FS2P
- Page 1 FreeSpace FS2P Pendant Loudspeaker Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2 Monteringsveiledning .
- Page 2 • Do not paint the cable fastener or any other part of the cable assembly. Bose Corporation, Framingham, MA 01701, U.S.A. 1-877-230-5639 • If using a cable system not supplied by Bose Professional, the working load limit must ©2023 Transom Post OpCo LLC. No part of this work may be reproduced, modified, distributed be equal to or greater than the supplied cable system.
-
Page 3: Package Contents
. For EN 54-24 specifications Safety Instructions on page 2. (including required external EQ), see the FreeSpace FS2P EN 54- 24 certified ratings (AM857610 Rev. 01) at For fire and evacuation notification applications, environmental rated to IP21C per EN 54-24. -
Page 4: Wiring The Loudspeaker
In and Out Wide Open Wiring the Loudspeaker Wire Gauge The FreeSpace FS2P loudspeaker is designed to work with 18 AWG (0.8 mm ) to 14 AWG (2.1 mm ) size wire only. Connection Diagrams Expose six millimeters (1/4 inch) of bare wire to attach to the terminals. -
Page 5: Preparing The Installation
Line up the grille with the inside of the loudspeaker enclosure so that the two smallest grille tabs are on either side of the tap switch. Push the grille on the loudspeaker until it is secured into place. If necessary, push the grille tabs inward to properly fit into the loudspeaker enclosure. Installation Guide • FreeSpace FS2P English • 5... -
Page 6: Safety And Regulatory Compliance
NFPA 90-A, 2002, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.10.2.6.5. EMC Directive 89/336/EEC and Article 10 (1) of the directive, EN50081-1 and EN50082-1 as signified by the CE mark. The FreeSpace FS2P loudspeaker has been designed to the requirements defined in the following European regulatory specification for combination systems: British Standard Code of Practice BS 5839, Part 8, when used with the ceramic terminal block and thermal fuse.
Need help?
Do you have a question about the FreeSpace FS2P and is the answer not in the manual?
Questions and answers
