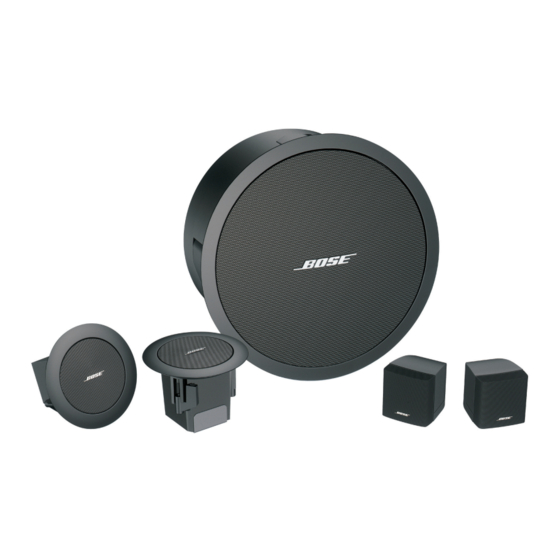

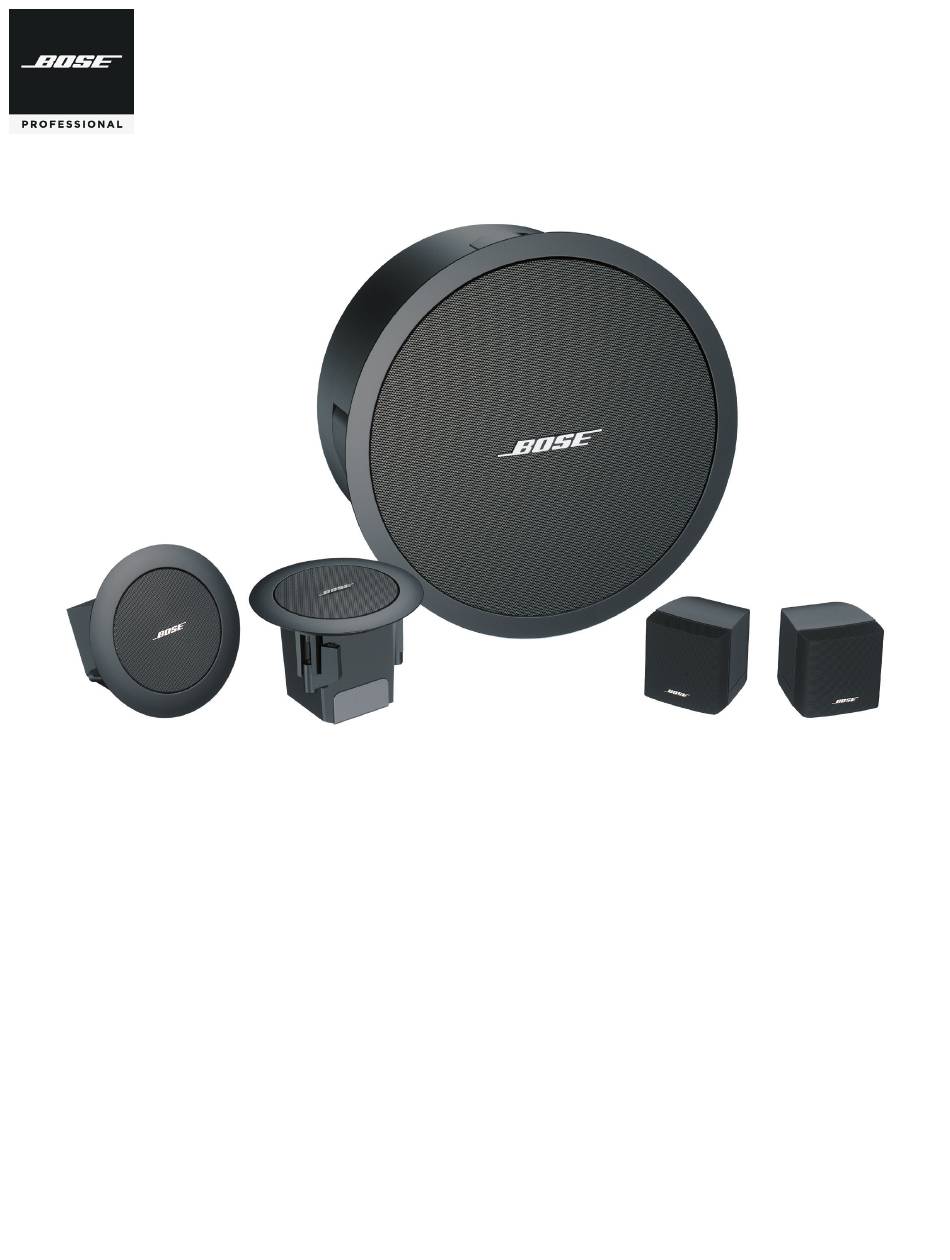

- Page 1 FreeSpace 3 Series II Acoustimass Bass Module Flush-mount Satellites Surface-mount Satellites Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2 Monteringsveiledning .
-
Page 2: Important Safety Instructions
Do not attempt to service this product yourself. Refer all servicing to authorized service centers, and recycling helps protect natural resources, human health and the environment. installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or For more information on disposal and recycling of this product, contact your local distributor near you, visit PRO.BOSE.COM. -
Page 3: Package Contents
Overview PRO.BOSE.COM Package Contents Series II Acoustimass Bass Module Flush-mount Surface-mount Satellites Satellites × 2 × 2 × 2 × 2 × 1 × 1 Product Dimensions Series II Acoustimass Bass Module 205 mm (8.1 in) 356 mm 347 mm 391 mm 356 mm (14.0 in) (13.6 in) (15.4 in) (14.0 in) 189 mm... -
Page 4: Technical Specifications
Overview PRO.BOSE.COM Surface-mount 149 mm 77 mm Satellites (5.9 in) (3.0 in) 48 mm (1.9 in) 67 mm 77 mm 77 mm (2.6 in) (3.0 in) (3.0 in) 41 mm (1.6 in) 149 mm (5.9 in) 102 mm (4.0 in) 20 mm (0.8 in) 77 mm 43 mm (1.7 in) 41 mm (1.6 in) (3.0 in) 16 mm (0.6 in) 18 mm (0.7 in) 18 mm (0.7 in) Technical Specifications For additional specification, instructions, and technical information about any FreeSpace loudspeaker, visit bosepro.link/freespace. Series II Acoustimass Bass Module Flush-mount Satellites Surface-mount Satellites... -
Page 5: Important Installation Information
Setup PRO.BOSE.COM Important Installation Information It is the installer’s responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product. -
Page 6: Wiring The Loudspeaker
Setup PRO.BOSE.COM Wiring the Loudspeaker Wire Gauge FreeSpace 3 loudspeakers are designed to work with 18 AWG (0.8 mm ) to 14 AWG (2.1 mm ) size wire only. Wiring Terminals Series II Acoustimass bass module: Remove the Flush-mount Satellites: Remove the Surface-mount Satellites: Push and rear cover plate to access the wiring terminals. - Page 7 Setup PRO.BOSE.COM Transformer Bypass (Direct Mono) Transformer Bypass (Direct Stereo) To bypass the transformer and prepare the loudspeaker for 4Ω To bypass the transformer and prepare the loudspeaker for 6Ω use and mono sound input, remove the two jumpers from the use and stereo sound input, remove all jumper wires.
-
Page 8: Preparing The Installation
Setup PRO.BOSE.COM Preparing the Installation Loudspeaker Placement Note: Installation in close proximity to cooking surfaces where the loudspeaker may be directly exposed to cooking oils, steam, vapor, or high heat such as in commercial cooking environments may decrease the performance or reliability of the loudspeaker. Using a Safety Cable Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. -
Page 9: Mounting The Loudspeaker
Installation PRO.BOSE.COM Mounting the Loudspeaker Series II Acoustimass Bass Module Make sure all loudspeaker wiring connections are complete. For wiring information, see Wiring the Loudspeaker (Page 6). Insert the loudspeaker through the hole and into the tile bridge or rough-in pan. Continue to hold the loudspeaker in place. Tighten the anchor arm screws to secure the loudspeaker. - Page 10 Installation PRO.BOSE.COM Surface-mount Satellites Loosen the screw connecting the loudspeaker arm to the wall-mount bracket, and separate the two parts. Separate the rear plate from the cover the wall-mount bracket. Use the template to mark the center of all four screw holes on the wall. Insert four M4 (#10) screws to attach the wall-mount bracket plate to the wall.
- Page 11 ©2019 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM263579 Rev. 03 October 2019...
