iTero Element 5D and iTero Element 5D Plus imaging systems User manual

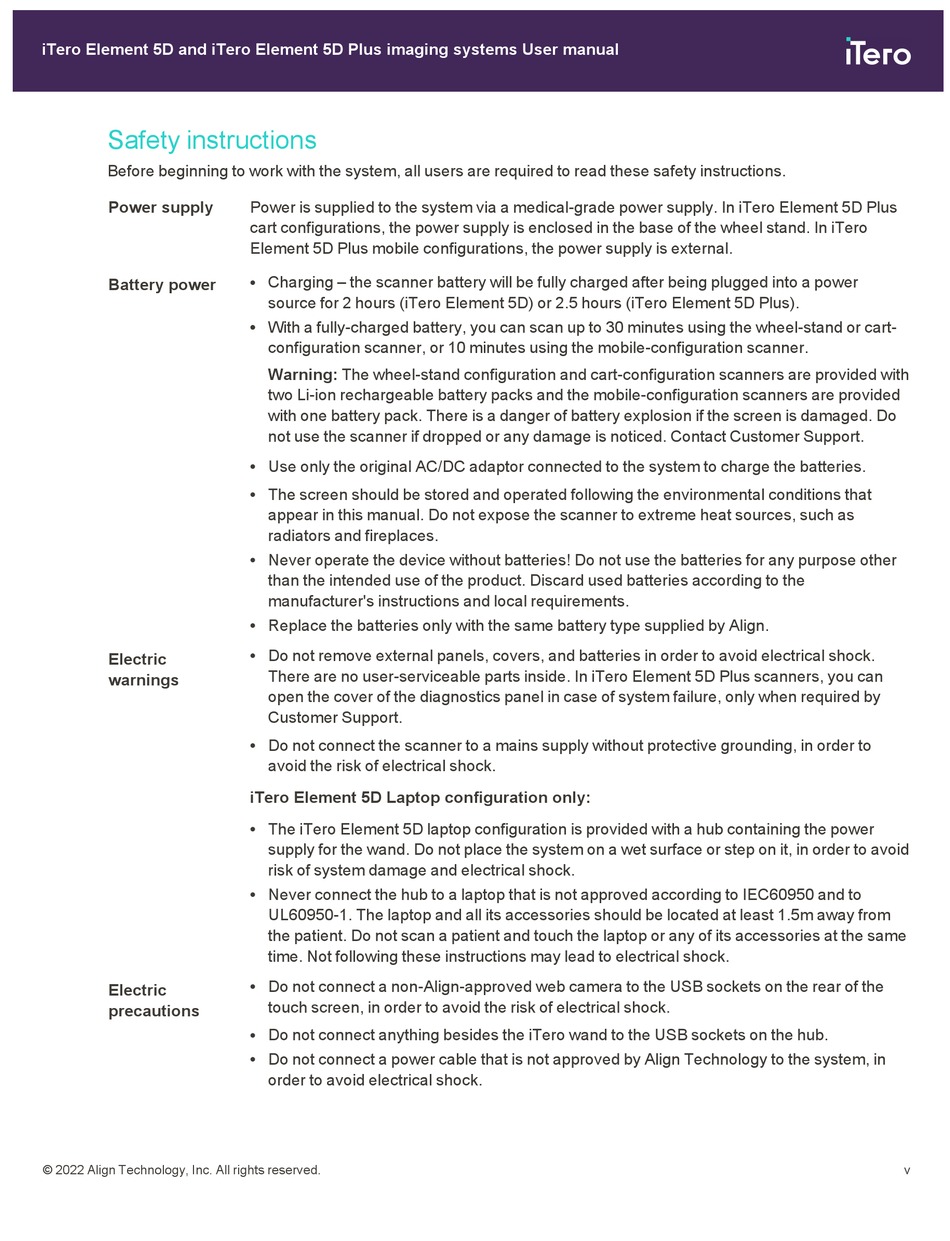

Safety instructions
Before beginning to work with the system, all users are required to read these safety instructions.
Power supply
Battery power
Electric
warnings
Electric
precautions
© 2022 Align Technology, Inc. All rights reserved.
Power is supplied to the system via a medical-grade power supply. In iTero Element 5D Plus
cart configurations, the power supply is enclosed in the base of the wheel stand. In iTero
Element 5D Plus mobile configurations, the power supply is external.
Charging – the scanner battery will be fully charged after being plugged into a power
l
source for 2 hours (iTero Element 5D) or 2.5 hours (iTero Element 5D Plus).
With a fully-charged battery, you can scan up to 30 minutes using the wheel-stand or cart-
l l
configuration scanner, or 10 minutes using the mobile-configuration scanner.
Warning: The wheel-stand configuration and cart-configuration scanners are provided with
two Li-ion rechargeable battery packs and the mobile-configuration scanners are provided
with one battery pack. There is a danger of battery explosion if the screen is damaged. Do
not use the scanner if dropped or any damage is noticed. Contact Customer Support.
Use only the original AC/DC adaptor connected to the system to charge the batteries.
l
The screen should be stored and operated following the environmental conditions that
l
appear in this manual. Do not expose the scanner to extreme heat sources, such as
radiators and fireplaces.
Never operate the device without batteries! Do not use the batteries for any purpose other
l
than the intended use of the product. Discard used batteries according to the
manufacturer's instructions and local requirements.
Replace the batteries only with the same battery type supplied by Align.
l
Do not remove external panels, covers, and batteries in order to avoid electrical shock.
l
There are no user-serviceable parts inside. In iTero Element 5D Plus scanners, you can
open the cover of the diagnostics panel in case of system failure, only when required by
Customer Support.
Do not connect the scanner to a mains supply without protective grounding, in order to
l
avoid the risk of electrical shock.
iTero Element 5D Laptop configuration only:
The iTero Element 5D laptop configuration is provided with a hub containing the power
l
supply for the wand. Do not place the system on a wet surface or step on it, in order to avoid
risk of system damage and electrical shock.
Never connect the hub to a laptop that is not approved according to IEC60950 and to
l
UL60950-1. The laptop and all its accessories should be located at least 1.5m away from
the patient. Do not scan a patient and touch the laptop or any of its accessories at the same
time. Not following these instructions may lead to electrical shock.
Do not connect a non-Align-approved web camera to the USB sockets on the rear of the
l
touch screen, in order to avoid the risk of electrical shock.
Do not connect anything besides the iTero wand to the USB sockets on the hub.
l
Do not connect a power cable that is not approved by Align Technology to the system, in
l
order to avoid electrical shock.
