Initial assembly

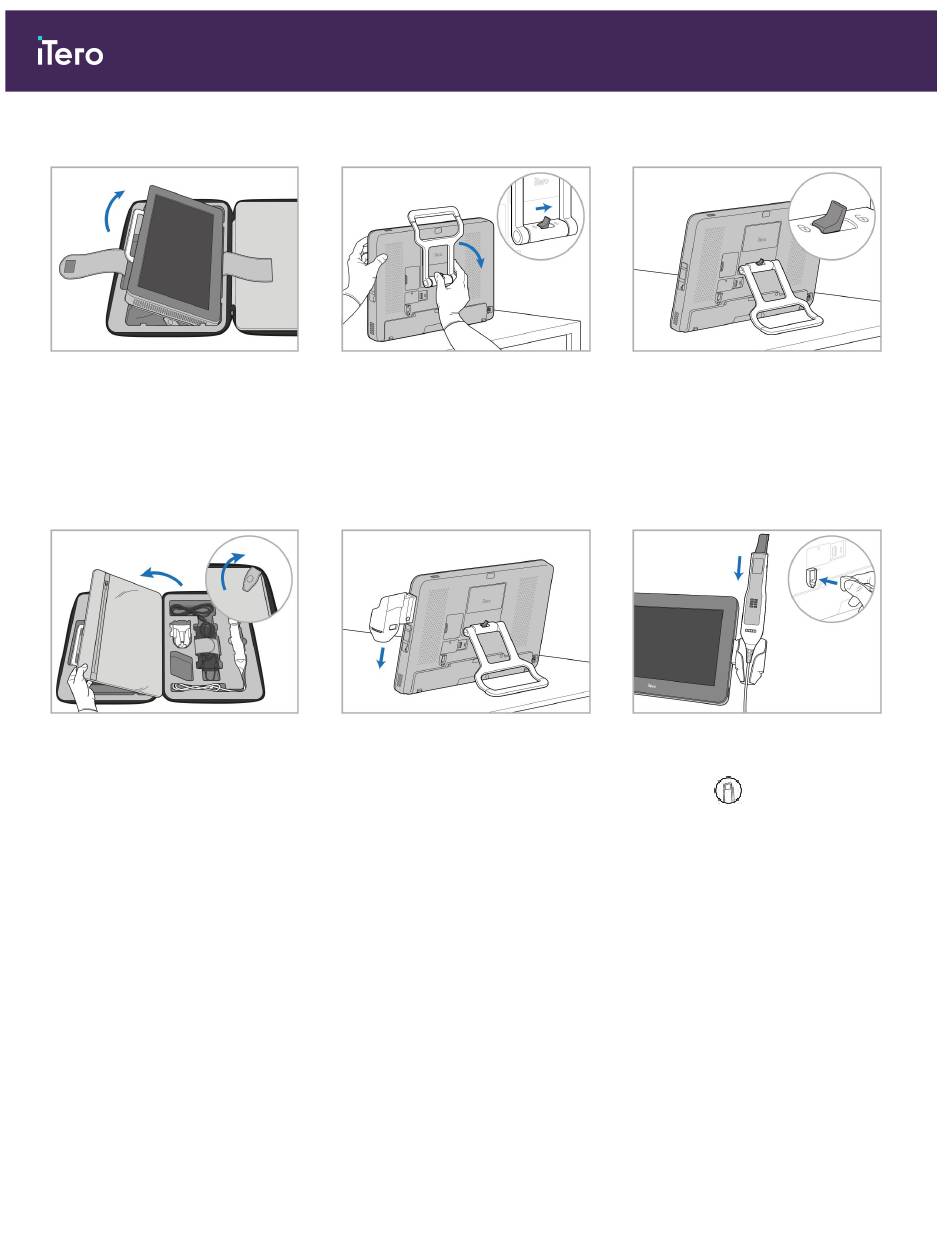

1. Lay the iTero trolley down, with the
iTero logo facing up.
2. Unzip the trolley, undo the strap
holding the computing unit, and
remove it using the handle.
5. Open the flap to remove the rest of
the scanner components.
26
iTero Element 5D and iTero Element 5D Plus imaging systems User manual
3. Rest the computing unit on a
smooth, flat surface and hold with
one hand.
Slide the locking latch to the right
until you feel a click, to unlock the
handle.
6. Slide down the cradle on the slider
on the side of the computing unit
until it clicks into place. Make sure
the cradle is secure and cannot be
pulled up.
4. Move the handle down to standing
position. Ensure that the handle is
securely locked in place by trying to
pull it back up.
7. Place the wand in the cradle and
connect the wand cable to the port
marked at the back of the
computing unit.
