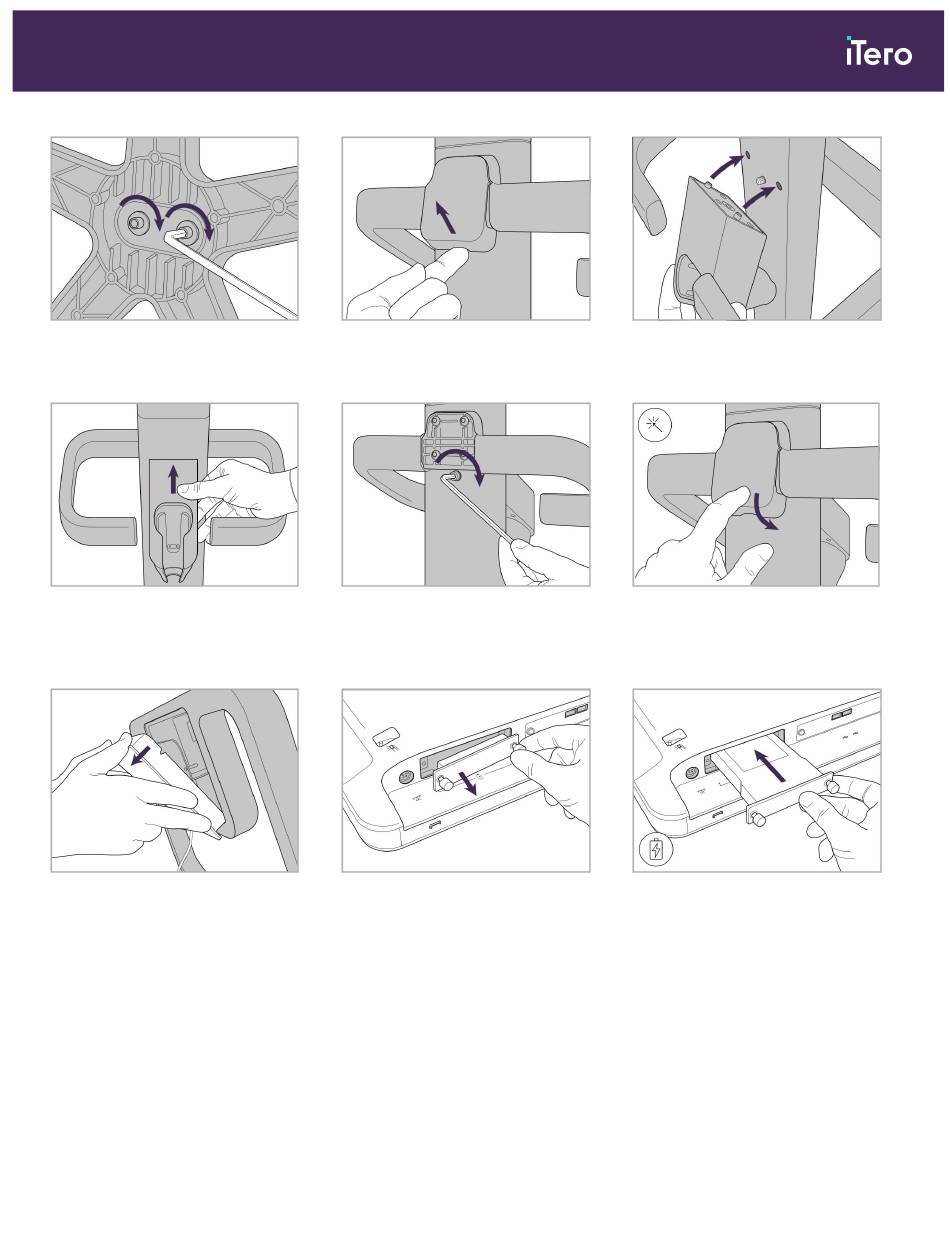

3. Tighten the two Allen screws using
the larger Allen key.
6. Hold the cradle.
9. Remove the magnetic cover from
the back of the
wheel- stand frame.
© 2022 Align Technology, Inc. All rights reserved.
4. Remove the cover from the back of
the handle.
7. Tighten the back of the wand cradle
with the Allen screw using the
smaller Allen key.
10. Loosen the thumbscrews and
remove the battery cover.
5. Attach the wand cradle to the front
of the wheel stand.
8. Reattach the cover behind the
handle.
11. Slide the battery into the battery slot
and tighten the thumbscrews.
