iTero Element 5D and iTero Element 5D Plus imaging systems User manual

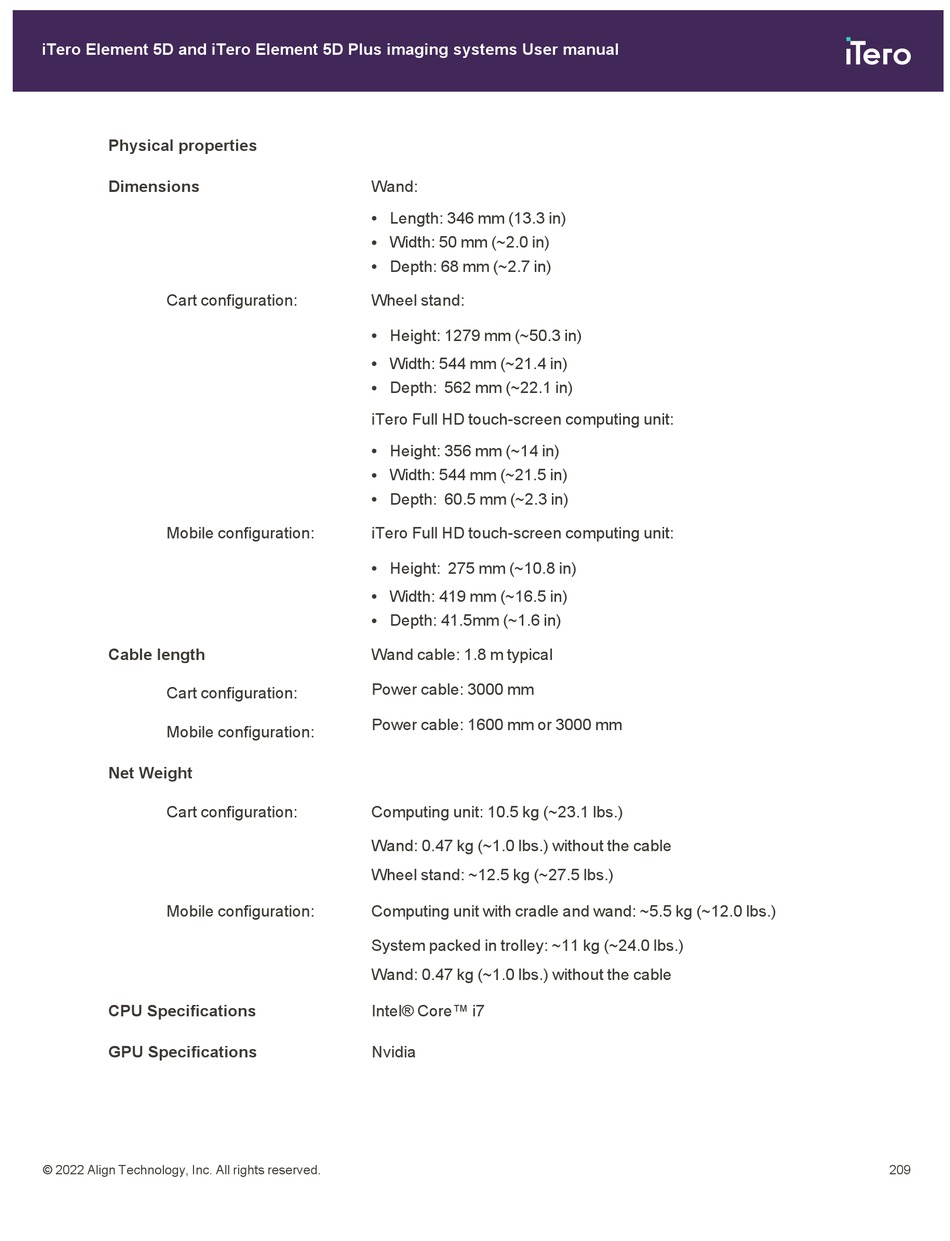

Physical properties
Dimensions
Cart configuration:
Mobile configuration:
Cable length
Cart configuration:
Mobile configuration:
Net Weight
Cart configuration:
Mobile configuration:
CPU Specifications
GPU Specifications
© 2022 Align Technology, Inc. All rights reserved.
Wand:
Length: 346 mm (13.3 in)
l
Width: 50 mm (~2.0 in)
l
Depth: 68 mm (~2.7 in)
l
Wheel stand:
Height: 1279 mm (~50.3 in)
l
Width: 544 mm (~21.4 in)
l
Depth: 562 mm (~22.1 in)
l
iTero Full HD touch-screen computing unit:
Height: 356 mm (~14 in)
l
Width: 544 mm (~21.5 in)
l
Depth: 60.5 mm (~2.3 in)
l
iTero Full HD touch-screen computing unit:
Height: 275 mm (~10.8 in)
l
Width: 419 mm (~16.5 in)
l
Depth: 41.5mm (~1.6 in)
l
Wand cable: 1.8 m typical
Power cable: 3000 mm
Power cable: 1600 mm or 3000 mm
Computing unit: 10.5 kg (~23.1 lbs.)
Wand: 0.47 kg (~1.0 lbs.) without the cable
Wheel stand: ~12.5 kg (~27.5 lbs.)
Computing unit with cradle and wand: ~5.5 kg (~12.0 lbs.)
System packed in trolley: ~11 kg (~24.0 lbs.)
Wand: 0.47 kg (~1.0 lbs.) without the cable
Intel® Core™ i7
Nvidia
