iTero Element 5D and iTero Element 5D Plus imaging systems User manual
A brightness and contrast adjustment toolbar is displayed on each of the windows in the image pane. By
default, the brightness level is set to the lowest position and the contrast is set to the middle position.

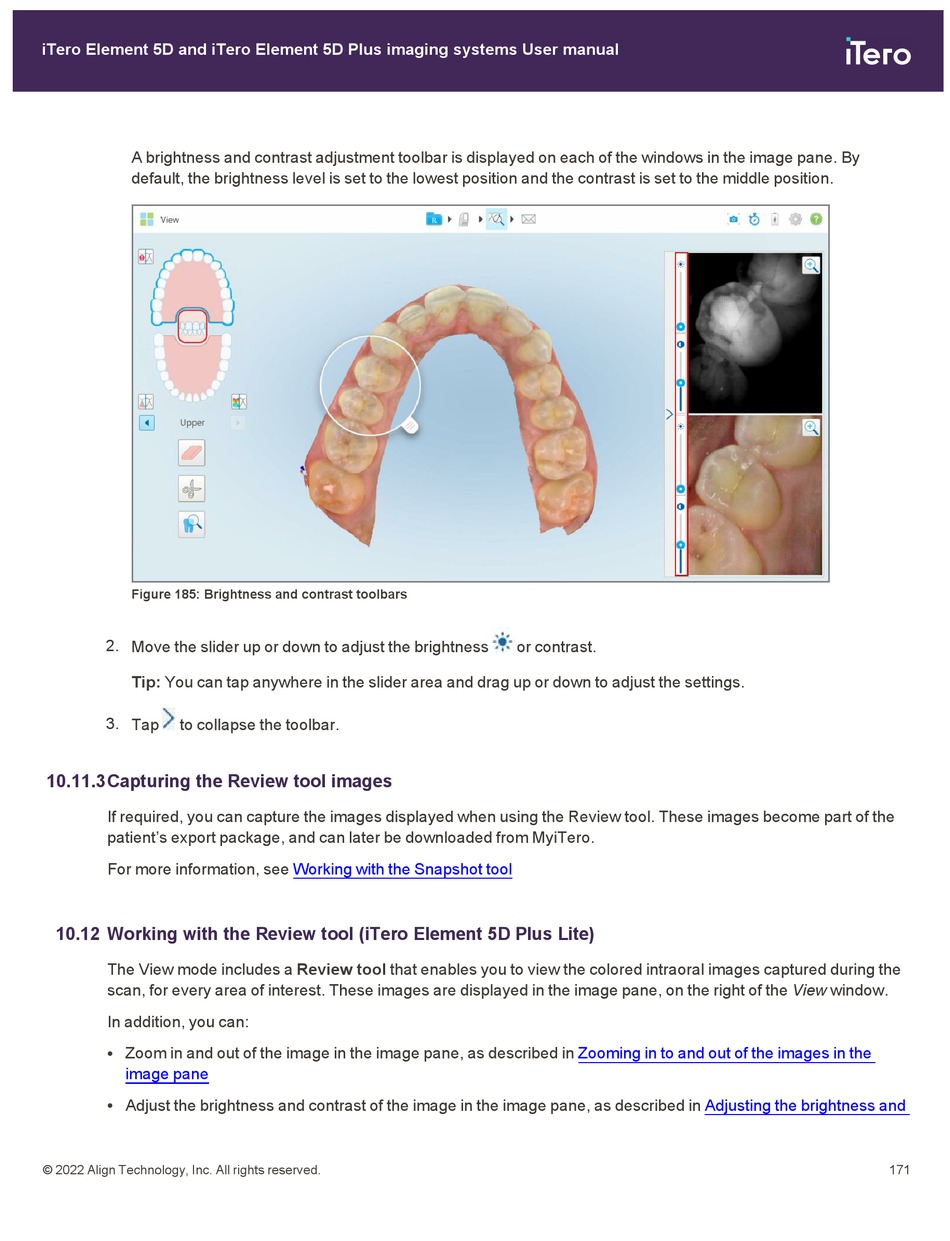

Figure 185: Brightness and contrast toolbars

2. Move the slider up or down to adjust the brightness
Tip: You can tap anywhere in the slider area and drag up or down to adjust the settings.
3. Tap
to collapse the toolbar.

10.11.3Capturing the Review tool images

If required, you can capture the images displayed when using the Review tool. These images become part of the
patient's export package, and can later be downloaded from MyiTero.
For more information, see

10.12 Working with the Review tool (iTero Element 5D Plus Lite)

The View mode includes a Review tool that enables you to view the colored intraoral images captured during the
scan, for every area of interest. These images are displayed in the image pane, on the right of the View window.
In addition, you can:
Zoom in and out of the image in the image pane, as described in
l
image pane
Adjust the brightness and contrast of the image in the image pane, as described in
l
© 2022 Align Technology, Inc. All rights reserved.
Working with the Snapshot tool
or contrast.
Zooming in to and out of the images in the
Adjusting the brightness and
171
