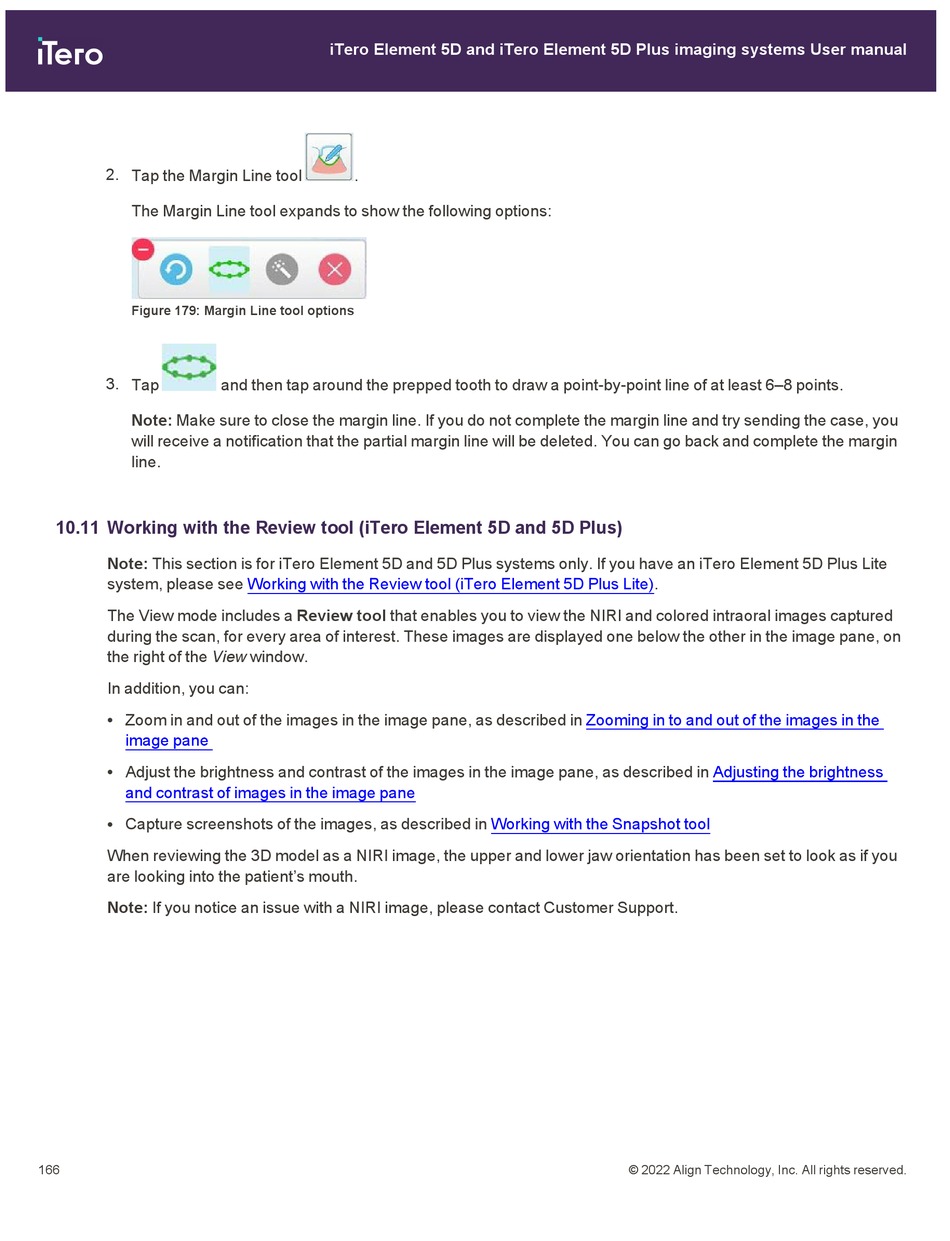

Working With The Review Tool (Itero Element 5D And 5D Plus); Figure 179: Margin Line Tool Options - Align Technology iTero Element 5D User Manual

2. Tap the Margin Line tool
The Margin Line tool expands to show the following options:

Figure 179: Margin Line tool options

3. Tap
Note: Make sure to close the margin line. If you do not complete the margin line and try sending the case, you
will receive a notification that the partial margin line will be deleted. You can go back and complete the margin
line.

10.11 Working with the Review tool (iTero Element 5D and 5D Plus)

Note: This section is for iTero Element 5D and 5D Plus systems only. If you have an iTero Element 5D Plus Lite
system, please see
The View mode includes a Review tool that enables you to view the NIRI and colored intraoral images captured
during the scan, for every area of interest. These images are displayed one below the other in the image pane, on
the right of the View window.
In addition, you can:
Zoom in and out of the images in the image pane, as described in
l
image pane
Adjust the brightness and contrast of the images in the image pane, as described in
l
and contrast of images in the image pane
Capture screenshots of the images, as described in
l
When reviewing the 3D model as a NIRI image, the upper and lower jaw orientation has been set to look as if you
are looking into the patient's mouth.
Note: If you notice an issue with a NIRI image, please contact Customer Support.
166
iTero Element 5D and iTero Element 5D Plus imaging systems User manual
.
and then tap around the prepped tooth to draw a point-by-point line of at least 6–8 points.
Working with the Review tool (iTero Element 5D Plus Lite).
Zooming in to and out of the images in the
Working with the Snapshot tool
