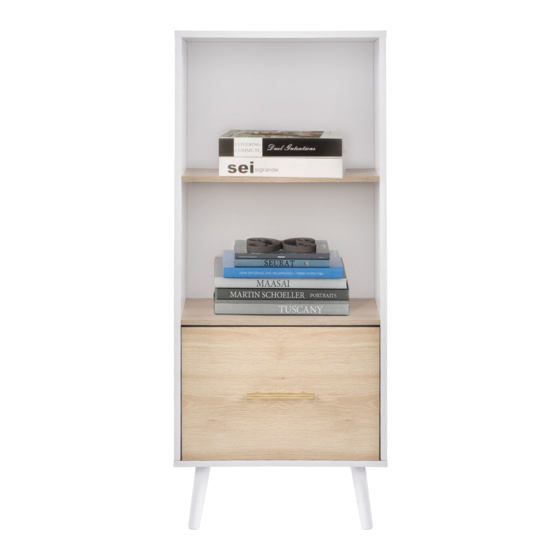

- Page 1 Item No.: H0040 Contact Us: service@anmytek.co m Scandinavian Multipurpose Storage Cabinet with Display Shelves and Drawer ASSEMBLY AND CARE GUIDE 1 PEOPLE 2 x 1 m 1 HOUR ASSEMBLY TIME REQUIRED FOR ASSEMBLY FLOOR SPACE REQUIRED...
-
Page 2: Safety Precautions
Item No.: H0040 Contact Us: service@anmytek.co m SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present before you start the assembly of your furniture. A Philips head screwdriver (not included) is required for the assembled of thisproduct. -
Page 3: Assembly Diagram
Item No.: H0040 Contact Us: service@anmytek.co m Item No.: H0040 ASSEMBLY DIAGRAM AFTER SALES SUPPORT If you have any general enquiries or require spare parts for this product, please : service@anmytek.com... - Page 4 Item No.: H0040 Item No.: H0040 6x35mm 6x30mm 16pcs 16pcs 16pcs 3x12mm 4x35mm 4x20mm 8pcs 2pcs 8pcs 4x14mm Metal Plate 20pcs 4x35mm 3x12mm 4pcs 12pcs 12pcs Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly.
- Page 5 Item No.: H0040 ASSEMBLY STEPS Step 1 4pcs Secure 4 x quickfit screws (A) to panel (3) using a screwdriver. Step 2 8pcs 8pcs 4pcs Find out the correct drawer glides (15) and (16). Fix (15) to panel (1), (16) to panel (2) using 4 x screws (E) with a screwdriver.
- Page 6 Item No.: H0040 Item No.: H0040 ASSEMBLY STEPS Step 3 8pcs Attach 2 x panels (4) to panels (2) using 4 x quickfit screws (B). Screw the quickfit screws clockwise to tighten. Slide the back panel (6) into grooves. Attach panel (1) to assembled unit using 4 x quickfit screws (B). Screw the quickfit screws clockwise to tighten.
- Page 7 Item No.: H0040 ASSEMBLY STEPS Step 20pcs Attach 4 x metal sheets (J) to panel (5) using 20 x screws (I) with a screwdriver. Step 6 4pcs 8pcs 4pcs Attach the top panel (3) to assembled unit using 4 x wooden dowels (C), 4 x quickfit screws (B).
- Page 8 Item No.: H0040 Item No.: H0040 ASSEMBLY STEPS Step 7 4pcs Fix 4 x legs (12) to assembled unit and paste 4 x foot pads (N) onto legs. Step 8 4pcs Attach panel (10) to panel (8), (9) using 4 x screws (D) with a screwdriver.
- Page 9 Item No.: H0040 Item No.: H0040 ASSEMBLY STEPS Step 9 4pcs 4pcs 2pcs Attach handle (F) to panel (7) using 2 x bolts (H). Secure 4 x quickfit screws (A) to panel (7) with a screwdriver. Fix panel (7) to the drawer using 4 x cam locks (B) and tighten with a screwdriver.
-
Page 10: Assembly Steps
Item No.: H0040 ASSEMBLY STEPS Step 11 12pcs 12pcs Fix 12 x plastic wedges (P) to back panels using 12 x screws (o) and tighten with a screwdriver. Step 12 Fix the safety strap (K) to the assembled cabinet using screw (I) and tighten with a screwdriver. - Page 11 Item No.: H0040 WALL FIXING GUIDE NOTE: Supplied wall plugs are only suitable for use in masonry walls. If you have any doubts about using the correct plug for your wall, please seek professional advice. Failure of the product due to using incorrect fixings is the responsibility of the installer.
