ANTAIRA LNP-C501G-SFP-bt-24 Series Quick Installation Manual

Antaira Technologies
LNP-C501G-SFP-bt-24 Series
5-Port Industrial Compact Gigabit IEEE 802.3bt PoE++
Unmanaged Ethernet Switch, 4*10/100/1000TX (90W/Port),
1*100/1000 SFP Slot; 9~55VDC Power Input
Quick Installation Guide
Version 1.0
(May 2022)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Checklist

The package contains the following items:
• 1 – Quick installation guide
• 1 – LNP-C501G-SFP-bt-24(-T)
• 1 – Wall mounting bracket set with screws
• 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
• 1 – Dust cover set

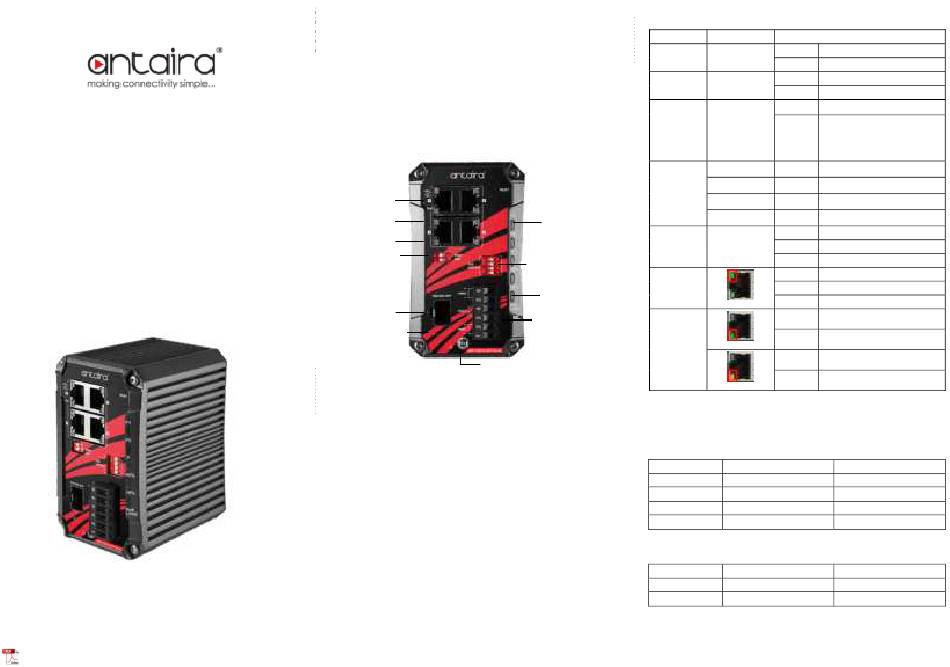

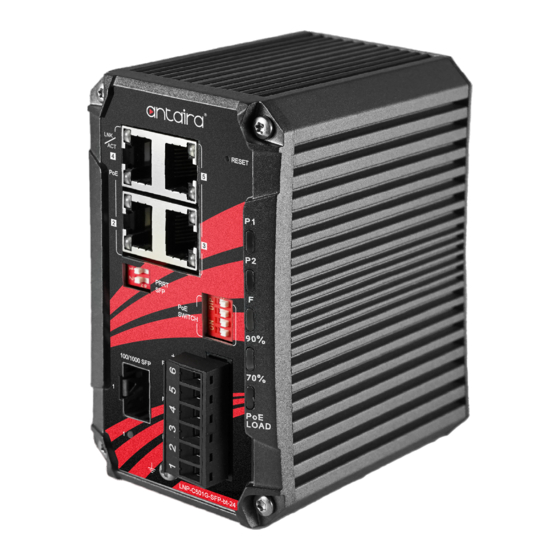

Front Panel Layout

LAN# 2~5 – 10/100/1000Tx RJ45
LAN# 2~5 LED for Link/Activity
Status 10/100/1000Mbps
LAN# 2~5 LED for PoE Status
DIP Switch Setting for PRRT and
SFP Speed
SFP# 1 – 100/1000
SFP# 1 – LED for Link/Activity Status

Product Overview

System Interface/Performance

• All RJ45 ports support the auto MDI/MDI-X function
• Embedded 4*10/100/1000Tx (90W/Port) RJ45 ports and
1*100/1000 SFP slots
• Store-and-Forward switching architecture
• 8K MAC address table
• Supports 10Kbytes jumbo frame
• 1Mbits memory buffer
Power Input & Connection
• DC 9 to 55V redundant power, with a 6-pin removal terminal
block
• It is recommended to use a UL listed industrial power supply
• For bt PoE application(s), the recommended power input
should be not less than 53VDC

Operating Temperature

• Standard operating temperature model: -10°C to 65°C
• Extended operating temperature model: -40°C to 75°C

Case/Installation

• IP40 protection
• DIN-Rail and wall mount design
19020000000194

LED Indicators

LED for Power 1, Power 2, Fault
PoE DIP Switch
LAN Port 2~5
LED for PoE Load Status – 90%, 70%
6-Pin Removal Terminal Block (Power Input)
LAN Port 2~5
Grounding Screw

DIP Switch

The 4-pin DIP switch on the front panel of the Ethernet switch
works as the PoE controller for PoE port 2~5.
DIP Switch Number
The 2-pin DIP switch is used to enable/disable PD Remote Reset
Technology (PRRT) and control SFP speed.
DIP Switch Number
NOTE: The device will reboot when the Dip switch of PRRT and
SFP setting is changed.
LED Color Description
On Power input 1 is active
Power 1 Green
Off Power input 1 is inactive
On Power input 2 is active
Power 2 Green
Off Power input 2 is inactive
Off No event happened
Any of the listed trigger events occur
1. Power 1 or Power 2 is inactive
Fault Red
2. Total PoE loading is > 100% PoE Budget
On
3. PoE over current (per port)
4. Cable short (per port)
5. One of the channels in Dual PD fail
- Off PoE Load ≤50%
Blue On PoE Load 51~70%
PoE Load
Blue & Red On PoE Load 71~90%
Blue & Red
On PoE Load 91~100%
(Red flashing)
On Connected to network, 100 or 1000Mbps
SFP Port Green Flashing Networking is active
Off Not connected to network
On Connected to network, 10/100/1000Mbps
LNK/ACT Flashing Networking is active, 10/100/1000Mbps
(Upper LED)
Off Not connected to network
Green
IEEE 802.3bt connection
On (Single Signature PD Class 5~8/Dual
Signature PD Channel Class 1~5)
No powered-device attached or power
Off
supplying fails
Green
PoE Mode
(Lower LED) IEEE 802.3af/at connection
On
(Single Signature PD Class 0~4)
No powered-device attached or power
Off
supplying fails
Amber
ON (Default)
PoE DIP Switch 1 Enable Port 2 PoE Function
PoE DIP Switch 2 Enable Port 3 PoE Function
PoE DIP Switch 3 Enable Port 4 PoE Function
PoE DIP Switch 4 Enable Port 5 PoE Function
ON
DIP Switch 1 Enable PRRT Function
DIP Switch 2 Control SFP speed at 100Mbps
OFF
Disable Port 2 PoE Function
Disable Port 3 PoE Function
Disable Port 4 PoE Function
Disable Port 5 PoE Function
OFF (Default)
Disable PRRT Function
Control SFP speed at 1Gbps
