Antaira Technologies

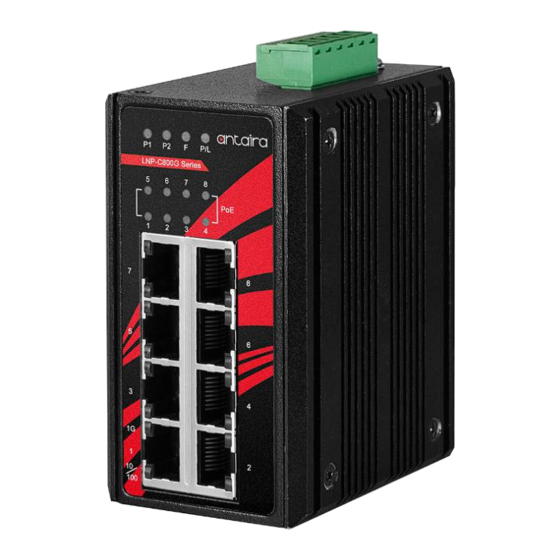

LNP-C800G Series
8-Port Industrial Compact Gigabit PoE+ Unmanaged Ethernet
Switch, with 8*10/100/1000Tx (30W/Port)
Quick Installation Guide
Version 1.0
(Oct 2023)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
1 – Quick installation guide
1 – LNP-C800G(-T)
1 – Wall mounting bracket set with screws
1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
1 – Dust cover set

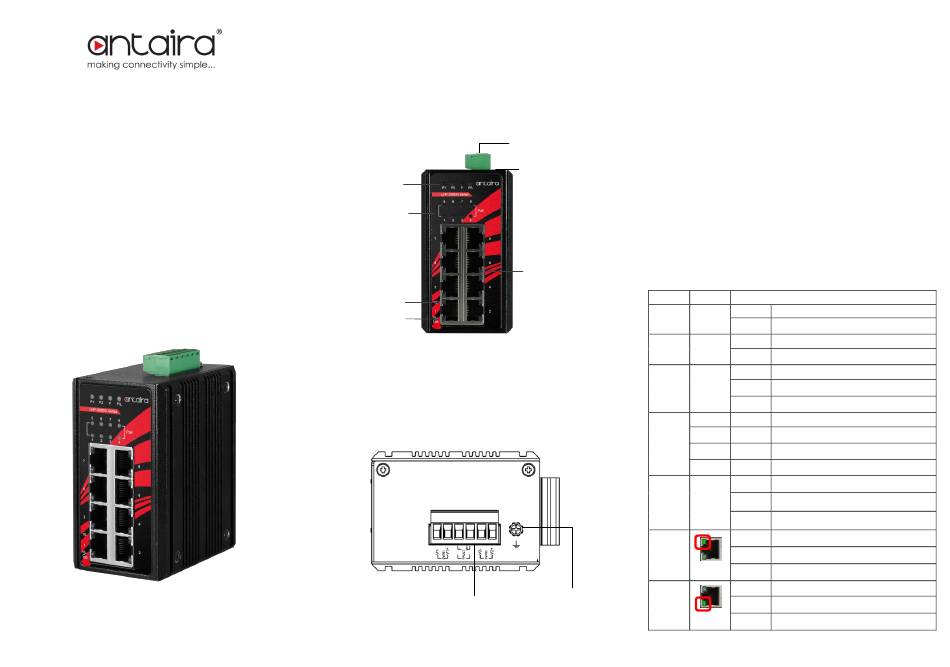

Front Panel Layout
LED for Power 1, Power 2, Fault, and
PoE Load
LED for PoE # 1~8
LAN# 1~8 LED for Link/Activity Status
1000Mbps
LAN# 1~8 LED for Link/Activity Status
10/100Mbps
Top Panel View
LNP-C800G series top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(48~55VDC).
6-Pin Removal Terminal Block (Power Input)
19020000000207
Product Overview
System Interface/Performance
All RJ45 ports support the auto MDI/MDI-X function
Ethernet connectivity 8*10/100/1000Tx RJ45 ports
(30W/Port)
Store-and-forward switching architecture
4K MAC address table
Power Input & Connection
DC 48 to 55V redundant power, with a 6-pin removal
terminal block
6-Pin Removal Terminal Block (Power Input)
It is recommended to use a UL listed industrial power supply
Operating Temperature
Grounding Screw
Standard operating temperature model: -10°C to 65°C
Extended operating temperature model: -40°C to 75°C
Case/Installation
IP30 protection
DIN-Rail and wall mount design
LED Indicators
LAN# 1~8 – 10/100/1000Tx RJ45
LED
Power 1
Power 2
Fault
PoE
Loading
PoE
LAN Port
1~8
(Upper
LED)
LAN Port
Grounding Screw
1~8
(Lower
LED)
Color
Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
When the main Power input source is lower than 45V or
Flashing
Red
higher than 57V
Off
Both power input 1 and 2 are active
Blue
The actual PoE Consumption of all connected working PDs
Off
budget was ≤50%
Red
The actual PoE Consumption of all connected working PDs
Blue
On
budget was 51 - 70%
The actual PoE Consumption of all connected working PDs
Red
On
budget was 71 - 90%
The actual PoE Consumption of all connected working PDs
Red
Flashing
budget was 91 - 100%
On
The port is supplying power to the powered-device
Flashing
Per port PoE Overload
Green
Off
No powered-device attached or power supplying fails
On
Connected to network, 1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
