ANTAIRA LNP-C501G-SFP-bt Series Quick Installation Manual

Antaira Technologies
LNP-C501G-SFP-bt Series
5-Port Industrial Compact Gigabit IEEE 802.3bt PoE++
Unmanaged Ethernet Switch, 4*10/100/1000TX (90W/Port),
1*100/1000 SFP Slot
Quick Installation Guide
Version 1.0
(May 2022)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Checklist

The package contains the following items:
1 – Quick installation guide
•
1 – LNP-C501G-SFP-bt(-T)
•
1 – Wall mounting bracket set with screws
•
1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
•
1 – Dust cover set
•

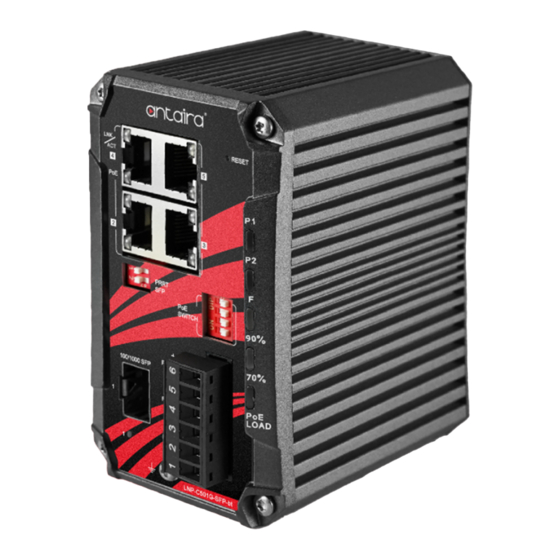

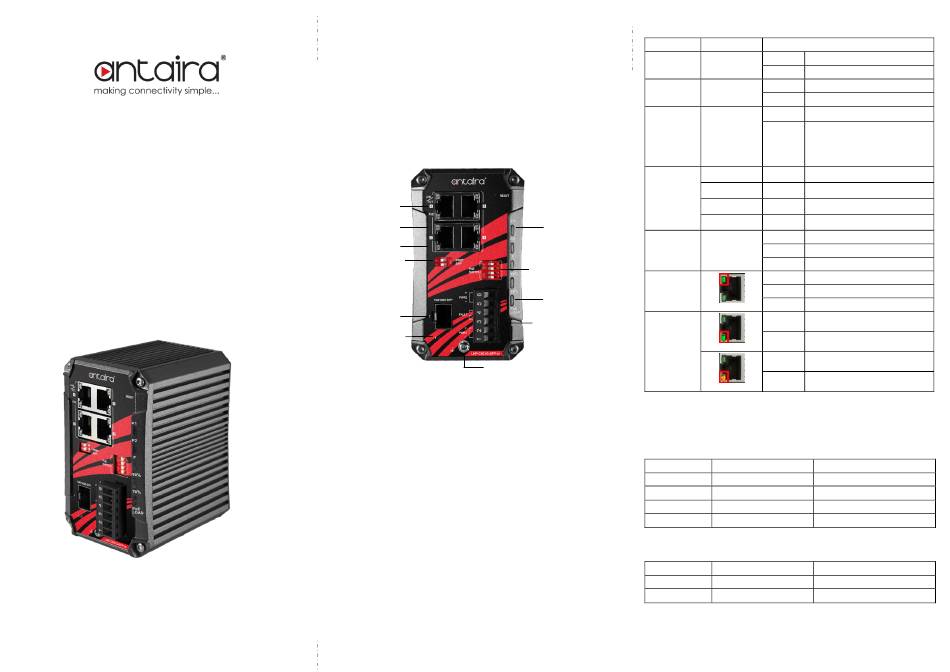

Front Panel Layout

LAN# 2~5 – 10/100/1000Tx RJ45
LAN# 2~5 LED for Link/Activity
Status 10/100/1000Mbps
LAN# 2~5 LED for PoE Status
DIP Switch Setting for PRRT and
SFP Speed
SFP# 1 – 100/1000
SFP# 1 – LED for Link/Activity Status

Product Overview

System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function
•
Embedded 4*10/100/1000Tx (90W/Port) RJ45 ports and
•
1*100/1000 SFP slots
Store-and-Forward switching architecture
•
8K MAC address table
•
Supports 10Kbytes jumbo frame
•
1Mbits memory buffer
•
Power Input & Connection
DC 48 to 55V redundant power, with a 6-pin removal
•
terminal block
It is recommended to use a UL listed industrial power supply
•
For bt PoE application(s), the recommended power input
•
should be not less than 53VDC

Operating Temperature

Standard operating temperature model: -10°C to 65°C
•
Extended operating temperature model: -40°C to 75°C
•

Case/Installation

IP40 protection
•
DIN-Rail and wall mount design
•
19020000000193

LED Indicators

Power 1
Power 2
PoE Load
LED for Power 1, Power 2, Fault
SFP Port
PoE DIP Switch
LAN Port 2~5
LNK/ACT
(Upper LED)
LED for PoE Load Status – 90%, 70%
6-Pin Removal Terminal Block (Power Input)
LAN Port 2~5
PoE Mode
(Lower LED)
Grounding Screw

DIP Switch

The 4-pin DIP switch on the front panel of the Ethernet switch
works as the PoE controller for PoE port 2~5.
DIP Switch Number
PoE DIP Switch 1
PoE DIP Switch 2
PoE DIP Switch 3
PoE DIP Switch 4
The 2-pin DIP switch is used to enable/disable PD Remote Reset
Technology (PRRT) and control SFP speed.
DIP Switch Number
DIP Switch 1
DIP Switch 2
NOTE: The device will reboot when the Dip switch of PRRT and
SFP setting is changed.
LED Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Off No event happened
Any of the listed trigger events occur
1. Power 1 or Power 2 is inactive
Fault Red
2. Total PoE loading is > 100% PoE Budget
On
3. PoE over current (per port)
4. Cable short (per port)
5. One of the channels in Dual PD fail
PoE Load ≤50%
- Off
Blue On PoE Load 51~70%
Blue & Red On PoE Load 71~90%
Blue & Red
On PoE Load 91~100%
(Red flashing)
On Connected to network, 100 or 1000Mbps
Green Flashing Networking is active
Off Not connected to network
On Connected to network, 10/100/1000Mbps
Flashing Networking is active, 10/100/1000Mbps
Off Not connected to network
Green
IEEE 802.3bt connection
On (Single Signature PD Class 5~8/Dual
Signature PD Channel Class 1~5)
No powered-device attached or power
Off
supplying fails
Green
IEEE 802.3af/at connection
On
(Single Signature PD Class 0~4)
No powered-device attached or power
Off
supplying fails
Amber
ON (Default)
Enable Port 2 PoE Function Disable Port 2 PoE Function
Enable Port 3 PoE Function Disable Port 3 PoE Function
Enable Port 4 PoE Function Disable Port 4 PoE Function
Enable Port 5 PoE Function Disable Port 5 PoE Function
ON
Enable PRRT Function Disable PRRT Function
Control SFP speed at 100Mbps Control SFP speed at 1Gbps
OFF
OFF (Default)
