Page 1: User Manual
Antaira Technologies - Industrial Ethernet Switches LNP-0500G Series User Manual V1.0 LNP-0500G-24 Series 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switches with 4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx, 12~36VDC (Built-in Voltage Booster) Version 1.0 User Manual... -
Page 2: Trademark Information
Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC. Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. W MM and WPA are the registered trademarks of Wi-Fi Alliance. -
Page 3: Fcc Notice
Industrial Grade Unmanaged Ethernet Switches User Manual Version 1.0 (October 2015) This manual supports the following models: LNP-0500G-24 LNP-0500G-24-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com). -
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 Table of Contents 1.Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........2 1.3 Safety Precaution..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview
PoE power source within any harsh or outdoor environment. The LNP-0500G-24 series is IP30 rated and DIN-rail mountable with two wide operating temperature models that support either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 1.2 Package Contents 1 - LNP-0500G-24 (-T): 5-port industrial Gigabit PoE+ unmanaged Ethernet switch with 4*10/100/1000Tx (30W/port) and 1*10/100/1000Tx 1 - Product CD 2 - W all mounting brackets and screws ... -
Page 7: Hardware Description
LNP-0500G-24 Series User Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0500G-24 series: 5-port industrial Gigabit PoE+ unmanaged Ethernet switch with 4*10/100/1000Tx (30W/port) and 1*10/100/1000Tx. (W x D x H) is 46mm x 99mm x 142mm Figure 2.1... -
Page 8: Front Panel

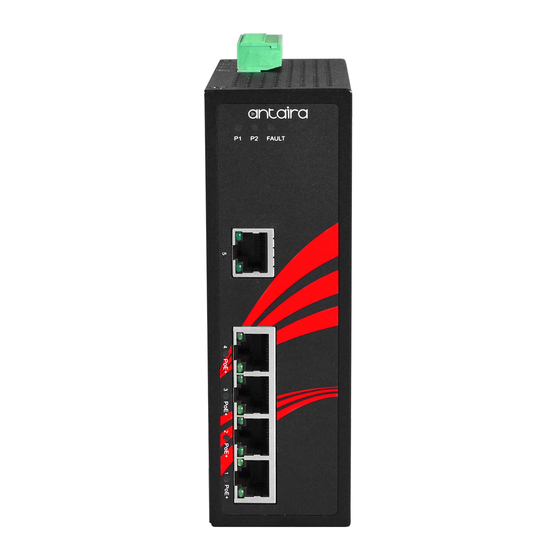

Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 2.2 Front Panel The front panel of the LNP-0500G-24 series: 5-port Gigabit industrial PoE+ unmanaged Ethernet switch with 4*10/100/1000Tx (30W /port) and 1*10/100/1000Tx. See Figure 2.2. 6-Pin Removal Terminal Block (Power Input) -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. - Page 10 Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 RJ-45 Pin Assignments (Table 2.2) Pin Number Assignment Table 2.2 RJ45 Pin Assignments The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
-
Page 11: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 2.6 Cabling Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX standard (e.g. -
Page 12: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normal open circuit. -
Page 13: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN-Rail on the switch. - Page 14 Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
-
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 16: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 4. Hardware Installation Installation Steps This section will explain how to install Antaira Technologies’ LNP-0500G-24 (-T): 5-port industrial gigabit PoE+ unmanaged Ethernet switch with 4*10/100/1000Tx (30W/port) and 1*10/100/100Tx port. Installation Steps 1. -
Page 17: Network Application
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 5. Network Application This segment provides an example of an industrial Ethernet switch application (Figure 5.1). Figure 5.1 Networking Application Example... -
Page 18: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ... -
Page 19: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-0500G-24 Series User Manual V1.0 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies LNP-0500G series: 5-port industrial gigabit PoE+ unmanaged Ethernet switch with 4*10/100/1000Tx (30W/port), and 1*10/100/1000Tx port. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 20 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
