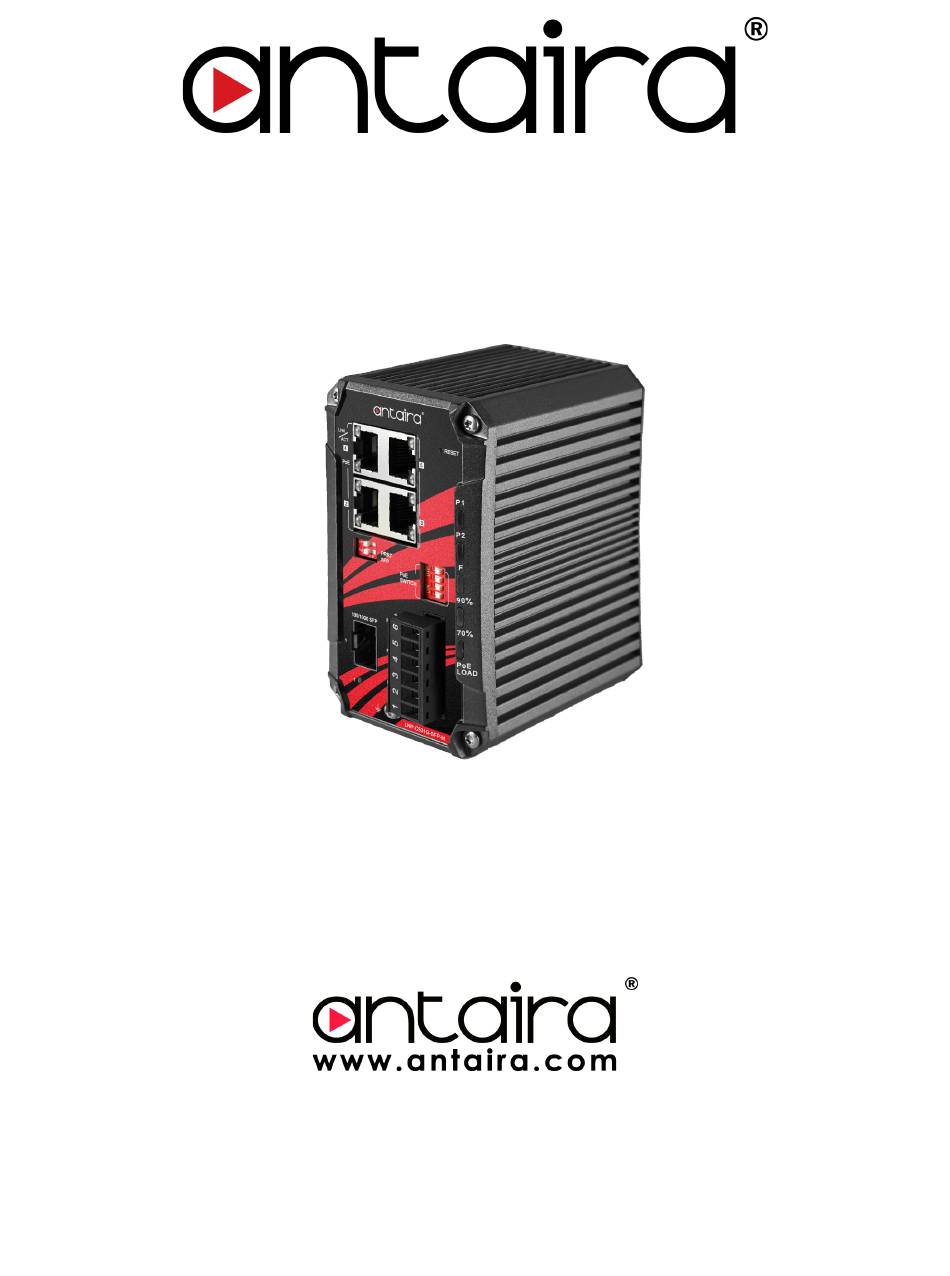

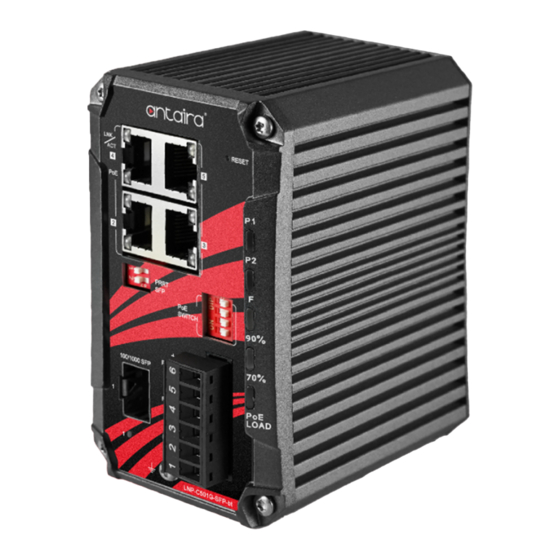

- Page 1 LNP-C501G-SFP-bt Series 5-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, with 4*10/100/1000Tx (90W/Port) and 1*100/1000 SFP Slot Hardware Manual Version 1.0 (July 2022)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 LED Indicators 2.4 PoE Port LED Indicators... -
Page 6: Overview
The small form factor of this metal IP40 rated design is 50% smaller which allows for a more versatile implementation. The LNP-C501G-SFP-bt series is equipped with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port and 1*100/1000Tx SFP port. The LNP-C501G-SFP-bt series can handle high bandwidth applications in tight spaces. -
Page 7: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 DC cable - 18AWG & DC jack 5.5 x 2.1mm**Wire: White (+) / Black (-) Dust cover set 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 64.9mm x 89.8mm x 110mm... -
Page 9: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. - Page 10 Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 3. Total PoE loading is >100% PoE Budget 4. PoE over current per port 5. Cable short per port occurs in PD that has been normally powered 6.
-
Page 11: Poe Port Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 2.4 PoE Port LED Indicators The LED light indicators on the PoE copper port can help the user know if and when an event immediately occurs or is happening. - Page 12 Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 After the PoE port is recovered from the PoE Port Over Current event, the PoE LED of the port will act cyclically as below until the event indicator is clear manually: Figure 2.6 - PoE Over Current Recovering LED Sequence...
-
Page 13: Dip Switch
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 Dual PD Fail Event When one channel of the connected dual PD is failed, the failed channel will be shut down and the active channel will still supply PoE to the connected PD. -
Page 14: Relay Contact Alarm Warning
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 The 2-pin DIP switch is used to enable/disable PD Remote Reset Technology (PRRT) and control SFP speed. OFF (Default) DIP Switch 1 Enable PRRT Function Disable PRRT Function... -
Page 15: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 2 / RX- 6 / TX- 2 / RX- 2 / TX- 3 / TX+ 1 / RX+ 3 / TX+ 3 / RX+ 6 / TX-... -
Page 16: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 2.9 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation. -
Page 17: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 2.10 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.13. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only), and form a normally open circuit. -
Page 18: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 2.11 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown below in Figure 2.14. -
Page 19: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. - Page 20 Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 21: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 22: Maintenance And Service
Check for loose power connections, power losses, or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 23: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet Standards IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber... - Page 24 Antaira Technologies - Industrial Ethernet Switches LNP-C501G-SFP-bt Series - Hardware Manual - v1.0 SFP: Speed/Link/Active PoE Switch: Control PoE Function by Port DIP Switch DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/Disable DIP Switch 2: SFP Speed (1000Mbps/100Mbps) Protection 10Base-T: 2-pair UTP/STP Cat.
- Page 25 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
