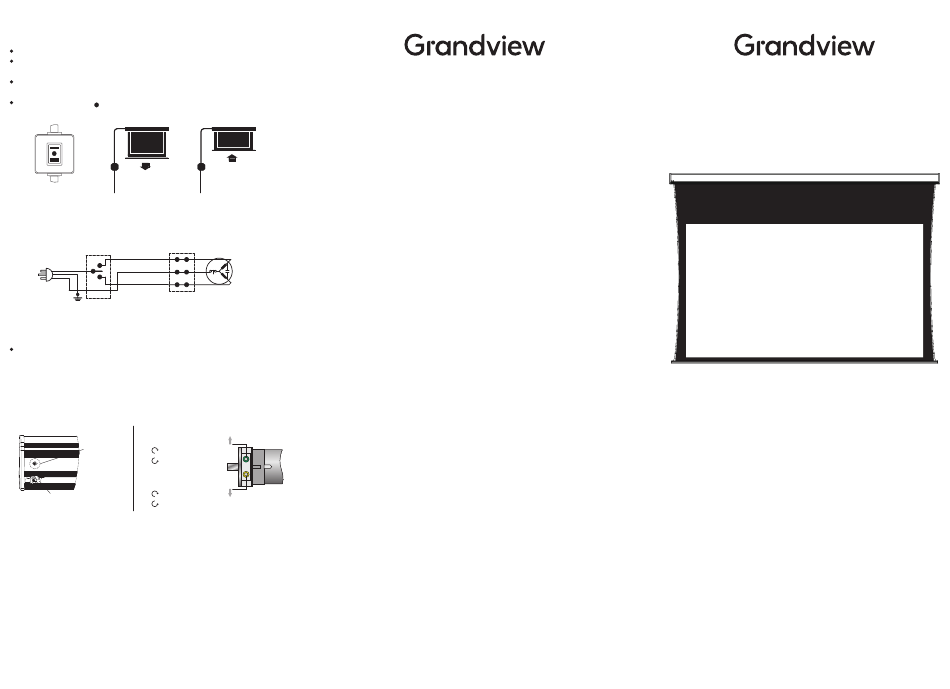

Grandview FANCY Series Manual

Motorized screen (M) manual control method:
In-line switch (Figure 1)
Lower(Figure 2): switch to "=" , screen will automatically
lower down to desire limit position.
Retract (Figure 3): switch to "-" , screen will automatically
retract to setting limit position.
Stop: switch to " " , screen will stop immediately.
Screen Lower
Figure 1 Figure 2
Motorized screen (M) circuit diagram:
Screen Retract
（Black wire）
K1
Common Line
（Blue wire）
AC220~230V
Screen Lower
50~60Hz,100W
（Grey wire）
Yellow Green
Screen Limit setting：
The screen is fitted with 2 limits.The limits automatically stop the
screen in the fully Up(Top limit)and fully Down(bottom limit)
positions.You can adjust the bottom limit to set your desired
viewing height.
Note: When screen retract height over the setting limit, fabric will
automatically lower down. For this case, please press stop switch (By
manual or RF control), micro adjust on green knob in clockwise direction is
fine.
Green knob
Screen retracting Height
(Top Limit)
Screen up and
down limit Clockwise rotate： Down
setting area
Anti clockwise rotate： Up
Yellow knob
Screen lower Height
（Bottom Limit）
Clockwise rotate： Up
Screen up limit
setting position
Anti clockwise rotate： Down
Caution:
Please operate carefully and slowly,it might cause motor and screen
damage.When ovre retacting. When setting lower limit,please setting
within 10cm.If over setting, it might cause fabric break and fall.
Screen Voltage data: AC220-230V/50-60HZ, current 0.5A, power 100W.
RF remote (F): Voltage 3V, use CR2032*2 battery;
Ratio Frequency: 868MHz.
IR remote ： Voltage 3V,use CR2032 battery
Protecting your screen:
Screen Retract
To ensure long lasting viewing enjoyment keep the screen
Figure 3
rolled up when not in use. Check both the front and back
surfaces before retracting into the case to make sure it is
free of dust,dirt,insects or other foreign matter.Use a soft
brush or cloth to lightly remove any foreign particles.
M
Cleaning your screen:
Use warm water with a mild detergent to remove any marks
on the surface or screen casing (only dab,do not rub).
Immediately dry the screen with a soft cloth or towel.Do not
leave it to air dry.
Never use any solvents, chemicals or abrasive cleaners on the
screen surface as they can permanently damage the screen
surface.
electric motor
Guangzhou Grandview Crystal Screen Co., Ltd
No.43 building,south national trade avenue, Hualong town,
Panyu district, Guangzhou City,Guangdong Province,CHINA
For information please go to www.grandviewscreen.com or
call 86(020)84899499

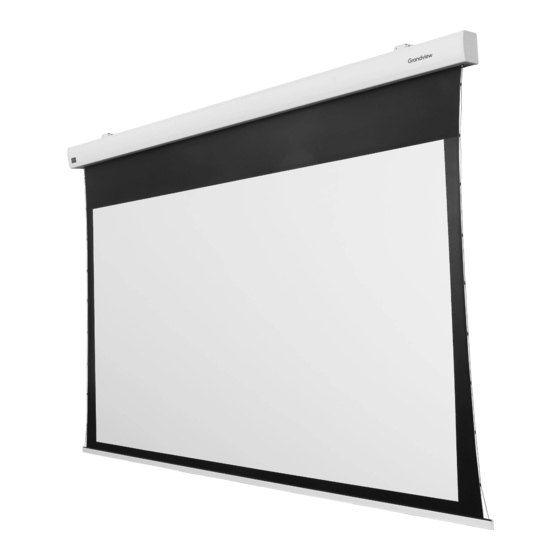

FANCY SERIES TAB-TENSION SCREEN
INTELLIGENT MOTORIZED SCREEN
Model:
FC-M
FC-MI
FC-MF
