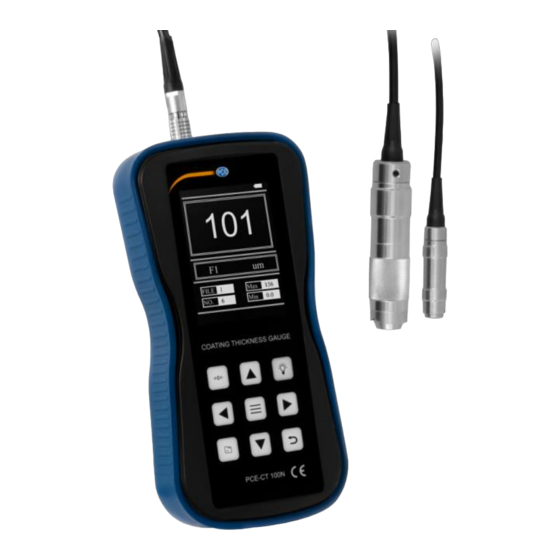

- Page 1 User Manual PCE-CT 100N Coating Thickness Gauge User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 5 May 2020 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Contents Safety notes ................... 1 Specifications ..................2 Package contents.................. 2 Characteristics ..................2 Measuring Principles ................3 Device Layout ..................4 Screen Layout ..................5 Operation Instructions ................. 5 Basic measurement steps ....................5 Measurement process ...................... 6 Measurement setup......................7 Gauge settings ......................... -
Page 3: Safety Notes
Safety notes Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
Specifications Measurement range 0 ... 1250 µm Accuracy ±(1 % + 1 µm) Resolution 0.1 µm (<99.9 µm) 1 µm (>100 µm) Calibration method One point/two point Memory 500 data Measuring method Single measurement/continuous measurement Communication interface Wi-Fi, USB Operating conditions 0 ... -
Page 5: Measuring Principles
• Five statistics: Average (MEAN) Maximum (MAX) Minimum (MIN) Number of tests (NO.) Standard deviation (S.DEV) • Storage function: 500 measurements for storage • Delete function: Single or multiple entry deletion • Threshold Setting For measured values outside of the gauge’s automatic alarm •... -
Page 6: Device Layout
Device Layout 1. Display Screen 8. NFe Probe 2. Zero-In Calibration 9. Fe Probe 3. Backlight 10. On/Off Switch 4. Navigation Keys 11. Probe Input 5. Menu 12. Stand 6. File Browser 13. USB Port 7. Back © PCE Instruments... -
Page 7: Screen Layout
Screen Layout 1. Measurement result 5. Battery status 2. Measurement mode 6. Unit of measurement 3. File number 7. Max threshold 4. Measurement count 8. Min threshold Operation Instructions Basic measurement steps 8.1.1 Sample piece surface preparation • The preparation of the sample surface must comply with the relevant requirements in chapter 11. -
Page 8: Measurement Process
• Sample support For heavy sample pieces: no support is required For medium sized pieces: the sample must be placed on a flat, stable surface with no shaking. • The minimal sample surface thickness must comply with the requirements of Table 3. •... -
Page 9: Measurement Setup
Measurement setup • Press the Menu button to enter the Instrument Menu Settings screen; the screen displays the nine options for the first level menu. • Use the ◄ or ► buttons to navigate the menu to the measure icon. •... - Page 10 8.3.2 Probe setup • Use the ▲ and ▼buttons to navigate the menu to the probe configuration. • Use the ◄ or ► buttons to change the selected value. • Press the back button to end the setup and return to the previous menu. •...
-
Page 11: Gauge Settings
8.3.4 Automatic storage • Use the ▲ and ▼buttons to navigate the menu to the save mode. • Use the ◄ or ► buttons to change the selected value. • Press the back button to end the setup and return to the previous menu. Gauge settings •... - Page 12 8.4.2 Backlight settings • Use the ▲ and ▼buttons to navigate the menu to the backlight setting. • Use the ◄ or ► buttons to change between on and off. • Press the back button to end the setup and return to the previous menu. 8.4.3 Language settings •...
-
Page 13: Data Processing
8.4.4 Auto shut down settings • Use the ▲ and ▼buttons to navigate the menu to the auto off setting. • Use the ◄ or ► buttons to change between on and off. • Press the back button to end the setup and return to the previous menu. Data processing The device has a variety of data processing functions, including on-board storage, browsing, and deletion of data. - Page 14 8.5.1 USB memory The device can directly store data to a USB drive. The USB port can only be used to store data to a USB drive; it cannot be used to connect the device directly to a PC. • Press the Menu button to enter the Instrument Menu Settings screen.
- Page 15 8.5.2 WIFI connection The device can transfer data over WIFI to another device (mobile/PC). • Transfer the app from the USB pen drive to your computer. • Then connect your Android device to your computer and transfer the app file to your Android device.
- Page 16 • Press the MENU key on the meter. In the menu, you have the following options: Send group – here you can select what memory group you would like to transfer to your Android device Real time – send data in real time Turn off WiFi •...
-
Page 17: Calibration
8.5.3 File processing • Press the Menu button to enter the Instrument Menu Settings screen. • Use the navigational buttons to navigate the menu to the data icon. • Press the menu button (≡) to enter the data settings. • Select the File No. -
Page 18: Battery Replacement
10.2 Battery replacement The battery life for this is typically 3 years. After the batteries fail, the user can replace them as follows: • Switch the device off. • Unscrew and separate the battery cover on the back of the main unit. •... -
Page 19: Contact
Contact If you have any questions, suggestions or technical problems, please do not hesitate to contact us. You will find the relevant contact information at the end of this user manual. Disposal For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament applies. - Page 20 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel.
