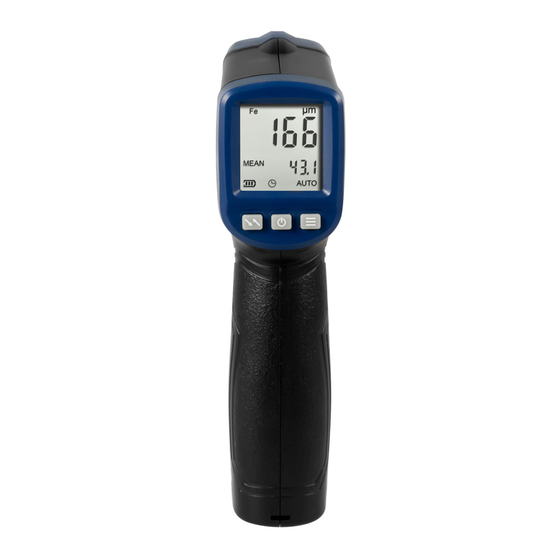

- Page 1 User Manual PCE-CT 25FN Coating Thickness Gauge User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 16 October 2020 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Contents Safety notes ................... 1 Specifications ..................2 Technical specifications ....................2 Delivery scope........................2 System description ................3 Device ..........................3 Display and function keys ....................4 Operation ....................5 Insert / replace battery ...................... 5 Make a measurement ....................... 5 Zero calibration ........................ -
Page 3: Safety Notes
Safety notes Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
20 % ... 90 % RH, non-condensing Dimensions 143 mm x 85 mm x 39 mm Weight 100 g Material Delivery scope 1 x coating thickness gauge PCE-CT 25FN 1 x calibration set • Fe zero standard • NFe zero standard •... -
Page 5: System Description
System description Device 1. Display 2. Keypad 1. Sensor with contact surface 2. Trigger 3. Battery compartment cover © PCE Instruments... -
Page 6: Display And Function Keys
Display and function keys 1. Material Fe or N 2. Current statistics display 3. Battery charge level 4. Automatic power off 5. Current unit of measurement 6. Measured value 7. Statistical value for (2) 8. Automatic sensor selection Key functions Press and release Press and hold Change µm, mm, mils... -
Page 7: Operation
Operation Insert / replace battery - Open the battery compartment cover on the front of the handle (the cover can be unfolded) - Connect new 9 V block battery - Insert the battery and close the cover. If the battery icon indicates a low battery level, the battery must be replaced. A lack of voltage affects the stability and reliability of the device. -
Page 8: Troubleshooting
Troubleshooting Display "OL“ “OL" appears on the display if the measurement range is exceeded (coating thicker than 1.5 mm). This device can only measure coatings up to 1.5 mm. For thicker coatings, a different meter will be required. “OL" also appears if the contact surface of the device was closer than 2 cm to metals. Restart the meter while keeping a sufficient distance. - Page 9 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel.
