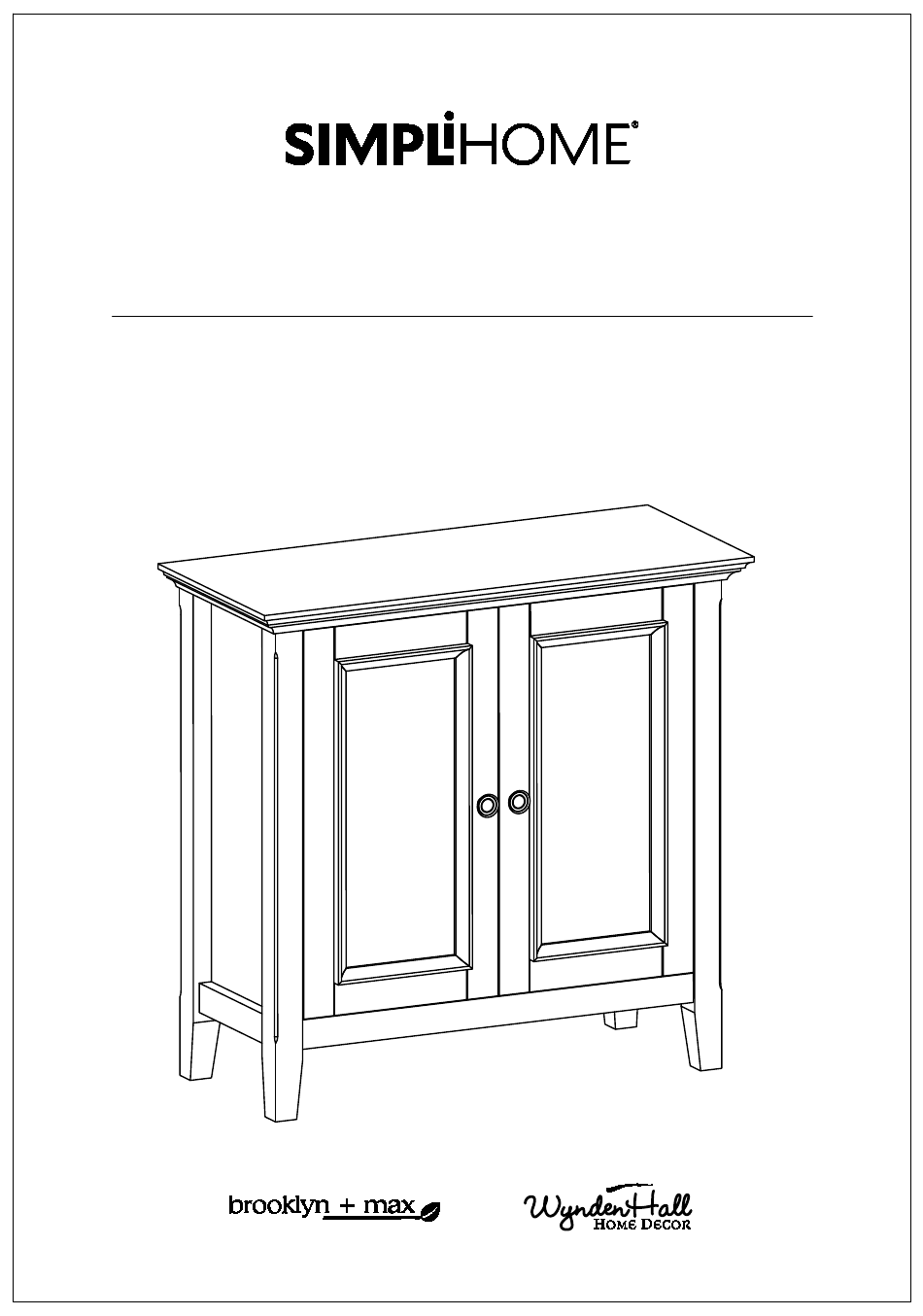

- Page 1 Amherst / Halifax / Washington Low Storage Cabinet Model # AXCRAMH14-HIC...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCRAMH14-HIC Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DOOR (L&R Same) BOTTOM SHELF DIVIDER QTY 2 QTY 1 QTY 1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL CABINET SHELF QTY 1 QTY 1 QTY 2... - Page 8 Pre-Assembly Information Model # AXCRAMH14-HIC Hardware Description ALLEN KEY SCREW SHELF SUPPORT M6 X 30mm ALLEN KEY QTY 18 QTY 1 QTY 12 PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 15mm M4 X 15mm MAGNET AND PLATE QTY 8 QTY 20 QTY 2 SETS PHILLIPS SCREW...
- Page 9 Components - Key Diagram Model # AXCRAMH14-HIC Warning Label...
- Page 10 Assembly Model # AXCRAMH14-HIC Step 1 1. Attach Sides AL , AR to Bottom Shelf C using 6 Allen Key Screws 1 through guide holes (3 screws on each Side) . 2. Use Allen Key 2 to tighten screws. Do not over-tighten. Step 2 1.
- Page 11 Assembly Model # AXCRAMH14-HIC Step 3 1. Attach Top B to Sides AL , AR and Divider D using 9 Allen Key Screws 1 through guide holes (3 screws on each Side and Divider). 2. Use Allen Key 2 to tighten Screws. Do not over-tighten.
- Page 12 Assembly Model # AXCRAMH14-HIC Step 4 Triangle ruler NOTE: The triangle ruler is not included in the hardware pack. Adjust the cabinet frame before assembling the back panels. 90° 90° 90° Note: Step 5 Warning Label 1. Attach Back Panels GL , GR to back frame of cabinet using 20 Phillips Screws Round Head 5 through guide holes.
- Page 13 Assembly Model # AXCRAMH14-HIC Step 6 1. Attach Adjustable Hinges 8 to Doors E using Phillips Screws 9 into pre-drilled holes on Doors E . 2. Attach Adjustable Hinges on Doors E to Sides AL , AR using Phillips Screws 9 into pre-drilled holes on Sides AL , AR . 3.
-
Page 14: Important Note
Assembly Model # AXCRAMH14-HIC IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II . - Page 15 Assembly Model # AXCRAMH14-HIC Step 7 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 6 to bottom corner of Doors E using Phillips Screws 4 into pre-drilled holes on Doors E . 2. Attach Magnets 6 using Phillips Screws 4 into pre-drilled holes on Divider D . 3.
- Page 16 Assembly Model # AXCRAMH14-HIC Step 8 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Attach 4 Shelf Supports 3 underneath of each Cabinet Shelf F in desired location . 2. 2 Shelf Supports 3 must be attached on back top of each Cabinet Shelf F as a tipping restraint.
- Page 17 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 9 NOTE: The screwdriver is not included in the hardware pack.
- Page 18 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
