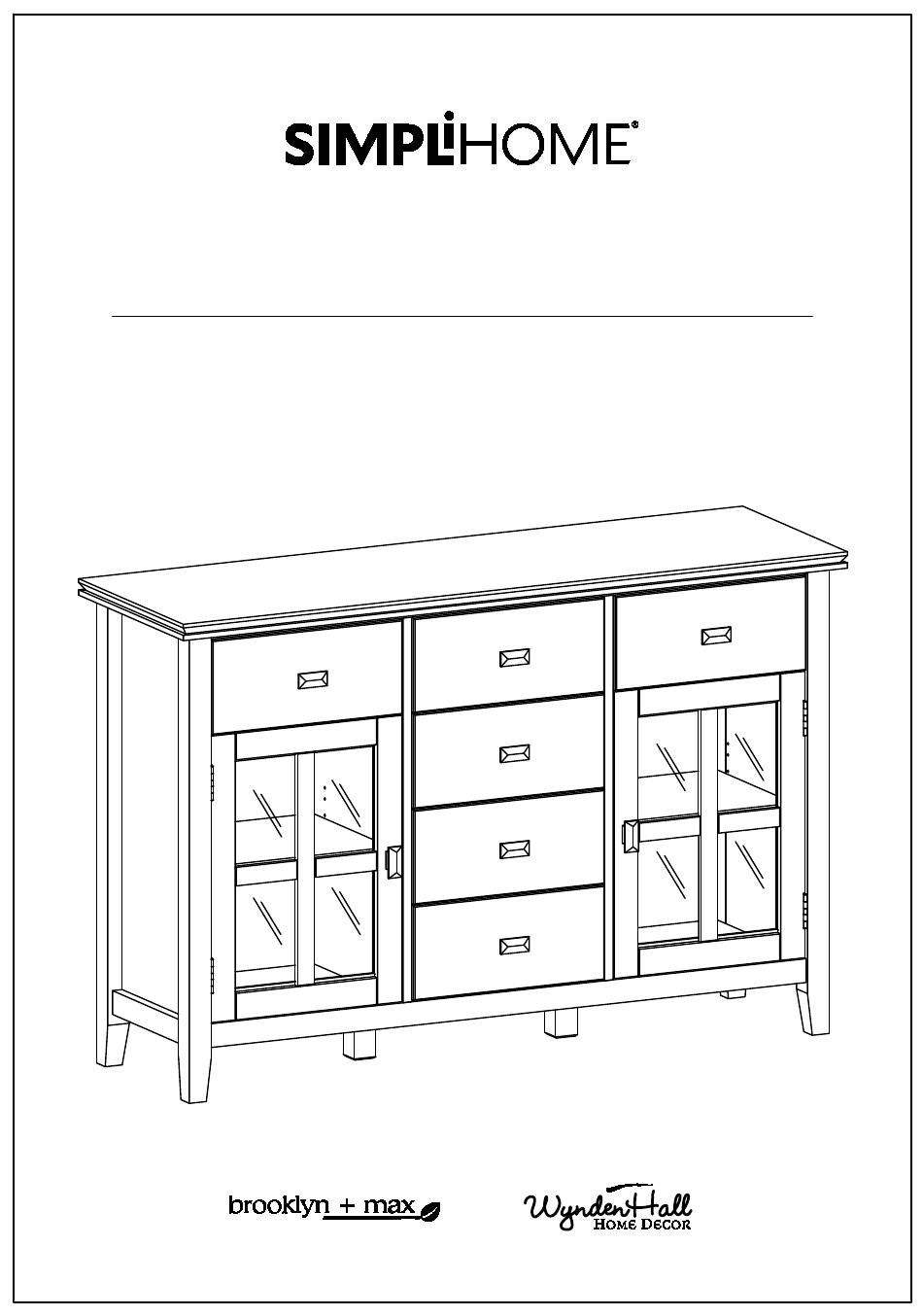

- Page 1 Artisan / Holden / Stratford Sideboard Buffet Model # AXCRART11-RUS...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCRART11-RUS Part Description BOTTOM SHELF SHELF QTY 1 QTY 1 QTY 2 LEFT DIVIDER LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 RIGHT DIVIDER LEFT BACK PANEL DOOR (L&R Same) QTY 1 QTY 1 QTY 2...
-
Page 8: Drawer Bottom
Pre-Assembly Information Model # AXCRART11-RUS Part Description Warning Label DRAWER FRONT RIGHT BACK PANEL MIDDLE BACK PANEL QTY 6 QTY 1 QTY 1 DRAWER BACK LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 6 QTY 6 QTY 6 DRAWER BOTTOM BOTTOM SUPPORT LEG QTY 6 QTY 2... - Page 9 Pre-Assembly Information Model # AXCRART11-RUS Hardware Description CAM LOCK PIN HANDLE ALLEN KEY BOLT ALLEN KEY SCREW CAM LOCK M4 X 30 mm M6 X 30mm M6 X 30mm QTY 24 SETS QTY 12 QTY 36 QTY 8 SETS PHILLIPS SCREW ROUND HEAD ALLEN KEY SHELF SUPPORT...
- Page 10 Components - Key Diagram Model # AXCRART11-RUS...
- Page 11 Assembly Model # AXCRART11-RUS Step 1 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Drawer Front H . 2. Use Phillips screwdriver to secure Cam Locks.
- Page 12 Assembly Model # AXCRART11-RUS Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides IL , IR . 2. Insert 2 Cam Locks 3 into guide holes on each Drawer Side IL , IR . 3. Use Phillips screwdriver to secure Cam Locks.
- Page 13 Assembly Model # AXCRART11-RUS Step 3 1. Slide Drawer Bottom K firmly into slots on Drawer Sides IL , IR and Drawer Front H . Step 4 1. Align Drawer Back J with Drawer Bottom K and press firmly into slot . 2.
- Page 14 Assembly Model # AXCRART11-RUS Step 5 NOTE: The screwdriver is not included in the hardware pack. 1. Use Phillips screwdriver to attach Handle 4 to Drawer Front H . Repeat Step 1-5 for the other five drawers.
- Page 15 Assembly Model # AXCRART11-RUS Step 6 1. Attach Dividers EL , ER to Bottom Shelf B using 6 Allen Key Screws 2 (3 Screws / each Divider ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
- Page 16 Assembly Model # AXCRART11-RUS Step 7 1. Attach Bottom Shelf B to Sides DL , DR using 6 Allen Key Bolts 1 ( 3 Bolts / each Side ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
- Page 17 Assembly Model # AXCRART11-RUS Step 8 1. Attach Top A to Sides DL , DR using 6 Allen Key Bolts 1 ( 3 Bolts / each Side ). 2. Attach Top A to Dividers EL , ER using 6 Allen Key Screws 2 ( 3 Screws / each Divider ).
- Page 18 Assembly Model # AXCRART11-RUS Step 9 1. Attach two Bottom Support Leg L to Bottom Shelf B using 8 Phillips Screws 11 . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
- Page 19 Assembly Model # AXCRART11-RUS Step 10 NOTE: The screwdriver is not included in the hardware pack. Note: Warning Label 1. Attach the Back Panels GL , GR , G to back frame of cabinet using Phillips Screws Round Head 6 through guide holes from panel. 2.
- Page 20 Assembly Model # AXCRART11-RUS Step 11 First Step Last Step (After adjust the door)
- Page 21 Assembly Model # AXCRART11-RUS Step 12 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 7 to bottom corner of Doors F using Phillips Screws 10 into pre-drilled holes on Doors F . 2. Attach Magnet 7 using Phillips Screws 10 into pre-drilled holes on Bottom Shelf B . 3.
- Page 22 Assembly Model # AXCRART11-RUS Step 13 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3...
- Page 23 Assembly Model # AXCRART11-RUS Step 14 1. Insert assembled drawers into glides on assembled sideboard.
- Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 15 NOTE: The screwdriver is not included in the hardware pack.
- Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
