Summary of Contents for SIMPLIHOME Brooklyn+Max WyndenHall AXCRACA17-LGB

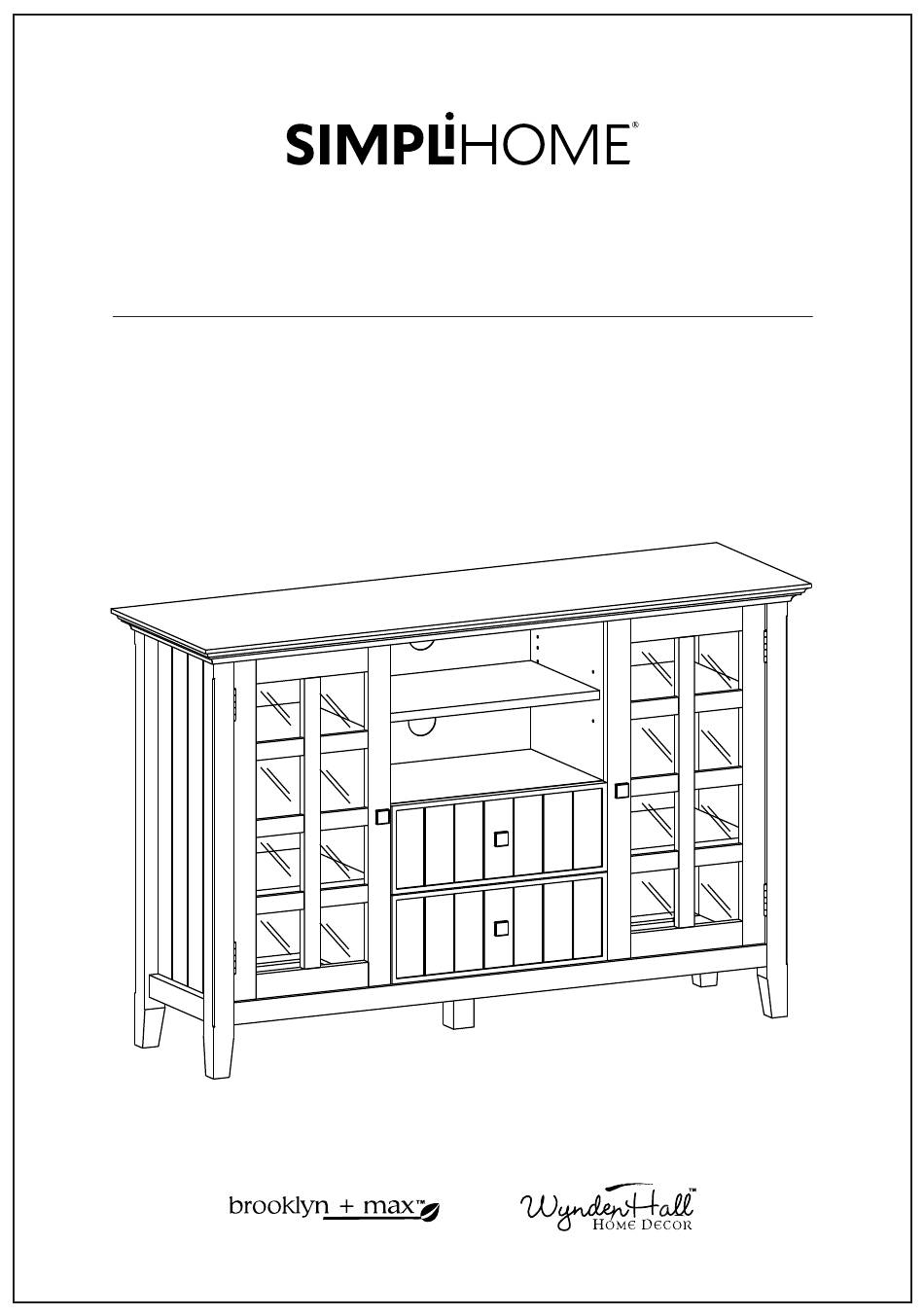

- Page 1 Acadian / Normandy / Brunswick Tall TV Media Stand Model # AXCRACA17-LGB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 200 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. The recommended maximum width of the television intended for use is 60 inch (152.4 cm). - Page 8 Pre-Assembly Information Model # AXCRACA17-LGB Part Description V16-A V16-BL V16-BR LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 V16-C V16-DL V16-DR LEFT DIVIDER RIGHT DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 V16-E V16-F V16-G CABINET SHELF LOWER CENTRE SHELF UPPER CENTRE SHELF QTY 4...
-
Page 9: Drawer Bottom
Pre-Assembly Information Model # AXCRACA17-LGB Part Description V16-H V16-I V16-JL BACK PANEL BACK PANEL LEFT BACK PANEL QTY 1 QTY 1 QTY 1 V16-JR V16-K V16-L Warning Label RIGHT BACK PANEL DOOR (L&R Same) DRAWER FRONT QTY 1 QTY 2 QTY 2 V16-ML V16-MR... - Page 10 Pre-Assembly Information Model # AXCRACA17-LGB Hardware Description ALLEN KEY SCREW CAM LOCK PIN M6 X 30 mm ALLEN KEY CAM LOCK QTY 26 QTY 1 QTY 20 SETS PHILLIPS SCREW ROUND HEAD PHILLIPS SHORT SCREW M4 X 15 mm M3 X 12 mm SHELF SUPPORT QTY 24 QTY 12...
- Page 11 Components - Key Diagram Model # AXCRACA17-LGB V16-A V16-BL V16-JR V16-DL V16-H V16-DR V16-JL V16-BR V16-F V16-I V16-K V16-C V16-G V16-E V16-G V16-K V16-N V16-MR V16-P V16-ML V16-O V16-L...
- Page 12 Assembly Model # AXCRACA17-LGB Step 1 V16-L V16-MR V16-ML V16-MR V16-ML V16-L 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front V16-L . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides V16-ML , V16-MR . 3.
- Page 13 Assembly Model # AXCRACA17-LGB Step 3 V16-N V16-MR V16-O V16-L V16-ML 1. Align Drawer Back V16-N with Drawer Bottom V16-O and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3.
- Page 14 Assembly Model # AXCRACA17-LGB Step 5 V16-DR V16-E V16-DL 1. Attach 3 Cam Lock Pins 2 into pre-drilled holes on each Divider V16-DL , V16-DR . 2. Align Cam Lock Pins with guide holes and attach Lower Centre Shelf V16-E . 3.
- Page 15 Assembly Model # AXCRACA17-LGB Step 7 V16-DR V16-BR V16-DL V16-BL V16-C 1. Attach 3 Cam Lock Pins 2 into pre-drilled on each Side V16-BL , V16-BR . 2. Align Cam Lock Pins with guide holes and attach Bottom Shelf V16-C . 3.
- Page 16 Assembly Model # AXCRACA17-LGB Step 8 V16-DR V16-A V16-BR V16-DL V16-BL V16-C 1. Use 12 Allen Key Screws 1 attach Top V16-A to Sides V16-BL , V16-BR and Dividers V16-DL , V16-DR . 2. Use Allen Key 3 to tighten screws. Do not over-tighten.
-
Page 17: Warning Label
Assembly Model # AXCRACA17-LGB Step 9 V16-BR V16-A V16-BL V16-C V16-P 1. Attach Bottom Support Leg V16-P to Bottom Shelf V16-C using 4 Phillips Screws 10 . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten. Step 10 Note: The back of the tv frame does not have pre-drilled holes to attach the back panels. - Page 18 Assembly Model # AXCRACA17-LGB First Step Last Step ( after adjust the door ) Step 11 V16-K V16-BR V16-BL V16-C V16-K 1. Attach hinges on Doors V16-K to Sides V16-BL , V16-BR using Phillips Screws 6 into pre-drill holes: - Using Phillips screwdriver to attach Screws 6 at middle hole of hinges for both top &...
- Page 19 Assembly Model # AXCRACA17-LGB Step 12 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 V16-G V16-F V16-G 1. Use 4 Shelf Supports 5 for each Shelf V16-F , V16-G in desired location . 2. 2 Shelf Supports 5 may be used on back top of each Shelf V16-F , V16-G as a tipping restraint.
- Page 20 Assembly Model # AXCRACA17-LGB Step 13 1. Insert assembled drawers into glides on assembled TV...
- Page 21 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 22 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
