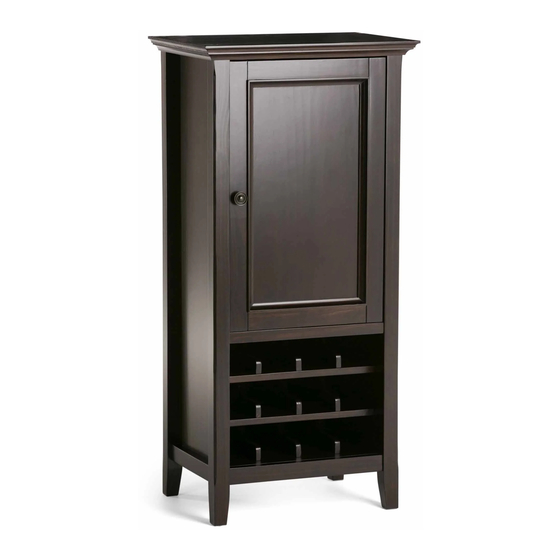

SIMPLIHOME brooklyn+max WynclenHall AXCRAMH29-HIC Manual

High storage wine rack
Hide thumbs

Advertisement

Quick Links

Download this manual
Amherst / Halifax / Washington
High Storage Wine Rack
Model # AXCRAMH29-HIC
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn+max WynclenHall AXCRAMH29-HIC and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn+max WynclenHall AXCRAMH29-HIC

Summary of Contents for SIMPLIHOME brooklyn+max WynclenHall AXCRAMH29-HIC

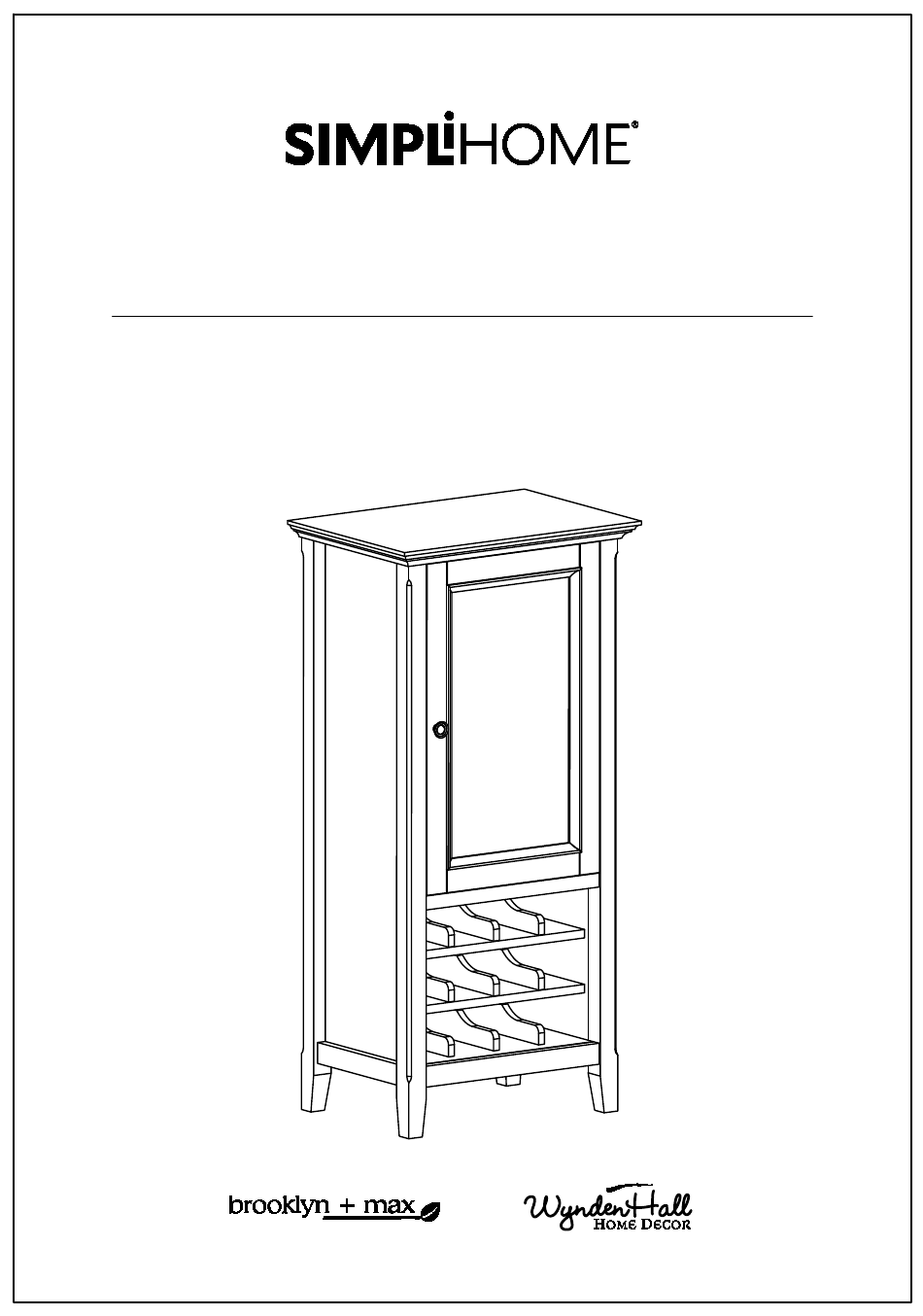

  • Page 1 Amherst / Halifax / Washington High Storage Wine Rack Model # AXCRAMH29-HIC...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCRAMH29-HIC Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 MIDDLE SHELF TOP SHELF BOTTOM SHELF QTY 2 QTY 1 QTY 1 DIVIDER DOOR CABINET SHELF BACK PANEL QTY 9 QTY 1 QTY 2 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCRAMH29-HIC Hardware Description ALLEN KEY SCREW WOOD DOWER CAM LOCK PIN M6 X 30mm ALLEN KEY CAM LOCK Ø8 x 30 mm QTY 12 QTY 1 QTY 6 SETS QTY 12 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW PHILLIPS SCREW SHELF SUPPORT M4 X 15mm...
  • Page 9 Components - Key Diagram Model # AXCRAMH29-HIC...
  • Page 10 Assembly Model # AXCRAMH29-HIC Step 1 NOTE: The screwdriver is not included in the hardware pack. 1. Attach 3 Dividers H to Middle Shelf E using 9 Phillips Screws 6 . 2. Use Phillips screwdriver to snugly tighten screw. 3. Repeat Step-1 for the second Middle Shelf E and other 3 Dividers H . Step 2 1.
  • Page 11 Assembly Model # AXCRAMH29-HIC Step 3 1. Attach 3 Cam Lock Pins 2 into pre-drilled holes on Left Side AL . 2. Align Cam Lock Pins with guide holes on Top Shelf D . 3. Insert 3 Cam Locks 2 into guide holes on Top Shelf D . 4.
  • Page 12 Assembly Model # AXCRAMH29-HIC Step 4 1. Repeat Step-3 for the Right Side AR .
  • Page 13 Assembly Model # AXCRAMH29-HIC Step 5 1. Attach Top B to Sides AL , AR and using 6 Allen Key Screws 1 (3 screws on each Side). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 14 Assembly Model # AXCRAMH29-HIC Step 6 NOTE: The screwdriver is not included in the hardware pack. Note: Warning Label 1. Use 14 Phillips Screws Round Head 8 to attach Back Panel I through guide holes from Back Panel to back of Wine Rack. 2.
  • Page 15 Assembly Model # AXCRAMH29-HIC Step 7 1. Attach Adjustable Hinges 11 to Door G using Phillips Screws 12 into pre-drilled holes on Door G . 2. Attach Adjustable Hinges on Door G to Right Side AR using Phillips Screws 12 into pre-drilled holes on Right Side AR .

  • Page 16: Important Note

    Assembly Model # AXCRAMH29-HIC IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
  • Page 17 Assembly Model # AXCRAMH29-HIC Step 8 1. Attach Magnet Plates 9 to corners of Door G using Phillips Screws 7 into pre-drilled holes on Door G . 2. Attach Magnets 9 using Phillips Screws 7 into pre-drilled holes on Left Side AL . 3.
  • Page 18 Assembly Model # AXCRAMH29-HIC Step 9 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 5 for each Cabinet Shelf F in desired location. 2. 2 Shelf Supports 5 may be used on back top of each Cabinet Shelf F as a tipping restraint.
  • Page 19 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 10 NOTE: The screwdriver is not included in the hardware pack.
  • Page 20 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
