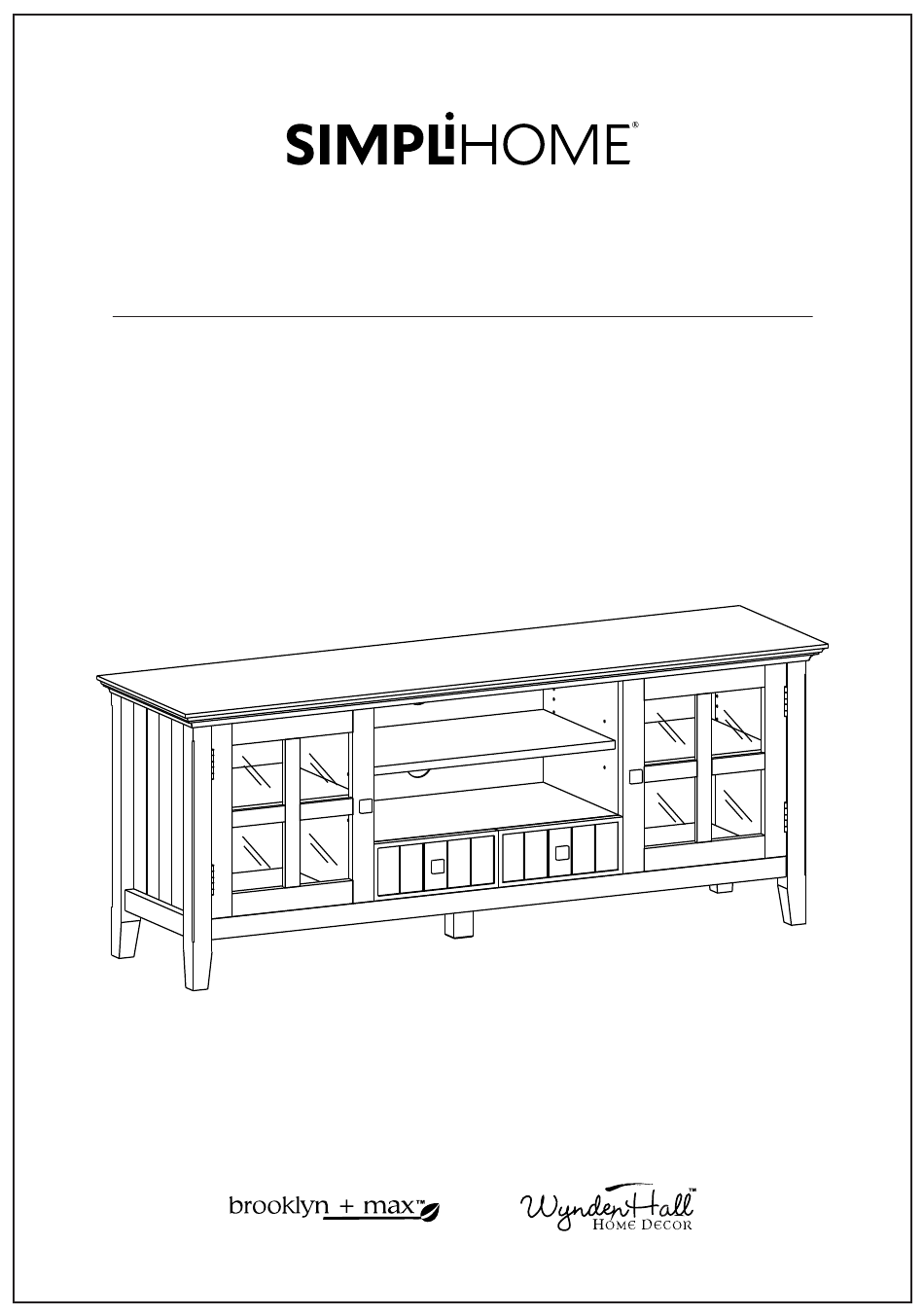

- Page 1 Acadian / Normandy / Brunswick 60 inch TV Media Stand Model # AXCRACA60-BRU...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. The recommended maximum width of the television intended for use is 66 inch (167.64 cm). - Page 8 Pre-Assembly Information Model # AXCRACA60-BRU Part Description V16-A V16-BL V16-BR LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 V16-CL V16-CR V16-D SMALL DIVIDER LEFT BIG DIVIDER RIGHT BIG DIVIDER QTY 1 QTY 1 QTY 1 V16-E V16-F V16-G BOTTOM SHELF CENTRE SHELF LARGE SHELF...
- Page 9 Pre-Assembly Information Model # AXCRACA60-BRU Part Description V16-JR V16-J1 V16-J2 Warning Label RIGHT BACK PANEL TOP BACK PANEL BOTTOM BACK PANEL QTY 1 QTY 1 QTY 1 V16-K V16-LL V16-LR BOTTOM SUPPORT LEG LEFT DRAWER FRONT RIGHT DRAWER FRONT QTY 1 QTY 1 QTY 1 V16-ML...
- Page 10 Pre-Assembly Information Model # AXCRACA60-BRU Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK 8 X 30 mm ALLEN KEY M6 X 30 mm QTY 23 QTY 14 QTY 1 QTY 29 PHILLIPS SCREW PHILLIPS SHORT SCREW ROUND HEAD PHILLIPS MEDIUM SCREW SHELF SUPPORT...
- Page 11 Components - Key Diagram Model # AXCRACA60-BRU V16-A V16-BR V16-JL V16-J2 V16-JR V16-J1 V16-I V16-BL V16-CR V16-CL V16-F V16-I V16-E V16-H V16-D V16-G V16-H V16-K V16-N V16-LR V16-ML V16-O V16-LL V16-MR...
- Page 12 Assembly Model # AXCRACA60-BRU Step 1 V16-LL V16-MR V16-ML V16-MR V16-ML V16-LL 1. Attach 4 Cam Lock Pins 2 to back of Left Drawer Front V16-LL . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides V16-ML , V16-MR . 3.
- Page 13 Assembly Model # AXCRACA60-BRU Step 3 V16-N V16-MR V16-O V16-LL V16-ML 1. Align Drawer Back V16-N with Drawer Bottom V16-O and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each Side V16-ML , V16-MR . 3.
- Page 14 Assembly Model # AXCRACA60-BRU Step 5 V16-CR V16-F V16-CL 1. Attach 3 Cam Lock Pins 2 to each Big Divider V16-CL , V16-CR into pre-drilled holes 2. Align and insert Cam Lock Pins on Big Dividers V16-CL , V16-CR into guide holes on Centre Shelf V16-F .
- Page 15 Assembly Model # AXCRACA60-BRU Step 7 V16-CR V16-D V16-CL V16-E 1. Insert 2 Dowels 3 into guide holes on each Big Divider V16-CL , V16-CR and Small Divider V16-D . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed.
- Page 16 Assembly Model # AXCRACA60-BRU Step 8 V16-BR V16-CR V16-CL V16-E V16-BL 1. Insert 2 Dowels 3 into guide holes on each Side V16-BL , V16-BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed.
- Page 17 Assembly Model # AXCRACA60-BRU Step 9 V16-CR V16-BR V16-CL V16-A V16-E V16-BL 1. Insert 2 Dowels 3 into top corners of each Side V16-BL , V16-BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed.
- Page 18 Assembly Model # AXCRACA60-BRU Step 10 V16-BR V16-A V16-E V16-K V16-BL 1. Attach Bottom Support Leg V16-K to Bottom Shelf V16-E using 4 Phillips Screws 9 . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
- Page 19 Assembly Model # AXCRACA60-BRU Step 11 Note: The back of the TV frame does not have Warning Label pre-drilled holes to attach the back panels. V16-A V16-JR V16-J1 V16-JL V16-J2 1. Attach Back Panels V16-JL , V16-JR , V16-J1 , V16-J2 to Back of cabinet using Phillips Screws Round Head 5 into guide holes.
- Page 20 Assembly Model # AXCRACA60-BRU Last Step ( after adjust the door ) First Step Step 12 V16-BL V16-I V16-A V16-CR V16-CL V16-E V16-BR V16-I 1. Attach hinges on Doors V16-I to Sides V16-BL , V16-BR using Phillips Screws 7 into pre-drill holes: - Using Phillips screwdriver to attach Screws 7 at middle hole of hinges for both top &...
- Page 21 Assembly Model # AXCRACA60-BRU Step 13 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 V16-H V16-G V16-H 1. Use 4 Shelf Supports 6 for each Shelf V16-G , V16-H in desired location. 2. 2 Shelf Supports 6 may be used on back top of each Shelf V16-G , V16-H as a tipping restraint.
- Page 22 Assembly Model # AXCRACA60-BRU Step 14 1. Insert assembled drawers into glides on assembled TV...
- Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 15 NOTE: The screwdriver is not included in the hardware pack.
- Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
