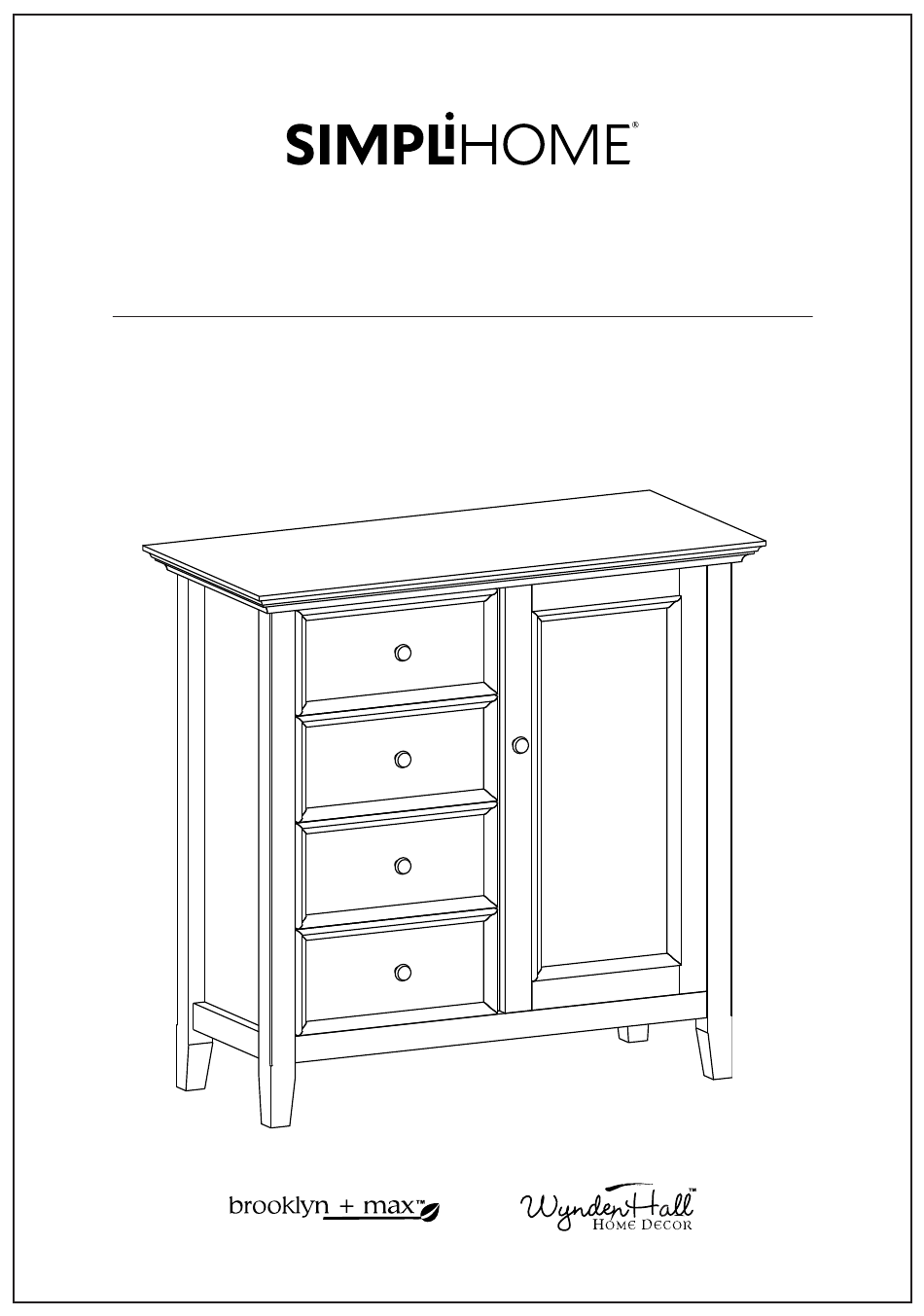

- Page 1 Amherst / Halifax / Washington Medium Storage Cabinet Model # AXCRAMH15-HIC...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCRAMH15-HIC Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF CENTRE SUPPORT DOOR QTY 1 QTY 1 QTY 1 Warning Label LEFT BACK PANEL SHELF RIGHT BACK PANEL QTY 1 QTY 1 QTY 2...
- Page 8 Pre-Assembly Information Model # AXCRAMH15-HIC Part Description DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 4 QTY 4 QTY 4 DRAWER BOTTOM DRAWER BACK QTY 4 QTY 4...
- Page 9 Pre-Assembly Information Model # AXCRAMH15-HIC Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 28 QTY 22 SETS PHILLIPS SCREW ROUND HEAD ADJUSTABLE HINGE HANDLE M4 X 15 mm QTY 5 SETS QTY 2 QTY 17 PHILLIPS SCREW...
- Page 10 Components - Key Diagram Model # AXCRAMH15-HIC...
- Page 11 Assembly Model # AXCRAMH15-HIC Step 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front I . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides JL , JR . 3. Insert 2 Cam Lock 2 into guide holes on each Drawer Side JL , JR . 4.
- Page 12 Assembly Model # AXCRAMH15-HIC Step 3 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen Key 3 to tighten Screws. Do not over tighten. Step 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 13 Assembly Model # AXCRAMH15-HIC Step 5 1. Attach Centre Support E to Bottom Shelf D using Allen Key Screws 1 through guide holes. 2. Use Allen Key 3 to tighten Screws. Do not over tighten. Step 6 1. Attach Cam Lock Pins 2 into pre-drilled holes on each Side B , C . 2.
- Page 14 Assembly Model # AXCRAMH15-HIC Step 7 1. Attach Top A to Sides B , C using Allen Key Screws 1 . 2. Attach Top A to Centre Support Shelf E using Allen Key 1 . Tighten the Centre Support Shelf to pre-drill hole at the right side support bar underneath of top. 3.
- Page 15 Assembly Model # AXCRAMH15-HIC Triangle ruler Step 8 NOTE: The triangle ruler is not included in the hardware pack. Adjust the cabinet frame before assembling the back panels. Step 9 Warning Label 1. Attach Back Panels GL , GR to back of cabinet using Phillips Screws Round Head 5 into guide holes.
- Page 16 Assembly Model # AXCRAMH15-HIC Step 10 1. Attach Adjustable Hinges 6 to Door F using Phillips Screws 10 into pre-drilled holes on Door F . 2. Attach Adjustable Hinges on Door F to Side C using Phillips Screws 10 into pre-drilled holes on Side C .
-
Page 17: Important Note
Assembly Model # AXCRAMH15-HIC IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II . - Page 18 Assembly Model # AXCRAMH15-HIC Step 11 1. Attach Magnet Plate 7 to bottom corner of Door F using Phillips Screws 9 into pre-drilled holes on Door F . 2. Attach Magnet 7 using Phillips Screws 9 into pre-drilled holes on Bottom Shelf D . 3.
- Page 19 Assembly Model # AXCRAMH15-HIC Step 12 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 8 for each Cabinet Shelf H in desired location. 2. 2 Shelf Supports 8 may be used on back top of each Cabinet Shelf H as a tipping restraint...
- Page 20 Assembly Model # AXCRAMH15-HIC Step 13 1. Insert assembled drawers into glides on assembled Medium Storage Cabinet.
- Page 21 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 22 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
