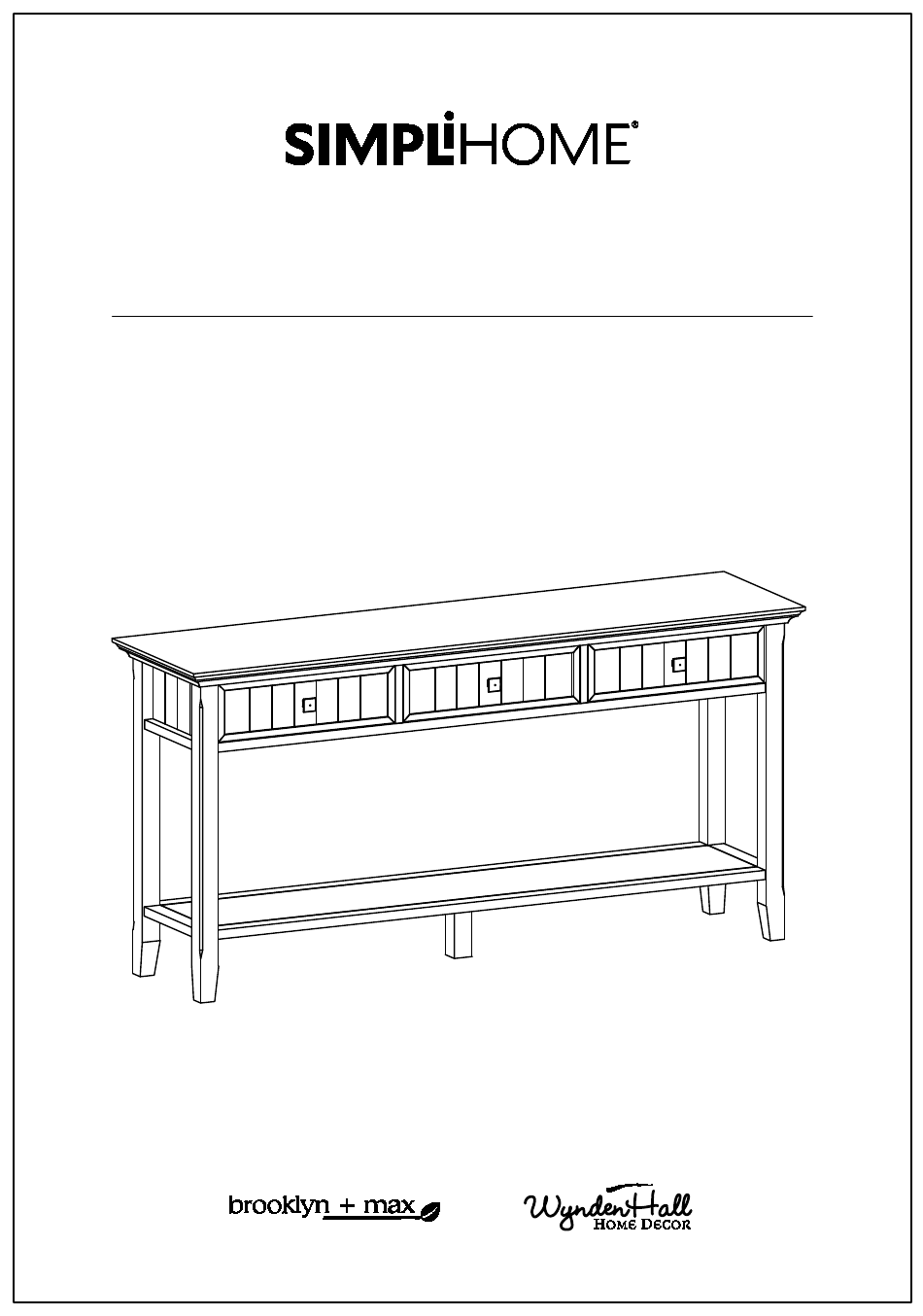

- Page 1 Acadian / Normandy / Brunswick Wide Console Sofa Table Model # AXCRACA07-BRU...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCRACA07-BRU Part Description V16-A V16-B SIDE (L&R Same) QTY 1 QTY 2 V16-C V16-D BOTTOM SHELF BOTTOM SUPPORT LEG QTY 1 QTY 1... - Page 8 Pre-Assembly Information Model # AXCRACA07-BRU Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY BOLT CAM LOCK Ø8 X 30mm M6 X 30mm QTY 4 SETS QTY 8 QTY 4 HANDLE PHILLIPS SCREW M4 X 15 mm M4 X 25mm ALLEN KEY QTY 3 SETS QTY 4...
- Page 9 Components - Key Diagram Model # AXCRACA07-BRU V16-A V16-B V16-C V16-D V16-B...
- Page 10 Assembly Model # AXCRACA07-BRU Step 1 V16-B 1. Attach two Cam Lock Pins 2 into pre-drilled holes on back of each Side V16-B . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 V16-C 1. Insert four Dowels 3 into guide holes on Bottom Shelf V16-C . 2.
- Page 11 Assembly Model # AXCRACA07-BRU Step 3 V16-A V16-A V16-A V16-A 1. Remove the drawer from Top V16-A by pressing the locks on the glides. V16-A V16-A...
- Page 12 Assembly Model # AXCRACA07-BRU Step 4 V16-A V16-B Step 5 V16-B V16-A V16-C 1. Align Wood Dowels and Cam Lock Pins with guide holes and attach Bottom Shelf V16-C to Side V16-B . V16-A V16-B V16-C 2. Insert two Cam Locks 2 into guide holes on Bottom Shelf V16-C . 3.
- Page 13 Assembly Model # AXCRACA07-BRU Step 6 V16-B V16-A V16-C V16-B V16-B V16-A V16-C V16-B 1. Repeat Step-4,5 for second Side V16-B .
- Page 14 Assembly Model # AXCRACA07-BRU Step 7 V16-B V16-A V16-C V16-B V16-D...
- Page 15 Assembly Model # AXCRACA07-BRU Step 8 1. Insert assembled drawers into glides on assembled table.
