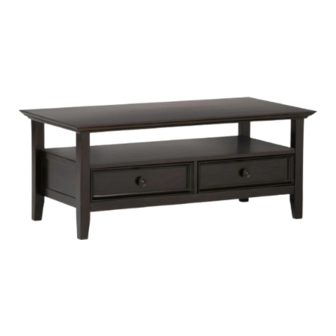

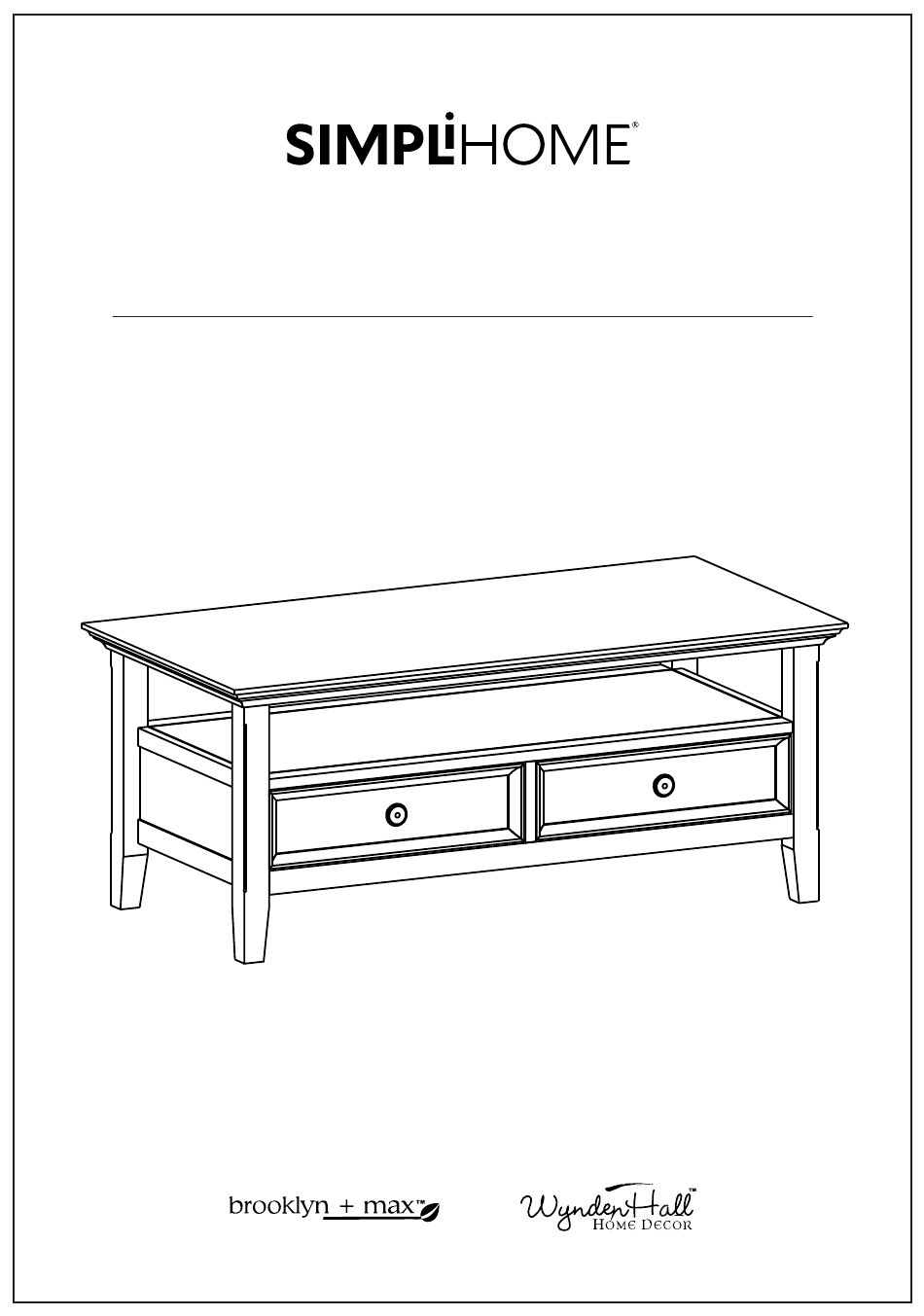

- Page 1 Amherst / Halifax / Washington Coffee Table Model # AXCRAMH01-HIC...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Frame
Pre-Assembly Information Model # AXCRAMH01-HIC Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM FRAME TOP SHELF DRAWER FRONT QTY 1 QTY 1 QTY 2 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 2 QTY 2 QTY 2 BACK PANEL DRAWER BOTTOM... - Page 8 Pre-Assembly Information Model # AXCRAMH01-HIC Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 21 SETS QTY 23 Required - Flathead screwdriver PHILLIPS SCREW HANDLE Phillips screwdriver M4 X 30 mm M4 X 25 mm Not Included QTY 2...
- Page 9 Components - Key Diagram Model # AXCRAMH01-HIC...
- Page 10 Assembly Model # AXCRAMH01-HIC Step 1 1. Attach 4 Cam Lock Pins 2 into pre-drilled holes at the back of Drawer Front E . 2. Align Cam Lock Pins with Drawer Sides’s guide holes before attach the Cam Lock Pins into Drawer Sides FL , FR . 3.
- Page 11 Assembly Model # AXCRAMH01-HIC Step 3 1. Align Drawer Back G with Drawer Bottom H and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen Key 3 to tighten. Do not over tighten. Step 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 12 Assembly Model # AXCRAMH01-HIC Step 5 1. Attach 3 Cam Lock Pins 2 into pre-drilled holes at bottom of Top Shelf D . 2. Align Cam Lock Pins with guide holes on Divider J . 3. Insert 3 Cam Locks 2 into guide holes on Divider J . 4.
- Page 13 Assembly Model # AXCRAMH01-HIC Step 6 1. Attach 5 Cam Lock Pins 2 into pre-drilled holes on each Side AL , AR . 2. Align Cam Lock Pins with guide holes on Top Shelf D and Back Panel I . 3.
- Page 14 Assembly Model # AXCRAMH01-HIC Step 7 1. Insert 6 Allen Key Screws 1 into guide holes on Sides AL , AR into Top B ( 3 Screws / each Side ). 2. Use Allen Key 3 to tighten. Do not over tighten . 3.
- Page 15 Assembly Model # AXCRAMH01-HIC Step 8 1. Use a Phillips screwdriver to attach Handles 5 to Back I . Step 9 1. Insert assembled drawers into glides on assembled table.
