6.1 Installation directly into the heating or
Cooling medium
For new installations, the temperature sensors
must be installed directly immersed in accordance
with legal regulations. The Sensus MID EAS OEM
set with 3 special ball valves must be used for this,
order number:
- 68505064 (R 3/4" / 110) for Qp 0,6 – 1,5
The temperature sensors are installed directly in
the heating or cooling medium. The ball valve also
serves to shut off the pipe so that the temperature
sensor can be removed without interrupting the
operation of the plant.
For old systems
corresponding transitional regulations must be
observed.
EAS – PolluCom F/S C

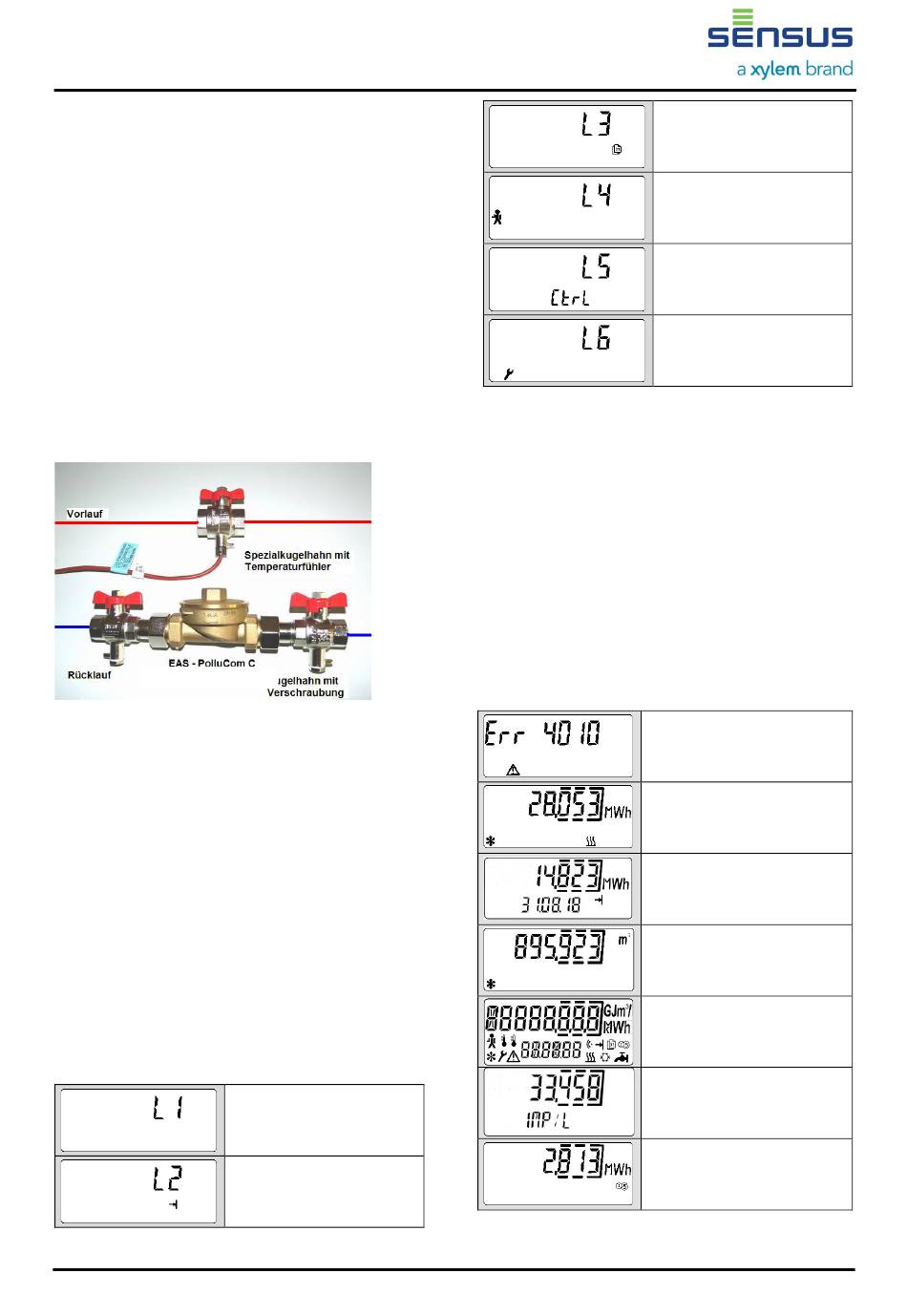

Fig. 4: Installation example MID EAS

7. Display Options

The numerous display options of our PolluCom
F/S C are divided into six levels. Depending on the
version of the delivered meter or the display
appearance, some menu items marked with an
asterisk (*) may be hidden. If required, the
appearance can be changed with the MiniCom 3
service software via the optical interface of the
meter. Under normal conditions, the display turns
on at 4-second intervals and shows the cumulative
heat consumption for one second. Press the red
key to activate the first display element of the user
menu (cumulative heat consumption). To select the
other five levels, press and hold the red button for
5 seconds. The selection menu L1 to L6 appears.
with thermowells, the
User Level
Effective date level *
Fig. 4: Selection of display levels
The above levels can be called up one after the
other by briefly pressing the red key. Once the
desired level is displayed, press and hold the red
button for 2 seconds to enter that level. The
individual display elements of the levels are called
up one after the other by briefly pressing the red
key. If the key is not pressed within 4 minutes, the
display returns to the home screen.
In all levels, a flashing impeller symbol (display
bottom left corner) indicates that volume pulses are
being received.
The number values shown are sample values.

7.1 User level (L 1)

®
Archive level *
Service Level
Tariff function level *
Parameter level *
Error message
(only in case of an error)
Cumulative heat and/or
cooling energy
Key date consumption incl.
associated date
Cumulative volume
Segment test
Pulse value of the
connected flow sensor *
Rate consumption 1 *
(if activated)
