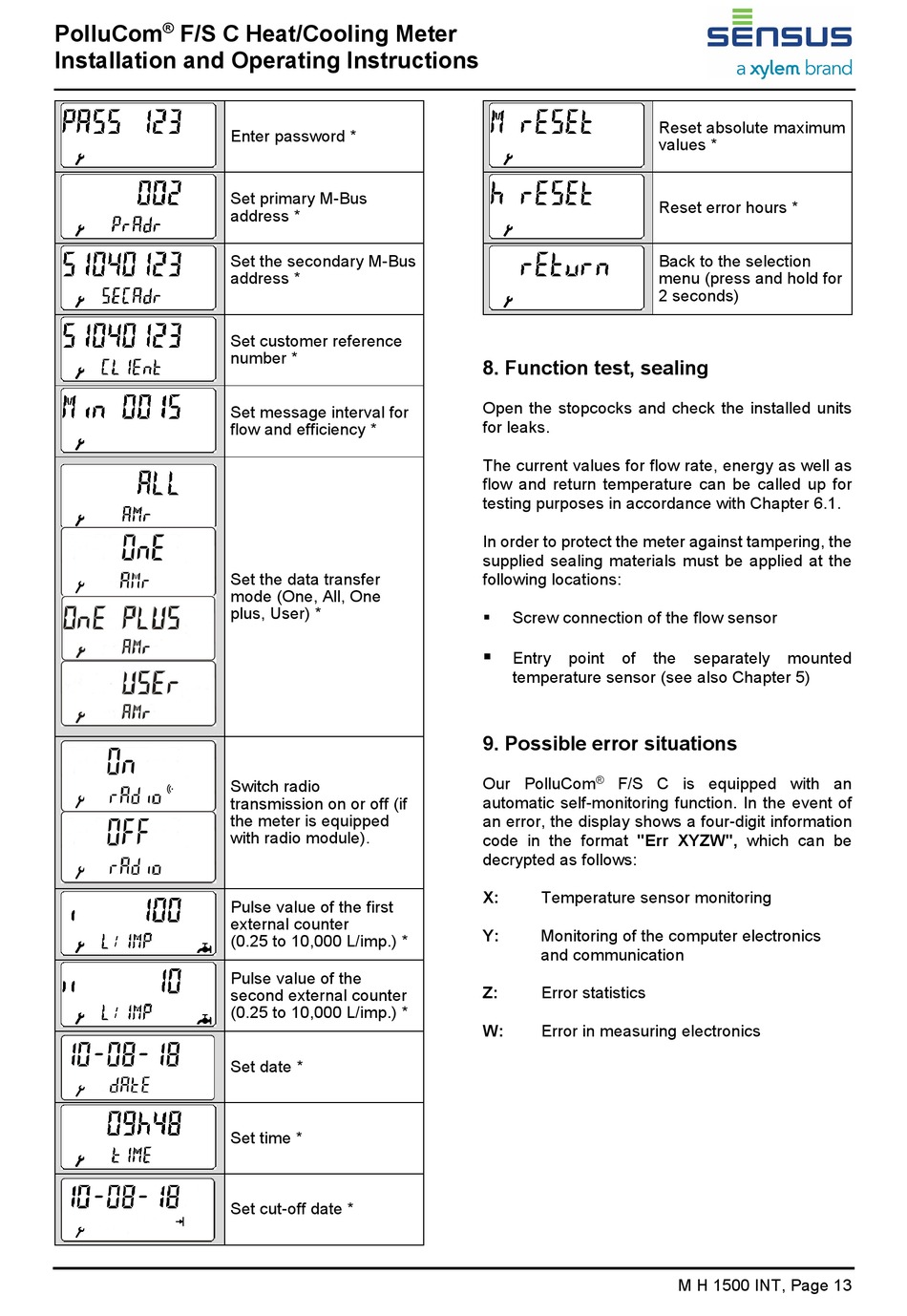

Function Test, Sealing; Possible Error Situations - Xylem Sensus PolluCom F/S C Installation And Operating Instructions Manual

PolluCom ® F/S C Heat/Cooling Meter
Installation and Operating Instructions
Enter password *
Set primary M-Bus
address *
Set the secondary M-Bus
address *
Set customer reference
number *
Set message interval for
flow and efficiency *
Set the data transfer
mode (One, All, One
plus, User) *
Switch radio
transmission on or off (if
the meter is equipped
with radio module).
Pulse value of the first
external counter
(0.25 to 10,000 L/imp.) *
Pulse value of the
second external counter
(0.25 to 10,000 L/imp.) *
Set date *
Set time *
Set cut-off date *

8. Function test, sealing

Open the stopcocks and check the installed units
for leaks.
The current values for flow rate, energy as well as
flow and return temperature can be called up for
testing purposes in accordance with Chapter 6.1.
In order to protect the meter against tampering, the
supplied sealing materials must be applied at the
following locations:
Screw connection of the flow sensor


Entry point of the
temperature sensor (see also Chapter 5)

9. Possible error situations

Our PolluCom F/S C is equipped with an
®
automatic self-monitoring function. In the event of
an error, the display shows a four-digit information
code in the format "Err XYZW", which can be
decrypted as follows:
X: Temperature sensor monitoring
Y: Monitoring of the computer electronics
and communication
Z: Error statistics
W: Error in measuring electronics
Reset absolute maximum
values *
Reset error hours *
Back to the selection
menu (press and hold for
2 seconds)
separately mounted
M H 1500 INT, Page 13
