Liberty 70.86

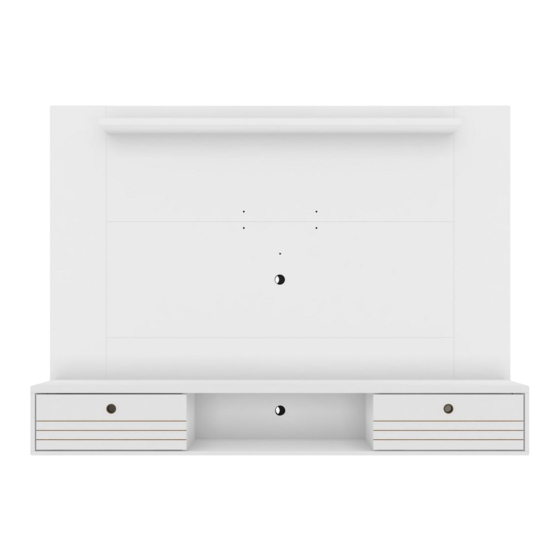

Floating Entertainment Center / Agencement Meuble TV Suspendu
Model # 235BMC6, 235BMC8, 235BMC9
8
lb
44
lb
22
lb
8
lb
8
8
lb
lb
The indicated values consider static weights and evenly distributed over the parts.
Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces.
Ed. 002, 2020/10 - Manhattan Comfort.
Advertisement
Related Manuals for Manhattan Comfort Liberty 235BMC6
Summary of Contents for Manhattan Comfort Liberty 235BMC6
- Page 1 Floating Entertainment Center / Agencement Meuble TV Suspendu Model # 235BMC6, 235BMC8, 235BMC9 The indicated values consider static weights and evenly distributed over the parts. Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces. Ed. 002, 2020/10 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE / INCLUS DANS LE PACKAGE REAR VIEW / VUE ARRIÈRE For fixing behind the panel. Pour fixation derrière les panneaux. For fixing on the wall. Pour fixation au mur. n.° ID Parts Identification (Description) / Identification des pièces (Description) Quantity / Quantité...
- Page 3 TOOLS NEEDED / OUTILS NÉCESSAIRES Manual screwdriver. Simple hammer. Level indicator. Electric drill and electric Tournevis manuel. Marteau simple. Indicateur de niveau. screwdriver with drill bit Ø1/2 inch and phillips tips. Perceuse électrique et tournevis électrique avec foret Ø1/2 pouce et pointes phillips.
- Page 4 STEP 1 / ÉTAPE 1 • Line the floor with the cardboard and the foam mantle of the packing to protect the parts and arrange the Panels (01), (02), (03) and (04) with the rear face upwards , correctly checking the position of each as holes and as the drawing. Tapisser le sol avec le carton et la feuille de mousse de l'emballage pour protéger les pièces et disposer les Panneaux (01), (02), (03) et (04) avec la face arrière...
- Page 5 STEP 4 / ÉTAPE 4 Adjustment bolt Fixer bolt Vis de réglage Vis de fixation DETAIL 3 DÉTAIL 3 • Connect the Side Panel (08) and the Partitions (09) to the Base (07) and the Middle Shelf (11) with dowels (G) and cam lock hardware (H + I). At the end, apply the adhesive covers (J).
- Page 6 STEP 6 / ÉTAPE 6 ATTENTION! Before installing the panel, check the conditions of the wall for strength to properly support and anchor the weight of the suspended furniture, including DETAIL 4 equipment and objects that may DÉTAIL 4 be fixed to the panel. Ø1/2 inch hole in the wall The Kap Toggle bushings (P) Trou Ø1/2 pouce dans le mur...
- Page 7 STEP 7 / ÉTAPE 7 Fixed on the wall. Fixé au mur. • With the Panel already assembled, fit the Bar (06) fixed behind the panel in the Bar (13) fixed on the wall. Fixed behind the panel. Avec le Panneau dejà Fixé...
