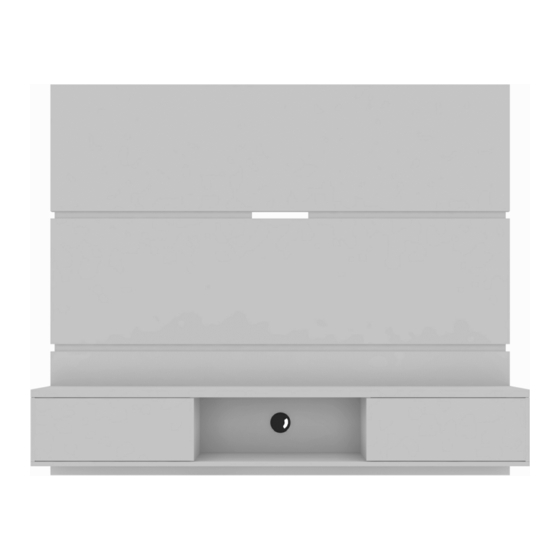

- Page 1 888-230-2225 help@manhattancomfort.com Vernon 62.99 Floating Entertainment Center Model # 236BMC12, 236BMC6, 236BMC9, 236BMC98 The indicated values consider static weights and evenly distributed over the parts. Ed. 001, 2020/05 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE REAR VIEW For fixing behind the panel For fixing behind the panel For fixing on the wall For fixing on the wall For fixing behind the panel n.° ID Parts Identification (Description) Quantity Lower Panel Middle Panel Upper Panel Rear Column Closing Plate...
- Page 3 TOOLS NEEDED Flat head and phillips Simple hammer. Level indicator. Electric drill and electric screwdriver with screwdriver. drill bit Ø1/2 inch and phillips tips. IMPORTANT! Two people are recommended to assemble and install this product. INCLUDED IN THE HARDWARE (main color) (secondary color)
- Page 4 STEP 1 Preparing the Doors (10): • Fix the hinges (K) on the Doors (10) with bolts 4.0 x 14mm (L), as shown in DETAIL 1. DETAIL 1 STEP 2 DETAIL 2 Fixer Adjustment Preparing/assembling the parts (07), (08), (09), (10) and (11): bolt bolt •...
- Page 5 STEP 4 Rear face • Fix the Rear Bars (06) behind the Panels (02) and (03), with bolts 3.5 x 25mm (C), in the positions shown in the drawing and with the beveled edge down and Rear face forward (for the panels). •...
- Page 6 STEP 6 • Install the set of parts (07), (08), (09), (10) and (11), assembled in the STEP 2, positioning it with dowels Ø6 x 30mm (G) and applying bolts 5.0x50mm (M) to fix the Lower Shelf (07) and the Middle Shelf (11) in the Lower Panel (01).
- Page 7 STEP 8 Fixed on the wall. • With the panel already assembled, fit the Rear Bars (06) fixed behind the panel in the Bars (12) fixed on the wall. • With the Panel already positioned and fitted on the Bars (12), mark the position of the four holes on the wall to apply the bushings (N), as indicated in the drawing.
