26
lb
11
lb
11
lb
The indicated values consider static weights and evenly distributed over the parts.
Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces.
11
lb
11
lb
Bradley 53.14

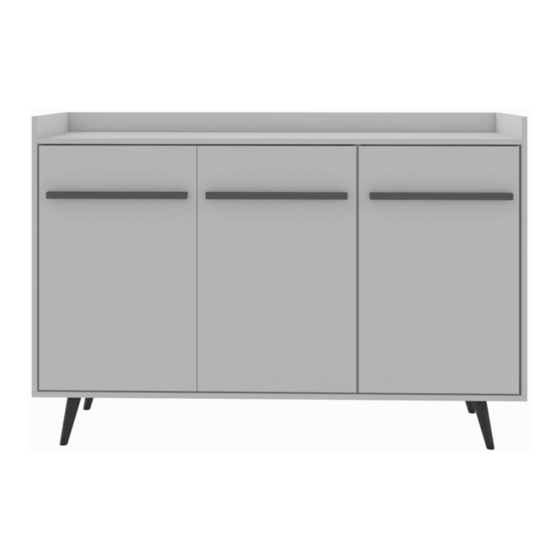

Buffet Stand / Armoire à buffet
Model # 230BMC1, 230BMC6, 230BMC8, 230BMC9
888-230-2225
help@manhattancomfort.com
Ed. 003, 2020/10 - Manhattan Comfort.
Advertisement
Table of Contents
Related Manuals for Manhattan Comfort Bradley 230BMC1
Summary of Contents for Manhattan Comfort Bradley 230BMC1

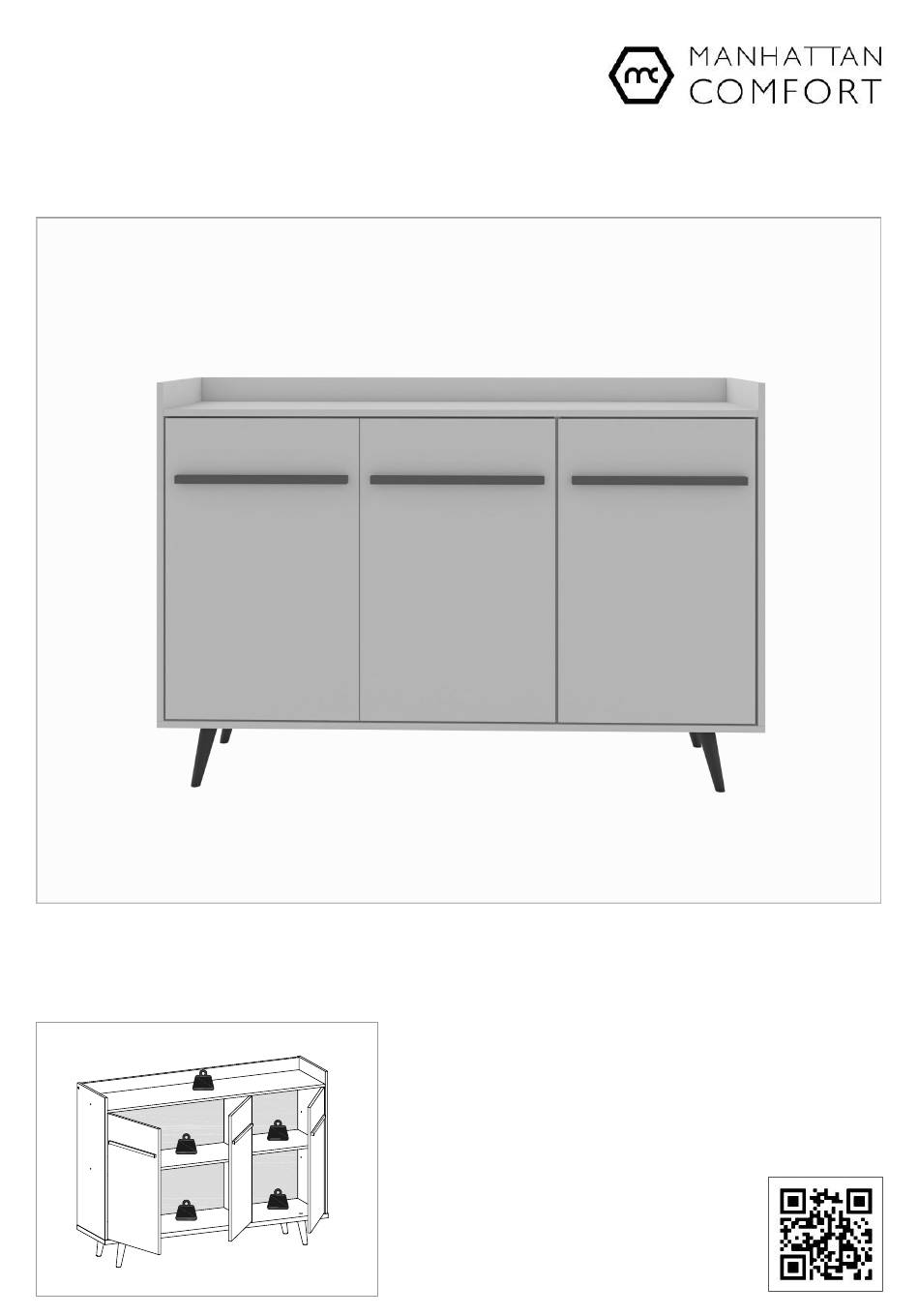

- Page 1 Buffet Stand / Armoire à buffet Model # 230BMC1, 230BMC6, 230BMC8, 230BMC9 The indicated values consider static weights and evenly distributed over the parts. Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces. Ed. 003, 2020/10 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE / INCLUS DANS LE PACKAGE REAR VIEW / VUE ARRIÈRE FRONT VIEW / VUE DE FACE Hole for anti-tipping bracket / Trou pour support anti-basculement n.° ID Parts identification (Description) / Identification des pièces (Description) Quantity / Quantité Top Panel / Panneau du haut Base / Base Right Side Panel / Panneau latéral droit...
- Page 3 TOOLS NEEDED / OUTILS NÉCESSAIRES Manual screwdriver. Simple hammer. Electric drill and screwdriver with drill bit Ø10mm and phillips tips. Tournevis manuel. Marteau simple. Perceuse et tournevis électrique avec foret Ø10mm et pointes phillips. IMPORTANT! It is recommended to fix the cabinet on the wall with the anti-tipping bracket, to prevent accidental falls and damage. IMPORTANT! Il est recommandé...
- Page 4 STEP 1 / ÉTAPE 1 • Connect the Partition (05) under the Top Panel (01) with dowels (A) and cam lock hardware (B + C). After the fixing, a pply the adhesive cover (D). Connectez la Cloison (05) sous le Panneau du haut (01) avec les chevilles (A) et du matériel de verrouillage à...
- Page 5 STEP 4 / ÉTAPE 4 Hole in the Upper Back Panel (14) for the anti-tipping bracket (S). See the STEP 8 and STEP 9. Trou dans le Panneau arrière supérieur (14) pour le support anti-basculement (S). Voir l'ÉTAPE 8 et l'ÉTAPE 9. •...
- Page 6 STEP 6 / ÉTAPE 6 Preparing the Doors: Attention! Prepare the Doors DETAIL 2 / DÉTAIL 2 DETAIL 3 / DÉTAIL 3 DETAIL 4 / DÉTAIL 4 (08) by fixing the handles (11) with the bolts (M) and the hinges with the bolts (L) so as to have: •...
- Page 7 STEP 8 / ÉTAPE 8 Fixing the cabinet on the wall with the anti-tipping bracket (S): / Fixation de l'armoire au mur avec le support anti-basculement (S): Underside ATTENTION! Before to make the installation, check the conditions of the wall to anchor Face inférieure the cabinet and the existence and position of hydraulic, electrical and gas pipes, avoiding damage to these structures when drilling the hole for applying the bushing (Q) and the...
