Summary of Contents for Manhattan Comfort Libra Long Floating 45.35 Entertainment Center

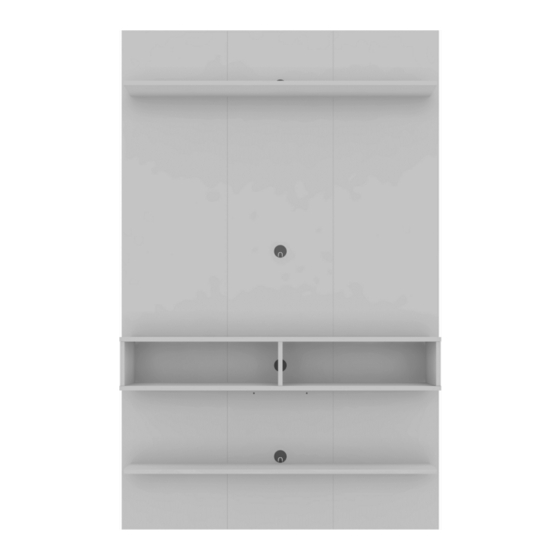

- Page 1 888-230-2225 help@manhattancomfort.com Libra Long Floating 45.35 Entertainment Center Model # 237BMC6, 237BMC8, 237BMC9, 237BMC97 The indicated values consider static weights and evenly distributed over the parts. Ed. 001, 2020/05 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE REAR VIEW For fixing behind the panel For fixing on the wall For fixing on the wall n.° ID Parts Identification (Description) Quantity Left and Right Panel Middle Panel Rear Column Upper Rear Bar Upper and Lower Shelf Middle Shelf Left and Right Side Panel Middle Partition...
- Page 3 TOOLS NEEDED Flat head and phillips Simple hammer. Level indicator. Electric drill and electric screwdriver with screwdriver. drill bit Ø1/2 inch and phillips tips. IMPORTANT! Two people are recommended to assemble and install this product. INCLUDED IN THE HARDWARE...
- Page 4 STEP 1 DETAIL 1 ATTENTION! APPLY GLUE. • Line the floor with the foam mantle of the packing to protect the parts and arrange the Panels (01) and (02) with the rear face upwards, correctly checking the position of each according the holes and as shown in the drawing.
- Page 5 STEP 4 ATENTION! DETAIL 4 Before installing the panel, check the conditions of the wall for strength to 1/2 inch hole properly support and anchor the in the wall weight of the suspended furniture, including equipment and objects Kap Toggle that may be fixed to the panel.
- Page 6 STEP 5 Fixed on the wall. Fixed behind the panel. • With the Panel already assembled, fit the Bar (04) fixed behind the panel in the Bar (10) fixed on the wall. Fixed on the wall. STEP 6 • At the end of the installation, apply the security bolts (E) into the two holes under the Middle Shelf (06), to fix the panel in the...
