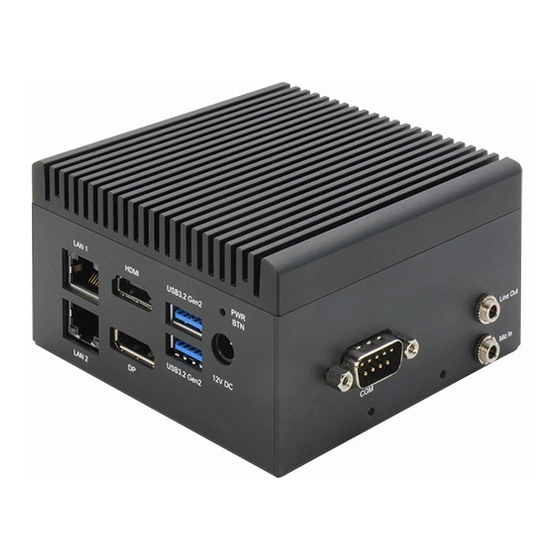

- Page 1 UP Squared V2 Edge Edge System UPS-EDGE-EHL01 User’s Manual 1 Last Updated: October 3, 2022...
- Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
- Page 3 Acknowledgement All other products’ name or trademarks are properties of their respective owners. Microsoft®, Windows® are registered trademarks of Microsoft Corp. ⚫ Intel®, Pentium®, and Celeron® are registered trademarks of Intel Corporation ⚫ Intel Atom™ is a trademark of Intel Corporation ⚫...
- Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity UP Squared V2 Edge ⚫ If any of these items are missing or damaged, please contact your distributor or sales representative immediately. Preface...
- Page 5 (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page at AAEON.com for the latest version of this document. Preface...
- Page 6 Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. Make sure the power source matches the power rating of the device. Position the power cord so that people cannot step on it.
- Page 7 If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii. Exposure to moisture Device is not working as expected or in a manner as described in this manual The device is dropped or damaged Any obvious signs of damage displayed on the device...
- Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
- Page 9 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON System QO4-381 Rev.A0 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 × ○ ○ ○ ○ ○ 及其电子组件 外部信号 × ○ ○ ○ ○ ○ 连接器及线材 ○...
- Page 10 China RoHS Requirement (EN) Hazardous and Toxic Materials List AAEON System QO4-381 Rev.A0 Hazardous or Toxic Materials or Elements Component Name PCB and Components Wires & Connectors for Ext.Connections Chassis CPU & RAM HDD Drive LCD Module Optical Drive Touch Control...
-
Page 11: Table Of Contents
Table of Contents Chapter 1 - Product Specifications..................1 Specifications ......................2 Chapter 2 – Hardware Information ..................4 Dimensions ....................... 5 Jumpers and Connectors ..................6 List of Jumpers and Connectors ................8 2.3.1 PWR Button (SW1) ..................9 2.3.2 BIOS Prog (CN1) ................... - Page 12 Windows Drivers Installation ................24 Unknown Device Troubleshooting ..............25 Appendix A – UP Framework SDK Installation ..............27 Introduction ......................28 Installation for Windows 10.................. 28 Installation for Windows IoT Core ............... 31 Appendix B – Cables and Connectors ................33 Cables and Connectors ..................
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications... -
Page 14: Specifications
Specifications System Intel® Celeron® N6210 Pentium® J6426 Processor SoC Memory Up to 16GB LPDDR4 Graphics Intel® UHD Graphics Storage Up to 64GB eMMC Ethernet Gigabit Ethernet (full speed) RJ-45 x 2 Expansion Slot M.2 2230 E-Key x 1 (PCIe [x2], USB 2.0 x 1) M.2 2280 M-Key x 1 (PCIe [x2]) SATA III x 1 Security... - Page 15 Power Supply Power requirement 12V DC-in, 5A Power supply type AT/ATX Power Consumption (Typical) 30~38W Mechanical Mounting VESA Mounting Dimensions (WxHxD) 3.74” x 3.74” x 2.16” (95mm x 95mm x 55mm) Net Weight 0.99 lb. (0.45 Kg) Gross Weight 1.32 lb. (0.6 Kg) Environmental Operating Temperature 32°F ~ 140°F (0°C ~ 60°) / 0.5 airflow...
-
Page 16: Chapter 2 - Hardware Information
Chapter 2 – Hardware Information Chapter 2... -
Page 17: Dimensions
Dimensions Chapter 2 – Hardware Information... -
Page 18: Jumpers And Connectors
Top: Note: eDP (CN2) and 40-Pin HAT (CN8) connectors are only present at board-level (AAEON P/N: UPS-EHL01 - UP Squared V2), and are not part of the edge system I/O (AAEON P/N: UPS-EDGE-EHL01 - UP Squared V2 Edge). Chapter 2 – Hardware Information... - Page 19 Bottom: Chapter 2 – Hardware Information...
-
Page 20: List Of Jumpers And Connectors
List of Jumpers and Connectors Please refer to the table below for all of the board’s connectors that you can configure for your application Label Function PWR button CN19 BIOS Prog USB Header M.2 2280 M-Key Power Input USB 3.0 DP/HDMI CN10 M.2 2230 E-Key... -
Page 21: Pwr Button (Sw1)
Label Function Auto-Power Button Selection 2.3.1 PWR Button (SW1) Signal Signal Signal PS_ON_SW 2.3.2 BIOS Prog (CN1) Signal Signal SPI_BIOS_MISO SPI_BIOS_CLK SPI_BIOS_CS0# +VCC_SPI SPI_BIOS_MOSI Chapter 2 – Hardware Information... -
Page 22: Fan (Cn19)
2.3.3 Fan (CN19) Signal Signal FAN_PWR (12V) 2.3.4 USB Header (CN3) Signal Signal USB2_DN6 USB2_DP6 USB2_DN7 USB2_DP7 UART1_RXD UART1_TXD Chapter 2 – Hardware Information... -
Page 23: 2280 M-Key (Cn4)
2.3.5 M.2 2280 M-Key (CN4) Signal Signal +3.3V_NGFF +3.3V_NGFF +3.3V_NGFF +3.3V_NGFF +3.3V_NGFF +3.3V_NGFF +3.3V_NGFF PCIE_P5_RX_DN PCIE_P5_RX_DP PCIE_P5_TX_DN PCIE_P5_TX_DP GPPC_E_4_SATA_DEVSLP_0 Chapter 2 – Hardware Information... - Page 24 Signal Signal SMB_CLK_1V8 PCIE_P4_RX_DN SMB_DATA_1V8 PCIE_P4_RX_DP PCIE_P4_TX_DN PCIE_P4_TX_DP BUF_PLT_RST# PCIE_CLK4_DN WAKE_N PCIE_CLK4_DP SUS_CLK_CPU +3P3V_NGFF +3P3V_NGFF +3P3V_NGFF Chapter 2 – Hardware Information...
-
Page 25: Power Input (Cn6)
2.3.6 Power Input (CN6) Signal Signal Signal VCC_12V 2.3.7 USB 3.0 (CN7) Signal Signal USB2_ DN1 USB2_ DP1 USB3_RXN_P1 USB3_RXP _P1 USB3_TXN _P1 Chapter 2 – Hardware Information... -
Page 26: Dp/Hdmi (Cn9)
Signal Signal USB3_TXP _P1 USB2_ DN2 USB2_ DP2 USB3_RXN _P2 USB3_RXP _P2 USB3_TXN_ P2 USB3_TXP_ P2 2.3.8 DP/HDMI (CN9) Signal Signal TXP_DP_0 TXN_DP_0 TXP_DP_1 TXN_DP_1 TXP_DP_2 TXN_DP_2 CLK_DP_D_P CLK_DP_D_N AUX_P AUX_N DP_HPD +3.3V TXP_HDMI_0 Chapter 2 – Hardware Information... -
Page 27: 2230 E-Key (Cn10)
Signal Signal TXN_HDMI_0 TXP_HDMI_1 TXN_HDMI_1 TXP_HDMI_2 TXN_HDMI_2 CLK_HDMI_DP CLK_HDMI_DN HDMI_CEC_O DDCCLK DDCDATA HDMI_HPD 2.3.9 M.2 2230 E-Key (CN10) Signal Signal +3P3VAUX_WIFI USB2_P4_DP +3P3VAUX_WIFI USB2_P4_DN Chapter 2 – Hardware Information... - Page 28 Signal Signal UART0_TXD UART0_CTS PCIE_P6_TXP UART0_RTS PCIE_P6_TXN PCIE_P6_RXP PCIE_P6_RXN PCIE_CLKP0 PCIE_CLKN0 M.2_BTWIFI_SUS_CLK PLT_RST# CLKREQ_N WAKE_N PCIE_P7_TXP PCIE_P7_TXN PCIE_P7_RXP PCIE_P7_RXN Chapter 2 – Hardware Information...
-
Page 29: Rs-232/422 (Cn11)
Signal Signal +3P3VAUX_WIFI +3P3VAUX_WIFI 2.3.10 RS-232/422 (CN11) Signal Signal RTS/TX+ RX/RX+ CTS/RX- TX/TX- Chapter 2 – Hardware Information... -
Page 30: Lan (Cn12)
2.3.11 LAN (CN12) Signal Signal LAN1_ACTLEDN LAN2_ACTLEDN LAN1_ACTLEDP LAN2_ACTLEDP LAN1_LINK1000# LAN2_LINK1000# LAN1_LINK100# LAN2_LINK100# LAN1_MDI0+ LAN2_MDI0+ LAN1_MDI0- LAN2_MDI0- LAN1_MDI1+ LAN2_MDI1+ LAN1_MDI1- LAN2_MDI1- LAN1_MDI2+ LAN2_MDI2+ LAN1_MDI2- LAN2_MDI2- LAN1_MDI3+ LAN2_MDI3+ LAN1_MDI3- LAN2_MDI3- LAN1_DAC LAN2_DAC R10A LAN1_GND R10B LAN2_GND Chapter 2 – Hardware Information... -
Page 31: Usb 3.0 (Cn13)
2.3.12 USB 3.0 (CN13) Signal Signal +V5P0_USB_1 USB2_DN3 USB2_DP3 USB3_RXN3 USB3_RXP3 USB3_TXN3 USB3_TXP3 Chapter 2 – Hardware Information... -
Page 32: Rtc (Cn14)
2.3.13 RTC (CN14) Signal Signal +V3P3A_RTC 2.3.14 SATA (CN15) Signal Signal SATA_TXP0 SATA_TXN0 SATA_RXN0 SATA_RXP0 Chapter 2 – Hardware Information... -
Page 33: Sata Power (Cn16)
2.3.15 SATA Power (CN16) Signal Signal +V5S 2.3.16 Front Panel (CN17) Signal Signal SYSRST# PS_ON_SW SYS_LED+ Chapter 2 – Hardware Information... -
Page 34: Audio (Cn18)
2.3.17 Audio (CN18) Signal Signal LOUT_R LOUT_L AUD_GND MIC_IN_JD AUDIO-JD MIC_L_CN 2.3.18 Auto-Power Button Selection (JP1) Signal Disable Enable (Default) Chapter 2 – Hardware Information... -
Page 35: Chapter 3 - Software Installation
Chapter 3 Chapter 3 – Software Installation... -
Page 36: Linux Setup
Linux Setup UPS-EDGE-EHL01 supports Linux operating systems (see Chapter 1 for specifications). For instructions on how to install a Linux OS onto your UPS-EDGE-EHL01, you can find several guides and tutorials in the wiki section of the UP Board website at https://up-board.org... -
Page 37: Unknown Device Troubleshooting
Unknown Device Troubleshooting After installing Windows drivers on UP Squared V2 Edge (UPS-EDGE-EHL01), you will see some unknown devices shown on device manager. Most unknown devices can be fixed by manually installing the driver from the Intel Serial IO 5.123.1.1023, except for Multimedia Audio Controller but here’s how to fix it:... - Page 38 VEN_AANT&DEV_1280: This is the ADC for Linux, there is no Windows driver. This can be ignored. Chapter 3 – Software Installation...
-
Page 39: Appendix A - Up Framework Sdk Installation
Appendix A Appendix A – UP Framework SDK Installation... -
Page 40: Introduction
Introduction This section provides instructions for the installation of the UP Framework SDK. Instructions are provided for Windows 10 and Windows IoT Core. You can download the latest version of UP Framework SDK from the UP community: https://downloads.up-community.org/download/up-sdk-for-windows-10-and-windows-iot/ A.2 Installation for Windows 10 Step 1 Locate the downloaded file UpFrameworkSetup.msi and run the installer. - Page 41 Step 2 Select the installation folder. Default destination path is C:\Program Files(x86)\AAEON\ You may also choose to install the UP Framework SDK for all users or only the current user. Press “Next” to continue installation. Step 3 Press “Next” to confirm the installation.
- Page 42 Step 4 Press “Close” to exit once setup is complete. Appendix A – UP Framework SDK Installation...
-
Page 43: A.3 Installation For Windows Iot Core
A.3 Installation for Windows IoT Core Before you begin, make sure you have downloaded and installed the latest version of the Windows IoT Core image from the UP community. Installation requires using a connected PC with the UP Framework SDK software downloaded and saved. - Page 44 Step 2 Download the UP Framework SDK to your PC and unzip the files. Open PowerShell as an Administrator. Run the command RemoteInstallation.ps1 to install the UP Framework SDK. Enter the IP address of the UP IoT Core device when prompted. Appendix A –...
-
Page 45: Appendix B - Cables And Connectors
Appendix B Appendix B – Cables and Connectors... -
Page 46: Cables And Connectors
Cables and Connectors This table provides detailed information about the cables and connectors used by the UP Squared V2 Edge (UPS-EDGE-EHL01). If you have any questions about the configuration of your board, please contact your AAEON sales representative. Mating Cable... - Page 47 Mating Cable Function Location Connector Mating Cable Description Description CONN PN (TF)Cable.to 6P 1.00mm housing.Power switch CN17 1655906033 Front Panel 170X000306 cable.SW w/green LED.20cm.FLYINGWAY.FWAA -1348 (TF)Cable.6P .Pitch=1.0mm.15 CN18 1655906033 Audio 170X000382 0mm.FLYINGWAY.FWAA-147 3.Audio Jack Cable LED1 1304300140 PWR LED LED2 1304300140 LED2 LED3...
