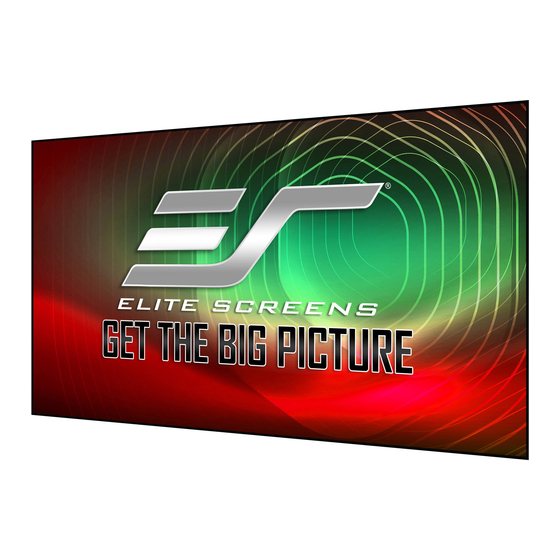

Elite Screens EDGE FREE Aeon StarBright 9 Series User Manual

Ceiling ambient light rejecting fixed frame screen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Aeon StarBright 9™ Series
Ceiling Ambient Light Rejecting EDGE FREE®
Fixed Frame Screen
(Splicing type)
Rev. V20211204DT
(DS0207)
Elite Screens

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDGE FREE Aeon StarBright 9 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens EDGE FREE Aeon StarBright 9 Series

Summary of Contents for Elite Screens EDGE FREE Aeon StarBright 9 Series

  • Page 1 User manual Aeon StarBright 9™ Series Ceiling Ambient Light Rejecting EDGE FREE® Fixed Frame Screen (Splicing type) Rev. V20211204DT (DS0207) Elite Screens...

  • Page 2: Cleaning And Maintenance

    4) Don’t use acetone, benzene, alcohol, and any other organic solvents to clean the screen material. Using such chemicals will permanently damage the screen. ※ Note: this product is only suitable for standard throw projectors Prepare tools before installation 1. Tape measure 2. Electric drill x1 Pencil Screwdriver ammer Elite Screens Rev. V05242022DT (DS0207)
  • Page 3 N. Gloves x 2 O. Screen material x 1 P. Corner cover x 4 Q. Adjustment bar x 6 R. Protection sheet x 1 S. Left/Right vertical edge trim x 2 T. Long Center joints x 4 Elite Screens Rev. V05242022DT (DS0207)

  • Page 4: Frame Assembly

    2. Insert the Left/Right vertical frames (C) into the Elbow joints (A). Then connect (Part 1 + Part 2) of the Horizontal frame (B), and assemble the frame as shown below. Top Horizontal frame (B) Push Push Left/Right vertical frame Bottom Horizontal frame Push Push Elite Screens Rev. V05242022DT (DS0207)

  • Page 5: Screen Material Installation

    (DO NOT press and crush the screen material). Two people should hold the other end (rolled up end) slowly rotate the screen a clockwise direction (Figure 2). Heavy weighted object or hand pressure Backside of the screen (Figure (Figure2) Elite Screens Rev. V05242022DT (DS0207)
  • Page 6 (1, 2) are used on the vertical edges of the screen material, and the short rods (3, 4, 5, 6) are used on the horizontal edges, as shown below. Long side of the frame Short side of Short side of the frame the frame Long side of the frame Fiberglass rod (L) Elite Screens Rev. V05242022DT (DS0207)
  • Page 7 ※ All four angles should ※ have the bars have right-angle edges adjustment bars with the beveled angle Adjustment bar installation The adjustment bar is installed into the groove along the fiberglass rod ※ Screen material Adjustment bar Elite Screens Rev. V05242022DT (DS0207)
  • Page 8 4-4→ 5-5 → 6-6 → 7-7. Failure to keep material aligned will cause it to get squeezed when installing the edge trim and result in damage. 0.11”- 0.14” Note: The distance between the adjustment bar and the edge of the frame is approximately 0.11-0.14” (3-4mm) after completely fastened. Elite Screens Rev. V05242022DT (DS0207)
  • Page 9 If there are visible waves on the screen surface, adjust the tightness of the screws to make the screen surface flat. Check the screen surface to make sure it is flat. DO NOT PROCEED TO THE EDGE TRIM INSTALALATION STEP IF THERE ARE ANY WAVES OR THE SCREEN SURFACE IS NOT FLAT. Elite Screens Rev. V05242022DT (DS0207)
  • Page 10 (D) on the frame, overlap in the frame angle seam, and align them with the hole on the frame leaving no gaps. Then fasten screw A then B. * Leave approximately a 2mm gap on screw A for the next step. Elite Screens Rev. V05242022DT (DS0207)

  • Page 11: Wall Bracket Installation

    Top of screen M5x8 screw 7” / 180 mm 78.9” / 2005 mm 28.9” / 734.5 mm Wall bracket (F) (The long groove facing up) 7” / 180 mm Sliding nut Wall bracket Bottom of screen Elite Screens Rev. V05242022DT (DS0207)

  • Page 12: Notice To Installer

    ※ Please make sure that points AB and CD are measured horizontally, and points AC and BD are measured vertically. 7” / 180 mm AB/CD Horizontal Bracket Distance: 78.9” / 2005 mm AC/BD Vertical Bracket Distance: 28.9” / 734.5 mm 7” / 180 mm Elite Screens Rev. V05242022DT (DS0207)
  • Page 13 Slide the screen left or right to assure it is fixed, then try to move the screen forward to confirm all four wall brackets on the screen are stable and properly secured to the screws. (END) For more information, technical support or your local Elite Screens contact, please visit www.elitescreens.com Elite Screens Rev. V05242022DT (DS0207)
